Produktnummer:
10170138
Hersteller:
LE70077-Leschhorn

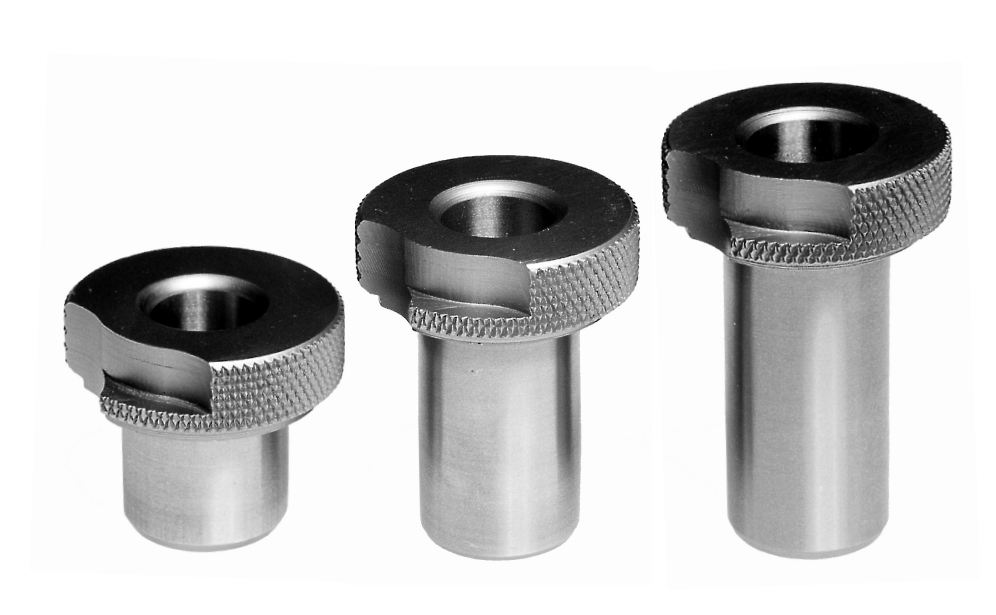

Leschhorn Steckbohrbuchsen DIN 173 K, Schnellwechselbuchse, rechts, d1 08,50; d2 15,00; l1 16,00; kurz
Form:
K
d1 F7:
8,50
d2 m6:
15,00
l1:
16,00
DIN 173 Teil 1, Steckbohrbuchsen, Form K und L, kurz, mittel oder lang
Beschreibung
Die Steckbohrbuchse Form K wird als Schnellwechselbuchse verwendet. Als Gegenlage für den Anschlagstift kommen Zylinderstifte oder Spiralspannstifte in Verbindung mit der Flachkopfschraube nach DIN 173 Teil 1 zur Anwendung.
Der Bajonett-Verschluss wird durch Spannbuchsen nach DIN 173 Teil 1 in Verbindung mit Zylinderschrauben nach DIN 912 gesichert.
E2 = Bohrungsabstand bei Verwendung von Zylinderstiften oder Spiralspannstiften.
Form K: für rechtsschneidende Werkzeuge
Form KL: für linksschneidende Werkzeuge
Form L: Auswechselbuchse
Zwischenmaße:
Nach DIN ist bis zum Innendurchmesser 15,0 mm eine Stufung von 0,1 mm vorgesehen. Über 15,0 mm beträgt die Stufung 0,5 mm.
Für abweichende Bohrungsdurchmesser berechnen wir folgende Zuschläge pro Abmessung:
1 - 2 Stück = 200%
3 - 5 Stück = 150%
6 - 9 Stück = 75%
10- 24 Stück = 20%
25- 49 Stück = 10%
50- 99 Stück = 5%
ab 100 Stück = 0%
Der Bajonett-Verschluss wird durch Spannbuchsen nach DIN 173 Teil 1 in Verbindung mit Zylinderschrauben nach DIN 912 gesichert.
E2 = Bohrungsabstand bei Verwendung von Zylinderstiften oder Spiralspannstiften.
Form K: für rechtsschneidende Werkzeuge
Form KL: für linksschneidende Werkzeuge
Form L: Auswechselbuchse
Zwischenmaße:
Nach DIN ist bis zum Innendurchmesser 15,0 mm eine Stufung von 0,1 mm vorgesehen. Über 15,0 mm beträgt die Stufung 0,5 mm.
Für abweichende Bohrungsdurchmesser berechnen wir folgende Zuschläge pro Abmessung:
1 - 2 Stück = 200%
3 - 5 Stück = 150%
6 - 9 Stück = 75%
10- 24 Stück = 20%
25- 49 Stück = 10%
50- 99 Stück = 5%
ab 100 Stück = 0%

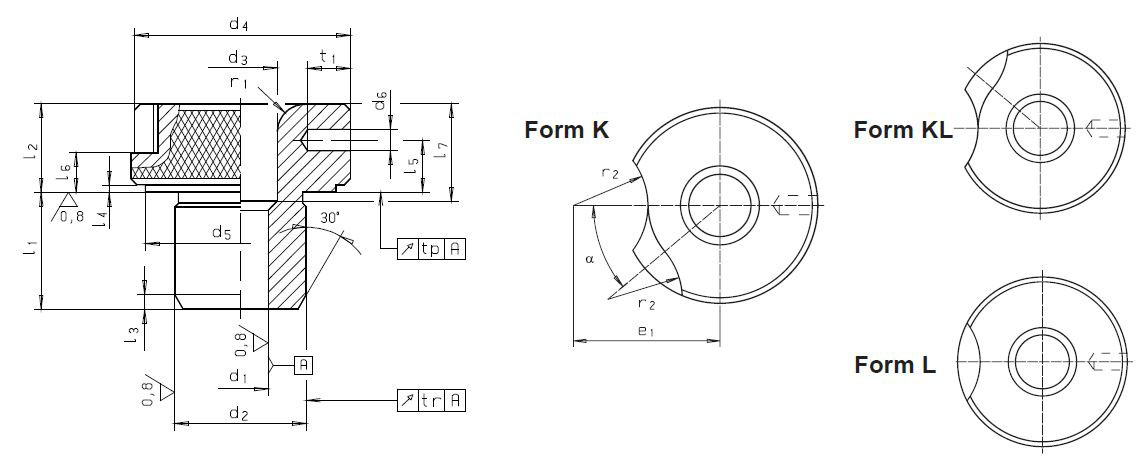

Eigenschaften
| A: | 50° |
|---|---|
| Ausführung: | kurz |
| Form: | K |
| d1 F7: | 8,50 |
| d2 m6: | 15,00 |
| d3: | 10,50 |
| d4: | 26,00 |
| d5: | 22,00 |
| d6: | 3,00 |
| e1: | 18,00 |
| l1: | 16,00 |
| l2 (mm): | 10,00 |
| l4: | 1,00 |
| l5 (mm): | 6,00 |
| l6 (mm): | 4,00 |
| l7: | 12,00 |
| r1: | 2,00 |
| r2: | 8,50 |
| t1: | 5,00 |
| tp: | 0,01 |
| tr: | 0,02 |
Dokumente
1
| Variante | Form | d1 F7 | d2 m6 | l1 | Preis |
|---|---|---|---|---|---|
|
10170964 (DIN173-L 06.10X12) |
L | 6,10 | 12,00 | 12,00 | ab 44,98 € |
|
10170944 (DIN173-L 04.10X12) |
L | 4,10 | 10,00 | 12,00 | ab 75,68 € |
|
10170945 (DIN173-L 04.20X12) |
L | 4,20 | 10,00 | 12,00 | ab 75,68 € |
|
10170946 (DIN173-L 04.30X12) |
L | 4,30 | 10,00 | 12,00 | ab 75,68 € |
|
10170947 (DIN173-L 04.40X12) |
L | 4,40 | 10,00 | 12,00 | ab 75,68 € |
|
10170948 (DIN173-L 04.50X12) |
L | 4,50 | 10,00 | 12,00 | ab 75,68 € |
|
10170949 (DIN173-L 04.60X12) |
L | 4,60 | 10,00 | 12,00 | ab 75,68 € |
|
10170950 (DIN173-L 04.70X12) |
L | 4,70 | 10,00 | 12,00 | ab 75,68 € |
|
10170951 (DIN173-L 04.80X12) |
L | 4,80 | 10,00 | 12,00 | ab 75,68 € |
|
10170952 (DIN173-L 04.90X12) |
L | 4,90 | 10,00 | 12,00 | ab 75,68 € |
|
10170953 (DIN173-L 05.00X12) |
L | 5,00 | 10,00 | 12,00 | ab 75,68 € |
|
10170954 (DIN173-L 05.10X12) |
L | 5,10 | 10,00 | 12,00 | ab 75,68 € |
|
10170955 (DIN173-L 05.20X12) |
L | 5,20 | 10,00 | 12,00 | ab 75,68 € |
|
10170956 (DIN173-L 05.30X12) |
L | 5,30 | 10,00 | 12,00 | ab 75,68 € |
|
10170957 (DIN173-L 05.40X12) |
L | 5,40 | 10,00 | 12,00 | ab 75,68 € |
|
10170958 (DIN173-L 05.50X12) |
L | 5,50 | 10,00 | 12,00 | ab 75,68 € |
|
10170959 (DIN173-L 05.60X12) |
L | 5,60 | 10,00 | 12,00 | ab 75,68 € |
|
10170960 (DIN173-L 05.70X12) |
L | 5,70 | 10,00 | 12,00 | ab 75,68 € |
|
10170961 (DIN173-L 05.80X12) |
L | 5,80 | 10,00 | 12,00 | ab 75,68 € |
|
10170962 (DIN173-L 05.90X12) |
L | 5,90 | 10,00 | 12,00 | ab 75,68 € |
|
10170963 (DIN173-L 06.00X12) |
L | 6,00 | 10,00 | 12,00 | ab 75,68 € |
|
10170927 (DIN173-L 02.40X10) |
L | 2,40 | 8,00 | 10,00 | ab 77,53 € |
|
10170928 (DIN173-L 02.50X10) |
L | 2,50 | 8,00 | 10,00 | ab 77,53 € |
|
10170929 (DIN173-L 02.60X10) |
L | 2,60 | 8,00 | 10,00 | ab 77,53 € |
|
10170930 (DIN173-L 02.70X10) |
L | 2,70 | 8,00 | 10,00 | ab 77,53 € |
|
10170931 (DIN173-L 02.80X10) |
L | 2,80 | 8,00 | 10,00 | ab 77,53 € |
|
10170932 (DIN173-L 02.90X10) |
L | 2,90 | 8,00 | 10,00 | ab 77,53 € |
|
10170933 (DIN173-L 03.00X10) |
L | 3,00 | 8,00 | 10,00 | ab 77,53 € |
|
10170934 (DIN173-L 03.10X10) |
L | 3,10 | 8,00 | 10,00 | ab 77,53 € |
|
10170935 (DIN173-L 03.20X10) |
L | 3,20 | 8,00 | 10,00 | ab 77,53 € |
|
10170936 (DIN173-L 03.30X10) |
L | 3,30 | 8,00 | 10,00 | ab 77,53 € |
|
10170937 (DIN173-L 03.40X10) |
L | 3,40 | 8,00 | 10,00 | ab 77,53 € |
|
10170938 (DIN173-L 03.50X10) |
L | 3,50 | 8,00 | 10,00 | ab 77,53 € |
|
10170939 (DIN173-L 03.60X10) |
L | 3,60 | 8,00 | 10,00 | ab 77,53 € |
|
10170940 (DIN173-L 03.70X10) |
L | 3,70 | 8,00 | 10,00 | ab 77,53 € |
|
10170941 (DIN173-L 03.80X10) |
L | 3,80 | 8,00 | 10,00 | ab 77,53 € |
|
10170942 (DIN173-L 03.90X10) |
L | 3,90 | 8,00 | 10,00 | ab 77,53 € |
|
10170943 (DIN173-L 04.00X10) |
L | 4,00 | 8,00 | 10,00 | ab 77,53 € |
|
10170965 (DIN173-L 06.20X12) |
L | 6,20 | 12,00 | 12,00 | ab 79,81 € |
|
10170966 (DIN173-L 06.30X12) |
L | 6,30 | 12,00 | 12,00 | ab 79,81 € |
|
10170967 (DIN173-L 06.40X12) |
L | 6,40 | 12,00 | 12,00 | ab 79,81 € |
|
10170968 (DIN173-L 06.50X12) |
L | 6,50 | 12,00 | 12,00 | ab 79,81 € |
|
10170969 (DIN173-L 06.60X12) |
L | 6,60 | 12,00 | 12,00 | ab 79,81 € |
|
10170970 (DIN173-L 06.70X12) |
L | 6,70 | 12,00 | 12,00 | ab 79,81 € |
|
10170971 (DIN173-L 06.80X12) |
L | 6,80 | 12,00 | 12,00 | ab 79,81 € |
|
10170972 (DIN173-L 06.90X12) |
L | 6,90 | 12,00 | 12,00 | ab 79,81 € |
|
10170973 (DIN173-L 07.00X12) |
L | 7,00 | 12,00 | 12,00 | ab 79,81 € |
|
10170974 (DIN173-L 07.10X12) |
L | 7,10 | 12,00 | 12,00 | ab 79,81 € |
|
10170975 (DIN173-L 07.20X12) |
L | 7,20 | 12,00 | 12,00 | ab 79,81 € |
|
10170976 (DIN173-L 07.30X12) |
L | 7,30 | 12,00 | 12,00 | ab 79,81 € |
|
10170977 (DIN173-L 07.40X12) |
L | 7,40 | 12,00 | 12,00 | ab 79,81 € |
|
10170978 (DIN173-L 07.50X12) |
L | 7,50 | 12,00 | 12,00 | ab 79,81 € |
|
10170979 (DIN173-L 07.60X12) |
L | 7,60 | 12,00 | 12,00 | ab 79,81 € |
|
10170980 (DIN173-L 07.70X12) |
L | 7,70 | 12,00 | 12,00 | ab 79,81 € |
|
10170981 (DIN173-L 07.80X12) |
L | 7,80 | 12,00 | 12,00 | ab 79,81 € |
|
10170982 (DIN173-L 07.90X12) |
L | 7,90 | 12,00 | 12,00 | ab 79,81 € |
|
10170983 (DIN173-L 08.00X12) |
L | 8,00 | 12,00 | 12,00 | ab 79,81 € |
|
10170094 (DIN173-K 04.10X12) |
K | 4,10 | 10,00 | 12,00 | ab 82,85 € |
|
10170095 (DIN173-K 04.20X12) |
K | 4,20 | 10,00 | 12,00 | ab 82,85 € |
|
10170096 (DIN173-K 04.30X12) |
K | 4,30 | 10,00 | 12,00 | ab 82,85 € |
|
10170097 (DIN173-K 04.40X12) |
K | 4,40 | 10,00 | 12,00 | ab 82,85 € |
|
10170098 (DIN173-K 04.50X12) |
K | 4,50 | 10,00 | 12,00 | ab 82,85 € |
|
10170099 (DIN173-K 04.60X12) |
K | 4,60 | 10,00 | 12,00 | ab 82,85 € |
|
10170100 (DIN173-K 04.70X12) |
K | 4,70 | 10,00 | 12,00 | ab 82,85 € |
|
10170101 (DIN173-K 04.80X12) |
K | 4,80 | 10,00 | 12,00 | ab 82,85 € |
|
10170102 (DIN173-K 04.90X12) |
K | 4,90 | 10,00 | 12,00 | ab 82,85 € |
|
10170103 (DIN173-K 05.00X12) |
K | 5,00 | 10,00 | 12,00 | ab 82,85 € |
|
10170104 (DIN173-K 05.10X12) |
K | 5,10 | 10,00 | 12,00 | ab 82,85 € |
|
10170105 (DIN173-K 05.20X12) |
K | 5,20 | 10,00 | 12,00 | ab 82,85 € |
|
10170106 (DIN173-K 05.30X12) |
K | 5,30 | 10,00 | 12,00 | ab 82,85 € |
|
10170107 (DIN173-K 05.40X12) |
K | 5,40 | 10,00 | 12,00 | ab 82,85 € |
|
10170108 (DIN173-K 05.50X12) |
K | 5,50 | 10,00 | 12,00 | ab 82,85 € |
|
10170109 (DIN173-K 05.60X12) |
K | 5,60 | 10,00 | 12,00 | ab 82,85 € |
|
10170110 (DIN173-K 05.70X12) |
K | 5,70 | 10,00 | 12,00 | ab 82,85 € |
|
10170111 (DIN173-K 05.80X12) |
K | 5,80 | 10,00 | 12,00 | ab 82,85 € |
|
10170112 (DIN173-K 05.90X12) |
K | 5,90 | 10,00 | 12,00 | ab 82,85 € |
|
10170113 (DIN173-K 06.00X12) |
K | 6,00 | 10,00 | 12,00 | ab 82,85 € |
|
10170077 (DIN173-K 02.40X10) |
K | 2,40 | 8,00 | 10,00 | ab 83,84 € |
|
10170078 (DIN173-K 02.50X10) |
K | 2,50 | 8,00 | 10,00 | ab 83,84 € |
|
10170079 (DIN173-K 02.60X10) |
K | 2,60 | 8,00 | 10,00 | ab 83,84 € |
|
10170080 (DIN173-K 02.70X10) |
K | 2,70 | 8,00 | 10,00 | ab 83,84 € |
|
10170081 (DIN173-K 02.80X10) |
K | 2,80 | 8,00 | 10,00 | ab 83,84 € |
|
10170082 (DIN173-K 02.90X10) |
K | 2,90 | 8,00 | 10,00 | ab 83,84 € |
|
10170083 (DIN173-K 03.00X10) |
K | 3,00 | 8,00 | 10,00 | ab 83,84 € |
|
10170084 (DIN173-K 03.10X10) |
K | 3,10 | 8,00 | 10,00 | ab 83,84 € |
|
10170085 (DIN173-K 03.20X10) |
K | 3,20 | 8,00 | 10,00 | ab 83,84 € |
|
10170086 (DIN173-K 03.30X10) |
K | 3,30 | 8,00 | 10,00 | ab 83,84 € |
|
10170087 (DIN173-K 03.40X10) |
K | 3,40 | 8,00 | 10,00 | ab 83,84 € |
|
10170088 (DIN173-K 03.50X10) |
K | 3,50 | 8,00 | 10,00 | ab 83,84 € |
|
10170089 (DIN173-K 03.60X10) |
K | 3,60 | 8,00 | 10,00 | ab 83,84 € |
|
10170090 (DIN173-K 03.70X10) |
K | 3,70 | 8,00 | 10,00 | ab 83,84 € |
|
10170091 (DIN173-K 03.80X10) |
K | 3,80 | 8,00 | 10,00 | ab 83,84 € |
|
10170092 (DIN173-K 03.90X10) |
K | 3,90 | 8,00 | 10,00 | ab 83,84 € |
|
10170093 (DIN173-K 04.00X10) |
K | 4,00 | 8,00 | 10,00 | ab 83,84 € |
|
10170114 (DIN173-K 06.10X12) |
K | 6,10 | 12,00 | 12,00 | ab 85,96 € |
|
10170115 (DIN173-K 06.20X12) |
K | 6,20 | 12,00 | 12,00 | ab 85,96 € |
|
10170116 (DIN173-K 06.30X12) |
K | 6,30 | 12,00 | 12,00 | ab 85,96 € |
|
10170117 (DIN173-K 06.40X12) |
K | 6,40 | 12,00 | 12,00 | ab 85,96 € |
|
10170118 (DIN173-K 06.50X12) |
K | 6,50 | 12,00 | 12,00 | ab 85,96 € |
|
10170119 (DIN173-K 06.60X12) |
K | 6,60 | 12,00 | 12,00 | ab 85,96 € |
|
10170120 (DIN173-K 06.70X12) |
K | 6,70 | 12,00 | 12,00 | ab 85,96 € |
|
10170121 (DIN173-K 06.80X12) |
K | 6,80 | 12,00 | 12,00 | ab 85,96 € |
|
10170122 (DIN173-K 06.90X12) |
K | 6,90 | 12,00 | 12,00 | ab 85,96 € |
|
10170123 (DIN173-K 07.00X12) |
K | 7,00 | 12,00 | 12,00 | ab 85,96 € |
|
10170124 (DIN173-K 07.10X12) |
K | 7,10 | 12,00 | 12,00 | ab 85,96 € |
|
10170125 (DIN173-K 07.20X12) |
K | 7,20 | 12,00 | 12,00 | ab 85,96 € |
|
10170126 (DIN173-K 07.30X12) |
K | 7,30 | 12,00 | 12,00 | ab 85,96 € |
|
10170127 (DIN173-K 07.40X12) |
K | 7,40 | 12,00 | 12,00 | ab 85,96 € |
|
10170128 (DIN173-K 07.50X12) |
K | 7,50 | 12,00 | 12,00 | ab 85,96 € |
|
10170129 (DIN173-K 07.60X12) |
K | 7,60 | 12,00 | 12,00 | ab 85,96 € |
|
10170130 (DIN173-K 07.70X12) |
K | 7,70 | 12,00 | 12,00 | ab 85,96 € |
|
10170131 (DIN173-K 07.80X12) |
K | 7,80 | 12,00 | 12,00 | ab 85,96 € |
|
10170132 (DIN173-K 07.90X12) |
K | 7,90 | 12,00 | 12,00 | ab 85,96 € |
|
10170133 (DIN173-K 08.00X12) |
K | 8,00 | 12,00 | 12,00 | ab 85,96 € |
|
10170984 (DIN173-L 08.10X16) |
L | 8,10 | 15,00 | 16,00 | ab 86,81 € |
|
10170985 (DIN173-L 08.20X16) |
L | 8,20 | 15,00 | 16,00 | ab 86,81 € |
|
10170986 (DIN173-L 08.30X16) |
L | 8,30 | 15,00 | 16,00 | ab 86,81 € |
|
10170987 (DIN173-L 08.40X16) |
L | 8,40 | 15,00 | 16,00 | ab 86,81 € |
|
10170988 (DIN173-L 08.50X16) |
L | 8,50 | 15,00 | 16,00 | ab 86,81 € |
|
10170989 (DIN173-L 08.60X16) |
L | 8,60 | 15,00 | 16,00 | ab 86,81 € |
|
10170990 (DIN173-L 08.70X16) |
L | 8,70 | 15,00 | 16,00 | ab 86,81 € |
|
10170991 (DIN173-L 08.80X16) |
L | 8,80 | 15,00 | 16,00 | ab 86,81 € |
|
10170992 (DIN173-L 08.90X16) |
L | 8,90 | 15,00 | 16,00 | ab 86,81 € |
|
10170993 (DIN173-L 09.00X16) |
L | 9,00 | 15,00 | 16,00 | ab 86,81 € |
|
10170994 (DIN173-L 09.10X16) |
L | 9,10 | 15,00 | 16,00 | ab 86,81 € |
|
10170995 (DIN173-L 09.20X16) |
L | 9,20 | 15,00 | 16,00 | ab 86,81 € |
|
10170996 (DIN173-L 09.30X16) |
L | 9,30 | 15,00 | 16,00 | ab 86,81 € |
|
10170997 (DIN173-L 09.40X16) |
L | 9,40 | 15,00 | 16,00 | ab 86,81 € |
|
10170998 (DIN173-L 09.50X16) |
L | 9,50 | 15,00 | 16,00 | ab 86,81 € |
|
10170999 (DIN173-L 09.60X16) |
L | 9,60 | 15,00 | 16,00 | ab 86,81 € |
|
10171000 (DIN173-L 09.70X16) |
L | 9,70 | 15,00 | 16,00 | ab 86,81 € |
|
10171001 (DIN173-L 09.80X16) |
L | 9,80 | 15,00 | 16,00 | ab 86,81 € |
|
10171002 (DIN173-L 09.90X16) |
L | 9,90 | 15,00 | 16,00 | ab 86,81 € |
|
10171003 (DIN173-L 10.00X16) |
L | 10,00 | 15,00 | 16,00 | ab 86,81 € |
|
10171233 (DIN173-L 04.10X20) |
L | 4,10 | 10,00 | 20,00 | ab 89,97 € |
|
10171234 (DIN173-L 04.20X20) |
L | 4,20 | 10,00 | 20,00 | ab 89,97 € |
|
10171235 (DIN173-L 04.30X20) |
L | 4,30 | 10,00 | 20,00 | ab 89,97 € |
|
10171236 (DIN173-L 04.40X20) |
L | 4,40 | 10,00 | 20,00 | ab 89,97 € |
|
10171237 (DIN173-L 04.50X20) |
L | 4,50 | 10,00 | 20,00 | ab 89,97 € |
|
10171238 (DIN173-L 04.60X20) |
L | 4,60 | 10,00 | 20,00 | ab 89,97 € |
|
10171239 (DIN173-L 04.70X20) |
L | 4,70 | 10,00 | 20,00 | ab 89,97 € |
|
10171240 (DIN173-L 04.80X20) |
L | 4,80 | 10,00 | 20,00 | ab 89,97 € |
|
10171241 (DIN173-L 04.90X20) |
L | 4,90 | 10,00 | 20,00 | ab 89,97 € |
|
10171242 (DIN173-L 05.00X20) |
L | 5,00 | 10,00 | 20,00 | ab 89,97 € |
|
10171243 (DIN173-L 05.10X20) |
L | 5,10 | 10,00 | 20,00 | ab 89,97 € |
|
10171244 (DIN173-L 05.20X20) |
L | 5,20 | 10,00 | 20,00 | ab 89,97 € |
|
10171245 (DIN173-L 05.30X20) |
L | 5,30 | 10,00 | 20,00 | ab 89,97 € |
|
10171246 (DIN173-L 05.40X20) |
L | 5,40 | 10,00 | 20,00 | ab 89,97 € |
|
10171247 (DIN173-L 05.50X20) |
L | 5,50 | 10,00 | 20,00 | ab 89,97 € |
|
10171248 (DIN173-L 05.60X20) |
L | 5,60 | 10,00 | 20,00 | ab 89,97 € |
|
10171249 (DIN173-L 05.70X20) |
L | 5,70 | 10,00 | 20,00 | ab 89,97 € |
|
10171250 (DIN173-L 05.80X20) |
L | 5,80 | 10,00 | 20,00 | ab 89,97 € |
|
10171251 (DIN173-L 05.90X20) |
L | 5,90 | 10,00 | 20,00 | ab 89,97 € |
|
10171252 (DIN173-L 06.00X20) |
L | 6,00 | 10,00 | 20,00 | ab 89,97 € |
|
10170134 (DIN173-K 08.10X16) |
K | 8,10 | 15,00 | 16,00 | ab 92,62 € |
|
10170135 (DIN173-K 08.20X16) |
K | 8,20 | 15,00 | 16,00 | ab 92,62 € |
|
10170136 (DIN173-K 08.30X16) |
K | 8,30 | 15,00 | 16,00 | ab 92,62 € |
|
10170137 (DIN173-K 08.40X16) |
K | 8,40 | 15,00 | 16,00 | ab 92,62 € |
|
10170138 (DIN173-K 08.50X16) |
K | 8,50 | 15,00 | 16,00 | ab 92,62 € |
|
10170139 (DIN173-K 08.60X16) |
K | 8,60 | 15,00 | 16,00 | ab 92,62 € |
|
10170140 (DIN173-K 08.70X16) |
K | 8,70 | 15,00 | 16,00 | ab 92,62 € |
|
10170141 (DIN173-K 08.80X16) |
K | 8,80 | 15,00 | 16,00 | ab 92,62 € |
|
10170142 (DIN173-K 08.90X16) |
K | 8,90 | 15,00 | 16,00 | ab 92,62 € |
|
10170143 (DIN173-K 09.00X16) |
K | 9,00 | 15,00 | 16,00 | ab 92,62 € |
|
10170144 (DIN173-K 09.10X16) |
K | 9,10 | 15,00 | 16,00 | ab 92,62 € |
|
10170145 (DIN173-K 09.20X16) |
K | 9,20 | 15,00 | 16,00 | ab 92,62 € |
|
10170146 (DIN173-K 09.30X16) |
K | 9,30 | 15,00 | 16,00 | ab 92,62 € |
|
10170147 (DIN173-K 09.40X16) |
K | 9,40 | 15,00 | 16,00 | ab 92,62 € |
|
10170148 (DIN173-K 09.50X16) |
K | 9,50 | 15,00 | 16,00 | ab 92,62 € |
|
10170149 (DIN173-K 09.60X16) |
K | 9,60 | 15,00 | 16,00 | ab 92,62 € |
|
10170150 (DIN173-K 09.70X16) |
K | 9,70 | 15,00 | 16,00 | ab 92,62 € |
|
10170151 (DIN173-K 09.80X16) |
K | 9,80 | 15,00 | 16,00 | ab 92,62 € |
|
10170152 (DIN173-K 09.90X16) |
K | 9,90 | 15,00 | 16,00 | ab 92,62 € |
|
10170153 (DIN173-K 10.00X16) |
K | 10,00 | 15,00 | 16,00 | ab 92,62 € |
|
10171064 (DIN173-L 17.00X20) |
L | 17,00 | 26,00 | 20,00 | ab 94,09 € |
|
10170383 (DIN173-K 04.10X20) |
K | 4,10 | 10,00 | 20,00 | ab 95,49 € |
|
10170384 (DIN173-K 04.20X20) |
K | 4,20 | 10,00 | 20,00 | ab 95,49 € |
|
10170385 (DIN173-K 04.30X20) |
K | 4,30 | 10,00 | 20,00 | ab 95,49 € |
|
10170386 (DIN173-K 04.40X20) |
K | 4,40 | 10,00 | 20,00 | ab 95,49 € |
|
10170387 (DIN173-K 04.50X20) |
K | 4,50 | 10,00 | 20,00 | ab 95,49 € |
|
10170388 (DIN173-K 04.60X20) |
K | 4,60 | 10,00 | 20,00 | ab 95,49 € |
|
10170389 (DIN173-K 04.70X20) |
K | 4,70 | 10,00 | 20,00 | ab 95,49 € |
|
10170390 (DIN173-K 04.80X20) |
K | 4,80 | 10,00 | 20,00 | ab 95,49 € |
|
10170391 (DIN173-K 04.90X20) |
K | 4,90 | 10,00 | 20,00 | ab 95,49 € |
|
10170392 (DIN173-K 05.00X20) |
K | 5,00 | 10,00 | 20,00 | ab 95,49 € |
|
10170393 (DIN173-K 05.10X20) |
K | 5,10 | 10,00 | 20,00 | ab 95,49 € |
|
10170394 (DIN173-K 05.20X20) |
K | 5,20 | 10,00 | 20,00 | ab 95,49 € |
|
10170395 (DIN173-K 05.30X20) |
K | 5,30 | 10,00 | 20,00 | ab 95,49 € |
|
10170396 (DIN173-K 05.40X20) |
K | 5,40 | 10,00 | 20,00 | ab 95,49 € |
|
10170397 (DIN173-K 05.50X20) |
K | 5,50 | 10,00 | 20,00 | ab 95,49 € |
|
10170398 (DIN173-K 05.60X20) |
K | 5,60 | 10,00 | 20,00 | ab 95,49 € |
|
10170399 (DIN173-K 05.70X20) |
K | 5,70 | 10,00 | 20,00 | ab 95,49 € |
|
10170400 (DIN173-K 05.80X20) |
K | 5,80 | 10,00 | 20,00 | ab 95,49 € |
|
10170401 (DIN173-K 05.90X20) |
K | 5,90 | 10,00 | 20,00 | ab 95,49 € |
|
10170402 (DIN173-K 06.00X20) |
K | 6,00 | 10,00 | 20,00 | ab 95,49 € |
|
10171253 (DIN173-L 06.10X20) |
L | 6,10 | 12,00 | 20,00 | ab 96,22 € |
|
10171254 (DIN173-L 06.20X20) |
L | 6,20 | 12,00 | 20,00 | ab 96,22 € |
|
10171255 (DIN173-L 06.30X20) |
L | 6,30 | 12,00 | 20,00 | ab 96,22 € |
|
10171256 (DIN173-L 06.40X20) |
L | 6,40 | 12,00 | 20,00 | ab 96,22 € |
|
10171257 (DIN173-L 06.50X20) |
L | 6,50 | 12,00 | 20,00 | ab 96,22 € |
|
10171258 (DIN173-L 06.60X20) |
L | 6,60 | 12,00 | 20,00 | ab 96,22 € |
|
10171259 (DIN173-L 06.70X20) |
L | 6,70 | 12,00 | 20,00 | ab 96,22 € |
|
10171260 (DIN173-L 06.80X20) |
L | 6,80 | 12,00 | 20,00 | ab 96,22 € |
|
10171261 (DIN173-L 06.90X20) |
L | 6,90 | 12,00 | 20,00 | ab 96,22 € |
|
10171262 (DIN173-L 07.00X20) |
L | 7,00 | 12,00 | 20,00 | ab 96,22 € |
|
10171263 (DIN173-L 07.10X20) |
L | 7,10 | 12,00 | 20,00 | ab 96,22 € |
|
10171264 (DIN173-L 07.20X20) |
L | 7,20 | 12,00 | 20,00 | ab 96,22 € |
|
10171265 (DIN173-L 07.30X20) |
L | 7,30 | 12,00 | 20,00 | ab 96,22 € |
|
10171266 (DIN173-L 07.40X20) |
L | 7,40 | 12,00 | 20,00 | ab 96,22 € |
|
10171267 (DIN173-L 07.50X20) |
L | 7,50 | 12,00 | 20,00 | ab 96,22 € |
|
10171268 (DIN173-L 07.60X20) |
L | 7,60 | 12,00 | 20,00 | ab 96,22 € |
|
10171269 (DIN173-L 07.70X20) |
L | 7,70 | 12,00 | 20,00 | ab 96,22 € |
|
10171270 (DIN173-L 07.80X20) |
L | 7,80 | 12,00 | 20,00 | ab 96,22 € |
|
10171271 (DIN173-L 07.90X20) |
L | 7,90 | 12,00 | 20,00 | ab 96,22 € |
|
10171272 (DIN173-L 08.00X20) |
L | 8,00 | 12,00 | 20,00 | ab 96,22 € |
|
10171216 (DIN173-L 02.40X16) |
L | 2,40 | 8,00 | 16,00 | ab 96,84 € |
|
10171217 (DIN173-L 02.50X16) |
L | 2,50 | 8,00 | 16,00 | ab 96,84 € |
|
10171218 (DIN173-L 02.60X16) |
L | 2,60 | 8,00 | 16,00 | ab 96,84 € |
|
10171219 (DIN173-L 02.70X16) |
L | 2,70 | 8,00 | 16,00 | ab 96,84 € |
|
10171220 (DIN173-L 02.80X16) |
L | 2,80 | 8,00 | 16,00 | ab 96,84 € |
|
10171221 (DIN173-L 02.90X16) |
L | 2,90 | 8,00 | 16,00 | ab 96,84 € |
|
10171222 (DIN173-L 03.00X16) |
L | 3,00 | 8,00 | 16,00 | ab 96,84 € |
|
10171223 (DIN173-L 03.10X16) |
L | 3,10 | 8,00 | 16,00 | ab 96,84 € |
|
10171224 (DIN173-L 03.20X16) |
L | 3,20 | 8,00 | 16,00 | ab 96,84 € |
|
10171225 (DIN173-L 03.30X16) |
L | 3,30 | 8,00 | 16,00 | ab 96,84 € |
|
10171226 (DIN173-L 03.40X16) |
L | 3,40 | 8,00 | 16,00 | ab 96,84 € |
|
10171227 (DIN173-L 03.50X16) |
L | 3,50 | 8,00 | 16,00 | ab 96,84 € |
|
10171228 (DIN173-L 03.60X16) |
L | 3,60 | 8,00 | 16,00 | ab 96,84 € |
|
10171229 (DIN173-L 03.70X16) |
L | 3,70 | 8,00 | 16,00 | ab 96,84 € |
|
10171230 (DIN173-L 03.80X16) |
L | 3,80 | 8,00 | 16,00 | ab 96,84 € |
|
10171231 (DIN173-L 03.90X16) |
L | 3,90 | 8,00 | 16,00 | ab 96,84 € |
|
10171232 (DIN173-L 04.00X16) |
L | 4,00 | 8,00 | 16,00 | ab 96,84 € |
|
10170366 (DIN173-K 02.40X16) |
K | 2,40 | 8,00 | 16,00 | ab 98,00 € |
|
10170367 (DIN173-K 02.50X16) |
K | 2,50 | 8,00 | 16,00 | ab 98,00 € |
|
10170368 (DIN173-K 02.60X16) |
K | 2,60 | 8,00 | 16,00 | ab 98,00 € |
|
10170369 (DIN173-K 02.70X16) |
K | 2,70 | 8,00 | 16,00 | ab 98,00 € |
|
10170370 (DIN173-K 02.80X16) |
K | 2,80 | 8,00 | 16,00 | ab 98,00 € |
|
10170371 (DIN173-K 02.90X16) |
K | 2,90 | 8,00 | 16,00 | ab 98,00 € |
|
10170372 (DIN173-K 03.00X16) |
K | 3,00 | 8,00 | 16,00 | ab 98,00 € |
|
10170373 (DIN173-K 03.10X16) |
K | 3,10 | 8,00 | 16,00 | ab 98,00 € |
|
10170374 (DIN173-K 03.20X16) |
K | 3,20 | 8,00 | 16,00 | ab 98,00 € |
|
10170375 (DIN173-K 03.30X16) |
K | 3,30 | 8,00 | 16,00 | ab 98,00 € |
|
10170376 (DIN173-K 03.40X16) |
K | 3,40 | 8,00 | 16,00 | ab 98,00 € |
|
10170377 (DIN173-K 03.50X16) |
K | 3,50 | 8,00 | 16,00 | ab 98,00 € |
|
10170378 (DIN173-K 03.60X16) |
K | 3,60 | 8,00 | 16,00 | ab 98,00 € |
|
10170379 (DIN173-K 03.70X16) |
K | 3,70 | 8,00 | 16,00 | ab 98,00 € |
|
10170380 (DIN173-K 03.80X16) |
K | 3,80 | 8,00 | 16,00 | ab 98,00 € |
|
10170381 (DIN173-K 03.90X16) |
K | 3,90 | 8,00 | 16,00 | ab 98,00 € |
|
10170382 (DIN173-K 04.00X16) |
K | 4,00 | 8,00 | 16,00 | ab 98,00 € |
|
10171004 (DIN173-L 10.10X16) |
L | 10,10 | 18,00 | 16,00 | ab 99,54 € |
|
10171005 (DIN173-L 10.20X16) |
L | 10,20 | 18,00 | 16,00 | ab 99,54 € |
|
10171006 (DIN173-L 10.30X16) |
L | 10,30 | 18,00 | 16,00 | ab 99,54 € |
|
10171007 (DIN173-L 10.40X16) |
L | 10,40 | 18,00 | 16,00 | ab 99,54 € |
|
10171008 (DIN173-L 10.50X16) |
L | 10,50 | 18,00 | 16,00 | ab 99,54 € |
|
10171009 (DIN173-L 10.60X16) |
L | 10,60 | 18,00 | 16,00 | ab 99,54 € |
|
10171010 (DIN173-L 10.70X16) |
L | 10,70 | 18,00 | 16,00 | ab 99,54 € |
|
10171011 (DIN173-L 10.80X16) |
L | 10,80 | 18,00 | 16,00 | ab 99,54 € |
|
10171012 (DIN173-L 10.90X16) |
L | 10,90 | 18,00 | 16,00 | ab 99,54 € |
|
10171013 (DIN173-L 11.00X16) |
L | 11,00 | 18,00 | 16,00 | ab 99,54 € |
|
10171014 (DIN173-L 11.10X16) |
L | 11,10 | 18,00 | 16,00 | ab 99,54 € |
|
10171015 (DIN173-L 11.20X16) |
L | 11,20 | 18,00 | 16,00 | ab 99,54 € |
|
10171016 (DIN173-L 11.30X16) |
L | 11,30 | 18,00 | 16,00 | ab 99,54 € |
|
10171017 (DIN173-L 11.40X16) |
L | 11,40 | 18,00 | 16,00 | ab 99,54 € |
|
10171018 (DIN173-L 11.50X16) |
L | 11,50 | 18,00 | 16,00 | ab 99,54 € |
|
10171019 (DIN173-L 11.60X16) |
L | 11,60 | 18,00 | 16,00 | ab 99,54 € |
|
10171020 (DIN173-L 11.70X16) |
L | 11,70 | 18,00 | 16,00 | ab 99,54 € |
|
10171021 (DIN173-L 11.80X16) |
L | 11,80 | 18,00 | 16,00 | ab 99,54 € |
|
10171022 (DIN173-L 11.90X16) |
L | 11,90 | 18,00 | 16,00 | ab 99,54 € |
|
10171023 (DIN173-L 12.00X16) |
L | 12,00 | 18,00 | 16,00 | ab 99,54 € |
|
10170403 (DIN173-K 06.10X20) |
K | 6,10 | 12,00 | 20,00 | ab 101,56 € |
|
10170404 (DIN173-K 06.20X20) |
K | 6,20 | 12,00 | 20,00 | ab 101,56 € |
|
10170405 (DIN173-K 06.30X20) |
K | 6,30 | 12,00 | 20,00 | ab 101,56 € |
|
10170406 (DIN173-K 06.40X20) |
K | 6,40 | 12,00 | 20,00 | ab 101,56 € |
|
10170407 (DIN173-K 06.50X20) |
K | 6,50 | 12,00 | 20,00 | ab 101,56 € |
|
10170408 (DIN173-K 06.60X20) |
K | 6,60 | 12,00 | 20,00 | ab 101,56 € |
|
10170409 (DIN173-K 06.70X20) |
K | 6,70 | 12,00 | 20,00 | ab 101,56 € |
|
10170410 (DIN173-K 06.80X20) |
K | 6,80 | 12,00 | 20,00 | ab 101,56 € |
|
10170411 (DIN173-K 06.90X20) |
K | 6,90 | 12,00 | 20,00 | ab 101,56 € |
|
10170412 (DIN173-K 07.00X20) |
K | 7,00 | 12,00 | 20,00 | ab 101,56 € |
|
10170413 (DIN173-K 07.10X20) |
K | 7,10 | 12,00 | 20,00 | ab 101,56 € |
|
10170414 (DIN173-K 07.20X20) |
K | 7,20 | 12,00 | 20,00 | ab 101,56 € |
|
10170415 (DIN173-K 07.30X20) |
K | 7,30 | 12,00 | 20,00 | ab 101,56 € |
|
10170416 (DIN173-K 07.40X20) |
K | 7,40 | 12,00 | 20,00 | ab 101,56 € |
|
10170417 (DIN173-K 07.50X20) |
K | 7,50 | 12,00 | 20,00 | ab 101,56 € |
|
10170418 (DIN173-K 07.60X20) |
K | 7,60 | 12,00 | 20,00 | ab 101,56 € |
|
10170419 (DIN173-K 07.70X20) |
K | 7,70 | 12,00 | 20,00 | ab 101,56 € |
|
10170420 (DIN173-K 07.80X20) |
K | 7,80 | 12,00 | 20,00 | ab 101,56 € |
|
10170421 (DIN173-K 07.90X20) |
K | 7,90 | 12,00 | 20,00 | ab 101,56 € |
|
10170422 (DIN173-K 08.00X20) |
K | 8,00 | 12,00 | 20,00 | ab 101,56 € |
|
10170154 (DIN173-K 10.10X16) |
K | 10,10 | 18,00 | 16,00 | ab 103,43 € |
|
10170155 (DIN173-K 10.20X16) |
K | 10,20 | 18,00 | 16,00 | ab 103,43 € |
|
10170156 (DIN173-K 10.30X16) |
K | 10,30 | 18,00 | 16,00 | ab 103,43 € |
|
10170157 (DIN173-K 10.40X16) |
K | 10,40 | 18,00 | 16,00 | ab 103,43 € |
|
10170158 (DIN173-K 10.50X16) |
K | 10,50 | 18,00 | 16,00 | ab 103,43 € |
|
10170159 (DIN173-K 10.60X16) |
K | 10,60 | 18,00 | 16,00 | ab 103,43 € |
|
10170160 (DIN173-K 10.70X16) |
K | 10,70 | 18,00 | 16,00 | ab 103,43 € |
|
10170161 (DIN173-K 10.80X16) |
K | 10,80 | 18,00 | 16,00 | ab 103,43 € |
|
10170162 (DIN173-K 10.90X16) |
K | 10,90 | 18,00 | 16,00 | ab 103,43 € |
|
10170163 (DIN173-K 11.00X16) |
K | 11,00 | 18,00 | 16,00 | ab 103,43 € |
|
10170164 (DIN173-K 11.10X16) |
K | 11,00 | 18,00 | 16,00 | ab 103,43 € |
|
10170165 (DIN173-K 11.20X16) |
K | 11,20 | 18,00 | 16,00 | ab 103,43 € |
|
10170166 (DIN173-K 11.30X16) |
K | 11,30 | 18,00 | 16,00 | ab 103,43 € |
|
10170167 (DIN173-K 11.40X16) |
K | 11,40 | 18,00 | 16,00 | ab 103,43 € |
|
10170168 (DIN173-K 11.50X16) |
K | 11,50 | 18,00 | 16,00 | ab 103,43 € |
|
10170169 (DIN173-K 11.60X16) |
K | 11,60 | 18,00 | 16,00 | ab 103,43 € |
|
10170170 (DIN173-K 11.70X16) |
K | 11,70 | 18,00 | 16,00 | ab 103,43 € |
|
10170171 (DIN173-K 11.80X16) |
K | 11,80 | 18,00 | 16,00 | ab 103,43 € |
|
10170172 (DIN173-K 11.90X16) |
K | 11,90 | 18,00 | 16,00 | ab 103,43 € |
|
10170173 (DIN173-K 12.00X16) |
K | 12,00 | 18,00 | 16,00 | ab 103,43 € |
|
10171024 (DIN173-L 12.10X20) |
L | 12,10 | 22,00 | 20,00 | ab 103,84 € |
|
10171025 (DIN173-L 12.20X20) |
L | 12,20 | 22,00 | 20,00 | ab 103,84 € |
|
10171026 (DIN173-L 12.30X20) |
L | 12,30 | 22,00 | 20,00 | ab 103,84 € |
|
10171027 (DIN173-L 12.40X20) |
L | 12,40 | 22,00 | 20,00 | ab 103,84 € |
|
10171028 (DIN173-L 12.50X20) |
L | 12,50 | 22,00 | 20,00 | ab 103,84 € |
|
10171029 (DIN173-L 12.60X20) |
L | 12,60 | 22,00 | 20,00 | ab 103,84 € |
|
10171030 (DIN173-L 12.70X20) |
L | 12,70 | 22,00 | 20,00 | ab 103,84 € |
|
10171031 (DIN173-L 12.80X20) |
L | 12,80 | 22,00 | 20,00 | ab 103,84 € |
|
10171032 (DIN173-L 12.90X20) |
L | 12,90 | 22,00 | 20,00 | ab 103,84 € |
|
10171033 (DIN173-L 13.00X20) |
L | 13,00 | 22,00 | 20,00 | ab 103,84 € |
|
10171034 (DIN173-L 13.10X20) |
L | 13,10 | 22,00 | 20,00 | ab 103,84 € |
|
10171035 (DIN173-L 13.40X20) |
L | 13,40 | 22,00 | 20,00 | ab 103,84 € |
|
10171036 (DIN173-L 13.50X20) |
L | 13,50 | 22,00 | 20,00 | ab 103,84 € |
|
10171037 (DIN173-L 13.60X20) |
L | 13,60 | 22,00 | 20,00 | ab 103,84 € |
|
10171038 (DIN173-L 13.70X20) |
L | 13,70 | 22,00 | 20,00 | ab 103,84 € |
|
10171039 (DIN173-L 13.80X20) |
L | 13,80 | 22,00 | 20,00 | ab 103,84 € |
|
10171040 (DIN173-L 14.00X20) |
L | 14,00 | 22,00 | 20,00 | ab 103,84 € |
|
10171041 (DIN173-L 14.10X20) |
L | 14,10 | 22,00 | 20,00 | ab 103,84 € |
|
10171042 (DIN173-L 14.20X20) |
L | 14,20 | 22,00 | 20,00 | ab 103,84 € |
|
10171043 (DIN173-L 14.30X20) |
L | 14,30 | 22,00 | 20,00 | ab 103,84 € |
|
10171044 (DIN173-L 14.40X20) |
L | 14,40 | 22,00 | 20,00 | ab 103,84 € |
|
10171045 (DIN173-L 14.50X20) |
L | 14,50 | 22,00 | 20,00 | ab 103,84 € |
|
10171046 (DIN173-L 14.60X20) |
L | 14,60 | 22,00 | 20,00 | ab 103,84 € |
|
10171047 (DIN173-L 14.70X20) |
L | 14,70 | 22,00 | 20,00 | ab 103,84 € |
|
10171048 (DIN173-L 14.80X20) |
L | 14,80 | 22,00 | 20,00 | ab 103,84 € |
|
10171049 (DIN173-L 14.90X20) |
L | 14,90 | 22,00 | 20,00 | ab 103,84 € |
|
10171050 (DIN173-L 15.00X20) |
L | 15,00 | 22,00 | 20,00 | ab 103,84 € |
|
10171273 (DIN173-L 08.10X28) |
L | 8,10 | 15,00 | 28,00 | ab 105,57 € |
|
10171274 (DIN173-L 08.20X28) |
L | 8,20 | 15,00 | 28,00 | ab 105,57 € |
|
10171275 (DIN173-L 08.30X28) |
L | 8,30 | 15,00 | 28,00 | ab 105,57 € |
|
10171276 (DIN173-L 08.40X28) |
L | 8,40 | 15,00 | 28,00 | ab 105,57 € |
|
10171277 (DIN173-L 08.50X28) |
L | 8,50 | 15,00 | 28,00 | ab 105,57 € |
|
10171278 (DIN173-L 08.60X28) |
L | 8,60 | 15,00 | 28,00 | ab 105,57 € |
|
10171279 (DIN173-L 08.70X28) |
L | 8,70 | 15,00 | 28,00 | ab 105,57 € |
|
10171280 (DIN173-L 08.80X28) |
L | 8,80 | 15,00 | 28,00 | ab 105,57 € |
|
10171281 (DIN173-L 08.90X28) |
L | 8,90 | 15,00 | 28,00 | ab 105,57 € |
|
10171282 (DIN173-L 09.00X28) |
L | 9,00 | 15,00 | 28,00 | ab 105,57 € |
|
10171283 (DIN173-L 09.10X28) |
L | 9,10 | 15,00 | 28,00 | ab 105,57 € |
|
10171284 (DIN173-L 09.20X28) |
L | 9,20 | 15,00 | 28,00 | ab 105,57 € |
|
10171285 (DIN173-L 09.30X28) |
L | 9,30 | 15,00 | 28,00 | ab 105,57 € |
|
10171286 (DIN173-L 09.40X28) |
L | 9,40 | 15,00 | 28,00 | ab 105,57 € |
|
10171287 (DIN173-L 09.50X28) |
L | 9,50 | 15,00 | 28,00 | ab 105,57 € |
|
10171288 (DIN173-L 09.60X28) |
L | 9,60 | 15,00 | 28,00 | ab 105,57 € |
|
10171289 (DIN173-L 09.70X28) |
L | 9,70 | 15,00 | 28,00 | ab 105,57 € |
|
10171290 (DIN173-L 09.80X28) |
L | 9,80 | 15,00 | 28,00 | ab 105,57 € |
|
10171291 (DIN173-L 09.90X28) |
L | 9,90 | 15,00 | 28,00 | ab 105,57 € |
|
10171292 (DIN173-L 10.00X28) |
L | 10,00 | 15,00 | 28,00 | ab 105,57 € |
|
10170174 (DIN173-K 12.10X20) |
K | 12,10 | 22,00 | 20,00 | ab 107,56 € |
|
10170175 (DIN173-K 12.20X20) |
K | 12,20 | 22,00 | 20,00 | ab 107,56 € |
|
10170176 (DIN173-K 12.30X20) |
K | 12,30 | 22,00 | 20,00 | ab 107,56 € |
|
10170177 (DIN173-K 12.40X20) |
K | 12,40 | 22,00 | 20,00 | ab 107,56 € |
|
10170178 (DIN173-K 12.50X20) |
K | 12,50 | 22,00 | 20,00 | ab 107,56 € |
|
10170179 (DIN173-K 12.60X20) |
K | 12,60 | 22,00 | 20,00 | ab 107,56 € |
|
10170180 (DIN173-K 12.70X20) |
K | 12,70 | 22,00 | 20,00 | ab 107,56 € |
|
10170181 (DIN173-K 12.80X20) |
K | 12,80 | 22,00 | 20,00 | ab 107,56 € |
|
10170182 (DIN173-K 12.90X20) |
K | 12,90 | 22,00 | 20,00 | ab 107,56 € |
|
10170183 (DIN173-K 13.00X20) |
K | 13,00 | 22,00 | 20,00 | ab 107,56 € |
|
10170184 (DIN173-K 13.10X20) |
K | 13,10 | 22,00 | 20,00 | ab 107,56 € |
|
10170185 (DIN173-K 13.40X20) |
K | 13,40 | 22,00 | 20,00 | ab 107,56 € |
|
10170186 (DIN173-K 13.50X20) |
K | 13,50 | 22,00 | 20,00 | ab 107,56 € |
|
10170187 (DIN173-K 13.60X20) |
K | 13,60 | 22,00 | 20,00 | ab 107,56 € |
|
10170188 (DIN173-K 13.70X20) |
K | 13,70 | 22,00 | 20,00 | ab 107,56 € |
|
10170189 (DIN173-K 13.80X20) |
K | 13,80 | 22,00 | 20,00 | ab 107,56 € |
|
10170190 (DIN173-K 14.00X20) |
K | 14,00 | 22,00 | 20,00 | ab 107,56 € |
|
10170191 (DIN173-K 14.10X20) |
K | 14,10 | 22,00 | 20,00 | ab 107,56 € |
|
10170192 (DIN173-K 14.20X20) |
K | 14,20 | 22,00 | 20,00 | ab 107,56 € |
|
10170193 (DIN173-K 14.30X20) |
K | 14,30 | 22,00 | 20,00 | ab 107,56 € |
|
10170194 (DIN173-K 14.40X20) |
K | 14,40 | 22,00 | 20,00 | ab 107,56 € |
|
10170195 (DIN173-K 14.50X20) |
K | 14,50 | 22,00 | 20,00 | ab 107,56 € |
|
10170196 (DIN173-K 14.60X20) |
K | 14,60 | 22,00 | 20,00 | ab 107,56 € |
|
10170197 (DIN173-K 14.70X20) |
K | 14,70 | 22,00 | 20,00 | ab 107,56 € |
|
10170198 (DIN173-K 14.80X20) |
K | 14,80 | 22,00 | 20,00 | ab 107,56 € |
|
10170199 (DIN173-K 14.90X20) |
K | 14,90 | 22,00 | 20,00 | ab 107,56 € |
|
10170200 (DIN173-K 15.00X20) |
K | 15,00 | 22,00 | 20,00 | ab 107,56 € |
|
10171505 (DIN173-L 04.10X25) |
L | 4,10 | 10,00 | 25,00 | ab 108,38 € |
|
10171506 (DIN173-L 04.20X25) |
L | 4,20 | 10,00 | 25,00 | ab 108,38 € |
|
10171507 (DIN173-L 04.30X25) |
L | 4,30 | 10,00 | 25,00 | ab 108,38 € |
|
10171508 (DIN173-L 04.40X25) |
L | 4,40 | 10,00 | 25,00 | ab 108,38 € |
|
10171509 (DIN173-L 04.50X25) |
L | 4,50 | 10,00 | 25,00 | ab 108,38 € |
|
10171510 (DIN173-L 04.60X25) |
L | 4,60 | 10,00 | 25,00 | ab 108,38 € |
|
10171511 (DIN173-L 04.70X25) |
L | 4,70 | 10,00 | 25,00 | ab 108,38 € |
|
10171512 (DIN173-L 04.80X25) |
L | 4,80 | 10,00 | 25,00 | ab 108,38 € |
|
10171513 (DIN173-L 04.90X25) |
L | 4,90 | 10,00 | 25,00 | ab 108,38 € |
|
10171514 (DIN173-L 05.00X25) |
L | 5,00 | 10,00 | 25,00 | ab 108,38 € |
|
10171515 (DIN173-L 05.10X25) |
L | 5,10 | 10,00 | 25,00 | ab 108,38 € |
|
10171516 (DIN173-L 05.20X25) |
L | 5,20 | 10,00 | 25,00 | ab 108,38 € |
|
10171517 (DIN173-L 05.30X25) |
L | 5,30 | 10,00 | 25,00 | ab 108,38 € |
|
10171518 (DIN173-L 05.40X25) |
L | 5,40 | 10,00 | 25,00 | ab 108,38 € |
|
10171519 (DIN173-L 05.50X25) |
L | 5,50 | 10,00 | 25,00 | ab 108,38 € |
|
10171520 (DIN173-L 05.60X25) |
L | 5,60 | 10,00 | 25,00 | ab 108,38 € |
|
10171521 (DIN173-L 05.70X25) |
L | 5,70 | 10,00 | 25,00 | ab 108,38 € |
|
10171522 (DIN173-L 05.80X25) |
L | 5,80 | 10,00 | 25,00 | ab 108,38 € |
|
10171523 (DIN173-L 05.90X25) |
L | 5,90 | 10,00 | 25,00 | ab 108,38 € |
|
10171524 (DIN173-L 06.00X25) |
L | 6,00 | 10,00 | 25,00 | ab 108,38 € |
|
10170423 (DIN173-K 08.10X28) |
K | 8,10 | 15,00 | 28,00 | ab 110,53 € |
|
10170424 (DIN173-K 08.20X28) |
K | 8,20 | 15,00 | 28,00 | ab 110,53 € |
|
10170425 (DIN173-K 08.30X28) |
K | 8,30 | 15,00 | 28,00 | ab 110,53 € |
|
10170426 (DIN173-K 08.40X28) |
K | 8,40 | 15,00 | 28,00 | ab 110,53 € |
|
10170427 (DIN173-K 08.50X28) |
K | 8,50 | 15,00 | 28,00 | ab 110,53 € |
|
10170428 (DIN173-K 08.60X28) |
K | 8,60 | 15,00 | 28,00 | ab 110,53 € |
|
10170429 (DIN173-K 08.70X28) |
K | 8,70 | 15,00 | 28,00 | ab 110,53 € |
|
10170430 (DIN173-K 08.80X28) |
K | 8,80 | 15,00 | 28,00 | ab 110,53 € |
|
10170431 (DIN173-K 08.90X28) |
K | 8,90 | 15,00 | 28,00 | ab 110,53 € |
|
10170432 (DIN173-K 09.00X28) |
K | 9,00 | 15,00 | 28,00 | ab 110,53 € |
|
10170433 (DIN173-K 09.10X28) |
K | 9,10 | 15,00 | 28,00 | ab 110,53 € |
|
10170434 (DIN173-K 09.20X28) |
K | 9,20 | 15,00 | 28,00 | ab 110,53 € |
|
10170435 (DIN173-K 09.30X28) |
K | 9,30 | 15,00 | 28,00 | ab 110,53 € |
|
10170436 (DIN173-K 09.40X28) |
K | 9,40 | 15,00 | 28,00 | ab 110,53 € |
|
10170437 (DIN173-K 09.50X28) |
K | 9,50 | 15,00 | 28,00 | ab 110,53 € |
|
10170438 (DIN173-K 09.60X28) |
K | 9,60 | 15,00 | 28,00 | ab 110,53 € |
|
10170439 (DIN173-K 09.70X28) |
K | 9,70 | 15,00 | 28,00 | ab 110,53 € |
|
10170440 (DIN173-K 09.80X28) |
K | 9,80 | 15,00 | 28,00 | ab 110,53 € |
|
10170441 (DIN173-K 09.90X28) |
K | 9,90 | 15,00 | 28,00 | ab 110,53 € |
|
10170442 (DIN173-K 10.00X28) |
K | 10,00 | 15,00 | 28,00 | ab 110,53 € |
|
10171293 (DIN173-L 10.10X28) |
L | 10,10 | 18,00 | 28,00 | ab 112,81 € |
|
10171294 (DIN173-L 10.20X28) |
L | 10,20 | 18,00 | 28,00 | ab 112,81 € |
|
10171295 (DIN173-L 10.30X28) |
L | 10,30 | 18,00 | 28,00 | ab 112,81 € |
|
10171296 (DIN173-L 10.40X28) |
L | 10,40 | 18,00 | 28,00 | ab 112,81 € |
|
10171297 (DIN173-L 10.50X28) |
L | 10,50 | 18,00 | 28,00 | ab 112,81 € |
|
10171298 (DIN173-L 10.60X28) |
L | 10,60 | 18,00 | 28,00 | ab 112,81 € |
|
10171299 (DIN173-L 10.70X28) |
L | 10,70 | 18,00 | 28,00 | ab 112,81 € |
|
10171300 (DIN173-L 10.80X28) |
L | 10,80 | 18,00 | 28,00 | ab 112,81 € |
|
10171301 (DIN173-L 10.90X28) |
L | 10,90 | 18,00 | 28,00 | ab 112,81 € |
|
10171302 (DIN173-L 11.00X28) |
L | 11,00 | 18,00 | 28,00 | ab 112,81 € |
|
10171303 (DIN173-L 11.10X28) |
L | 11,10 | 18,00 | 28,00 | ab 112,81 € |
|
10171304 (DIN173-L 11.20X28) |
L | 11,20 | 18,00 | 28,00 | ab 112,81 € |
|
10171305 (DIN173-L 11.30X28) |
L | 11,30 | 18,00 | 28,00 | ab 112,81 € |
|
10171306 (DIN173-L 11.40X28) |
L | 11,40 | 18,00 | 28,00 | ab 112,81 € |
|
10171307 (DIN173-L 11.50X28) |
L | 11,50 | 18,00 | 28,00 | ab 112,81 € |
|
10171308 (DIN173-L 11.60X28) |
L | 11,60 | 18,00 | 28,00 | ab 112,81 € |
|
10171309 (DIN173-L 11.70X28) |
L | 11,70 | 18,00 | 28,00 | ab 112,81 € |
|
10171310 (DIN173-L 11.80X28) |
L | 11,80 | 18,00 | 28,00 | ab 112,81 € |
|
10171311 (DIN173-L 11.90X28) |
L | 11,90 | 18,00 | 28,00 | ab 112,81 € |
|
10171312 (DIN173-L 12.00X28) |
L | 12,00 | 18,00 | 28,00 | ab 112,81 € |
|
10171051 (DIN173-L 15.10X20) |
L | 15,10 | 26,00 | 20,00 | ab 112,90 € |
|
10171052 (DIN173-L 15.20X20) |
L | 15,20 | 26,00 | 20,00 | ab 112,90 € |
|
10171053 (DIN173-L 15.30X20) |
L | 15,30 | 26,00 | 20,00 | ab 112,90 € |
|
10171054 (DIN173-L 15.40X20) |
L | 15,40 | 26,00 | 20,00 | ab 112,90 € |
|
10171055 (DIN173-L 15.50X20) |
L | 15,50 | 26,00 | 20,00 | ab 112,90 € |
|
10171056 (DIN173-L 15.90X20) |
L | 15,90 | 26,00 | 20,00 | ab 112,90 € |
|
10171057 (DIN173-L 16.00X20) |
L | 16,00 | 26,00 | 20,00 | ab 112,90 € |
|
10171058 (DIN173-L 16.10X20) |
L | 16,10 | 26,00 | 20,00 | ab 112,90 € |
|
10171059 (DIN173-L 16.20X20) |
L | 16,20 | 26,00 | 20,00 | ab 112,90 € |
|
10171060 (DIN173-L 16.30X20) |
L | 16,30 | 26,00 | 20,00 | ab 112,90 € |
|
10171061 (DIN173-L 16.50X20) |
L | 16,50 | 26,00 | 20,00 | ab 112,90 € |
|
10171062 (DIN173-L 16.60X20) |
L | 16,60 | 26,00 | 20,00 | ab 112,90 € |
|
10171063 (DIN173-L 16.70X20) |
L | 16,70 | 26,00 | 20,00 | ab 112,90 € |
|
10171065 (DIN173-L 17.10X20) |
L | 17,10 | 26,00 | 20,00 | ab 112,90 € |
|
10171066 (DIN173-L 17.50X20) |
L | 17,50 | 26,00 | 20,00 | ab 112,90 € |
|
10171067 (DIN173-L 17.70X20) |
L | 17,70 | 26,00 | 20,00 | ab 112,90 € |
|
10171068 (DIN173-L 17.80X20) |
L | 17,80 | 26,00 | 20,00 | ab 112,90 € |
|
10171069 (DIN173-L 17.90X20) |
L | 17,90 | 26,00 | 20,00 | ab 112,90 € |
|
10171070 (DIN173-L 18.00X20) |
L | 18,00 | 26,00 | 20,00 | ab 112,90 € |
|
10170655 (DIN173-K 04.10X25) |
K | 4,10 | 10,00 | 25,00 | ab 113,59 € |
|
10170656 (DIN173-K 04.20X25) |
K | 4,20 | 10,00 | 25,00 | ab 113,59 € |
|
10170657 (DIN173-K 04.30X25) |
K | 4,30 | 10,00 | 25,00 | ab 113,59 € |
|
10170658 (DIN173-K 04.40X25) |
K | 4,40 | 10,00 | 25,00 | ab 113,59 € |
|
10170659 (DIN173-K 04.50X25) |
K | 4,50 | 10,00 | 25,00 | ab 113,59 € |
|
10170660 (DIN173-K 04.60X25) |
K | 4,60 | 10,00 | 25,00 | ab 113,59 € |
|
10170661 (DIN173-K 04.70X25) |
K | 4,70 | 10,00 | 25,00 | ab 113,59 € |
|
10170662 (DIN173-K 04.80X25) |
K | 4,80 | 10,00 | 25,00 | ab 113,59 € |
|
10170663 (DIN173-K 04.90X25) |
K | 4,90 | 10,00 | 25,00 | ab 113,59 € |
|
10170664 (DIN173-K 05.00X25) |
K | 5,00 | 10,00 | 25,00 | ab 113,59 € |
|
10170665 (DIN173-K 05.10X25) |
K | 5,10 | 10,00 | 25,00 | ab 113,59 € |
|
10170666 (DIN173-K 05.20X25) |
K | 5,20 | 10,00 | 25,00 | ab 113,59 € |
|
10170667 (DIN173-K 05.30X25) |
K | 5,30 | 10,00 | 25,00 | ab 113,59 € |
|
10170668 (DIN173-K 05.40X25) |
K | 5,40 | 10,00 | 25,00 | ab 113,59 € |
|
10170669 (DIN173-K 05.50X25) |
K | 5,50 | 10,00 | 25,00 | ab 113,59 € |
|
10170670 (DIN173-K 05.60X25) |
K | 5,60 | 10,00 | 25,00 | ab 113,59 € |
|
10170671 (DIN173-K 05.70X25) |
K | 5,70 | 10,00 | 25,00 | ab 113,59 € |
|
10170672 (DIN173-K 05.80X25) |
K | 5,80 | 10,00 | 25,00 | ab 113,59 € |
|
10170673 (DIN173-K 05.90X25) |
K | 5,90 | 10,00 | 25,00 | ab 113,59 € |
|
10170674 (DIN173-K 06.00X25) |
K | 6,00 | 10,00 | 25,00 | ab 113,59 € |
|
10170443 (DIN173-K 10.10X28) |
K | 10,10 | 18,00 | 28,00 | ab 116,44 € |
|
10170444 (DIN173-K 10.20X28) |
K | 10,20 | 18,00 | 28,00 | ab 116,44 € |
|
10170445 (DIN173-K 10.30X28) |
K | 10,30 | 18,00 | 28,00 | ab 116,44 € |
|
10170446 (DIN173-K 10.40X28) |
K | 10,40 | 18,00 | 28,00 | ab 116,44 € |
|
10170447 (DIN173-K 10.50X28) |
K | 10,50 | 18,00 | 28,00 | ab 116,44 € |
|
10170448 (DIN173-K 10.60X28) |
K | 10,60 | 18,00 | 28,00 | ab 116,44 € |
|
10170449 (DIN173-K 10.70X28) |
K | 10,70 | 18,00 | 28,00 | ab 116,44 € |
|
10170450 (DIN173-K 10.80X28) |
K | 10,80 | 18,00 | 28,00 | ab 116,44 € |
|
10170451 (DIN173-K 10.90X28) |
K | 10,90 | 18,00 | 28,00 | ab 116,44 € |
|
10170452 (DIN173-K 11.00X28) |
K | 11,00 | 18,00 | 28,00 | ab 116,44 € |
|
10170453 (DIN173-K 11.10X28) |
K | 11,10 | 18,00 | 28,00 | ab 116,44 € |
|
10170454 (DIN173-K 11.20X28) |
K | 11,20 | 18,00 | 28,00 | ab 116,44 € |
|
10170455 (DIN173-K 11.30X28) |
K | 11,30 | 18,00 | 28,00 | ab 116,44 € |
|
10170456 (DIN173-K 11.40X28) |
K | 11,40 | 18,00 | 28,00 | ab 116,44 € |
|
10170457 (DIN173-K 11.50X28) |
K | 11,50 | 18,00 | 28,00 | ab 116,44 € |
|
10170458 (DIN173-K 11.60X28) |
K | 11,60 | 18,00 | 28,00 | ab 116,44 € |
|
10170459 (DIN173-K 11.70X28) |
K | 11,70 | 18,00 | 28,00 | ab 116,44 € |
|
10170460 (DIN173-K 11.80X28) |
K | 11,80 | 18,00 | 28,00 | ab 116,44 € |
|
10170461 (DIN173-K 11.90X28) |
K | 11,90 | 18,00 | 28,00 | ab 116,44 € |
|
10170462 (DIN173-K 12.00X28) |
K | 12,00 | 18,00 | 28,00 | ab 116,44 € |
|
10170201 (DIN173-K 15.10X20) |
K | 15,10 | 26,00 | 20,00 | ab 116,56 € |
|
10170202 (DIN173-K 15.20X20) |
K | 15,20 | 26,00 | 20,00 | ab 116,56 € |
|
10170203 (DIN173-K 15.30X20) |
K | 15,30 | 26,00 | 20,00 | ab 116,56 € |
|
10170204 (DIN173-K 15.40X20) |
K | 15,40 | 26,00 | 20,00 | ab 116,56 € |
|
10170205 (DIN173-K 15.50X20) |
K | 15,50 | 26,00 | 20,00 | ab 116,56 € |
|
10170206 (DIN173-K 15.90X20) |
K | 15,90 | 26,00 | 20,00 | ab 116,56 € |
|
10170207 (DIN173-K 16.00X20) |
K | 16,00 | 26,00 | 20,00 | ab 116,56 € |
|
10170208 (DIN173-K 16.10X20) |
K | 16,10 | 26,00 | 20,00 | ab 116,56 € |
|
10170209 (DIN173-K 16.20X20) |
K | 16,20 | 26,00 | 20,00 | ab 116,56 € |
|
10170210 (DIN173-K 16.30X20) |
K | 16,30 | 26,00 | 20,00 | ab 116,56 € |
|
10170211 (DIN173-K 16.50X20) |
K | 16,50 | 26,00 | 20,00 | ab 116,56 € |
|
10170212 (DIN173-K 16.60X20) |
K | 16,60 | 26,00 | 20,00 | ab 116,56 € |
|
10170213 (DIN173-K 16.70X20) |
K | 16,70 | 26,00 | 20,00 | ab 116,56 € |
|
10170214 (DIN173-K 17.00X20) |
K | 17,00 | 26,00 | 20,00 | ab 116,56 € |
|
10170215 (DIN173-K 17.10X20) |
K | 17,10 | 26,00 | 20,00 | ab 116,56 € |
|
10170216 (DIN173-K 17.50X20) |
K | 17,50 | 26,00 | 20,00 | ab 116,56 € |
|
10170217 (DIN173-K 17.70X20) |
K | 17,70 | 26,00 | 20,00 | ab 116,56 € |
|
10170218 (DIN173-K 17.80X20) |
K | 17,80 | 26,00 | 20,00 | ab 116,56 € |
|
10170219 (DIN173-K 17.90X20) |
K | 17,90 | 26,00 | 20,00 | ab 116,56 € |
|
10170220 (DIN173-K 18.00X20) |
K | 18,00 | 26,00 | 20,00 | ab 116,56 € |
|
10171525 (DIN173-L 06.10X25) |
L | 6,10 | 12,00 | 25,00 | ab 124,13 € |
|
10171526 (DIN173-L 06.20X25) |
L | 6,20 | 12,00 | 25,00 | ab 124,13 € |
|
10171527 (DIN173-L 06.30X25) |
L | 6,30 | 12,00 | 25,00 | ab 124,13 € |
|
10171528 (DIN173-L 06.40X25) |
L | 6,40 | 12,00 | 25,00 | ab 124,13 € |
|
10171529 (DIN173-L 06.50X25) |
L | 6,50 | 12,00 | 25,00 | ab 124,13 € |
|
10171530 (DIN173-L 06.60X25) |
L | 6,60 | 12,00 | 25,00 | ab 124,13 € |
|
10171531 (DIN173-L 06.70X25) |
L | 6,70 | 12,00 | 25,00 | ab 124,13 € |
|
10171532 (DIN173-L 06.80X25) |
L | 6,80 | 12,00 | 25,00 | ab 124,13 € |
|
10171533 (DIN173-L 06.90X25) |
L | 6,90 | 12,00 | 25,00 | ab 124,13 € |
|
10171534 (DIN173-L 07.00X25) |
L | 7,00 | 12,00 | 25,00 | ab 124,13 € |
|
10171535 (DIN173-L 07.10X25) |
L | 7,10 | 12,00 | 25,00 | ab 124,13 € |
|
10171536 (DIN173-L 07.20X25) |
L | 7,20 | 12,00 | 25,00 | ab 124,13 € |
|
10171537 (DIN173-L 07.30X25) |
L | 7,30 | 12,00 | 25,00 | ab 124,13 € |
|
10171538 (DIN173-L 07.40X25) |
L | 7,40 | 12,00 | 25,00 | ab 124,13 € |
|
10171539 (DIN173-L 07.50X25) |
L | 7,50 | 12,00 | 25,00 | ab 124,13 € |
|
10171540 (DIN173-L 07.60X25) |
L | 7,60 | 12,00 | 25,00 | ab 124,13 € |
|
10171541 (DIN173-L 07.70X25) |
L | 7,70 | 12,00 | 25,00 | ab 124,13 € |
|
10171542 (DIN173-L 07.80X25) |
L | 7,80 | 12,00 | 25,00 | ab 124,13 € |
|
10171543 (DIN173-L 07.90X25) |
L | 7,90 | 12,00 | 25,00 | ab 124,13 € |
|
10171544 (DIN173-L 08.00X25) |
L | 8,00 | 12,00 | 25,00 | ab 124,13 € |
|
10170675 (DIN173-K 06.10X25) |
K | 6,10 | 12,00 | 25,00 | ab 128,41 € |
|
10170676 (DIN173-K 06.20X25) |
K | 6,20 | 12,00 | 25,00 | ab 128,41 € |
|
10170677 (DIN173-K 06.30X25) |
K | 6,30 | 12,00 | 25,00 | ab 128,41 € |
|
10170678 (DIN173-K 06.40X25) |
K | 6,40 | 12,00 | 25,00 | ab 128,41 € |
|
10170679 (DIN173-K 06.50X25) |
K | 6,50 | 12,00 | 25,00 | ab 128,41 € |
|
10170680 (DIN173-K 06.60X25) |
K | 6,60 | 12,00 | 25,00 | ab 128,41 € |
|
10170681 (DIN173-K 06.70X25) |
K | 6,70 | 12,00 | 25,00 | ab 128,41 € |
|
10170682 (DIN173-K 06.80X25) |
K | 6,80 | 12,00 | 25,00 | ab 128,41 € |
|
10170683 (DIN173-K 06.90X25) |
K | 6,90 | 12,00 | 25,00 | ab 128,41 € |
|
10170684 (DIN173-K 07.00X25) |
K | 7,00 | 12,00 | 25,00 | ab 128,41 € |
|
10170685 (DIN173-K 07.10X25) |
K | 7,10 | 12,00 | 25,00 | ab 128,41 € |
|
10170686 (DIN173-K 07.20X25) |
K | 7,20 | 12,00 | 25,00 | ab 128,41 € |
|
10170687 (DIN173-K 07.30X25) |
K | 7,30 | 12,00 | 25,00 | ab 128,41 € |
|
10170688 (DIN173-K 07.40X25) |
K | 7,40 | 12,00 | 25,00 | ab 128,41 € |
|
10170689 (DIN173-K 07.50X25) |
K | 7,50 | 12,00 | 25,00 | ab 128,41 € |
|
10170690 (DIN173-K 07.60X25) |
K | 7,60 | 12,00 | 25,00 | ab 128,41 € |
|
10170691 (DIN173-K 07.70X25) |
K | 7,70 | 12,00 | 25,00 | ab 128,41 € |
|
10170692 (DIN173-K 07.80X25) |
K | 7,80 | 12,00 | 25,00 | ab 128,41 € |
|
10170693 (DIN173-K 07.90X25) |
K | 7,90 | 12,00 | 25,00 | ab 128,41 € |
|
10170694 (DIN173-K 08.00X25) |
K | 8,00 | 12,00 | 25,00 | ab 128,41 € |
|
10171545 (DIN173-L 08.10X36) |
L | 8,10 | 15,00 | 36,00 | ab 130,04 € |
|
10171546 (DIN173-L 08.20X36) |
L | 8,20 | 15,00 | 36,00 | ab 130,04 € |
|
10171547 (DIN173-L 08.30X36) |
L | 8,30 | 15,00 | 36,00 | ab 130,04 € |
|
10171548 (DIN173-L 08.40X36) |
L | 8,40 | 15,00 | 36,00 | ab 130,04 € |
|
10171549 (DIN173-L 08.50X36) |
L | 8,50 | 15,00 | 36,00 | ab 130,04 € |
|
10171550 (DIN173-L 08.60X36) |
L | 8,60 | 15,00 | 36,00 | ab 130,04 € |
|
10171551 (DIN173-L 08.70X36) |
L | 8,70 | 15,00 | 36,00 | ab 130,04 € |
|
10171552 (DIN173-L 08.80X36) |
L | 8,80 | 15,00 | 36,00 | ab 130,04 € |
|
10171553 (DIN173-L 08.90X36) |
L | 8,90 | 15,00 | 36,00 | ab 130,04 € |
|
10171554 (DIN173-L 09.00X36) |
L | 9,00 | 15,00 | 36,00 | ab 130,04 € |
|
10171555 (DIN173-L 09.10X36) |
L | 9,10 | 15,00 | 36,00 | ab 130,04 € |
|
10171556 (DIN173-L 09.20X36) |
L | 9,20 | 15,00 | 36,00 | ab 130,04 € |
|
10171557 (DIN173-L 09.30X36) |
L | 9,30 | 15,00 | 36,00 | ab 130,04 € |
|
10171558 (DIN173-L 09.40X36) |
L | 9,40 | 15,00 | 36,00 | ab 130,04 € |
|
10171559 (DIN173-L 09.50X36) |
L | 9,50 | 15,00 | 36,00 | ab 130,04 € |
|
10171560 (DIN173-L 09.60X36) |
L | 9,60 | 15,00 | 36,00 | ab 130,04 € |
|
10171561 (DIN173-L 09.70X36) |
L | 9,70 | 15,00 | 36,00 | ab 130,04 € |
|
10171562 (DIN173-L 09.80X36) |
L | 9,80 | 15,00 | 36,00 | ab 130,04 € |
|
10171563 (DIN173-L 09.90X36) |
L | 9,90 | 15,00 | 36,00 | ab 130,04 € |
|
10171564 (DIN173-L 10.00X36) |
L | 10,00 | 15,00 | 36,00 | ab 130,04 € |
|
10171313 (DIN173-L 12.10X36) |
L | 12,10 | 22,00 | 36,00 | ab 132,49 € |
|
10171314 (DIN173-L 12.20X36) |
L | 12,20 | 22,00 | 36,00 | ab 132,49 € |
|
10171315 (DIN173-L 12.30X36) |
L | 12,30 | 22,00 | 36,00 | ab 132,49 € |
|
10171316 (DIN173-L 12.40X36) |
L | 12,40 | 22,00 | 36,00 | ab 132,49 € |
|
10171317 (DIN173-L 12.50X36) |
L | 12,50 | 22,00 | 36,00 | ab 132,49 € |
|
10171318 (DIN173-L 12.60X36) |
L | 12,60 | 22,00 | 36,00 | ab 132,49 € |
|
10171319 (DIN173-L 12.70X36) |
L | 12,70 | 22,00 | 36,00 | ab 132,49 € |
|
10171320 (DIN173-L 12.80X36) |
L | 12,80 | 22,00 | 36,00 | ab 132,49 € |
|
10171321 (DIN173-L 12.90X36) |
L | 12,90 | 22,00 | 36,00 | ab 132,49 € |
|
10171322 (DIN173-L 13.00X36) |
L | 13,00 | 22,00 | 36,00 | ab 132,49 € |
|
10171323 (DIN173-L 13.10X36) |
L | 13,10 | 22,00 | 36,00 | ab 132,49 € |
|
10171324 (DIN173-L 13.40X36) |
L | 13,40 | 22,00 | 36,00 | ab 132,49 € |
|
10171325 (DIN173-L 13.50X36) |
L | 13,50 | 22,00 | 36,00 | ab 132,49 € |
|
10171326 (DIN173-L 13.60X36) |
L | 13,60 | 22,00 | 36,00 | ab 132,49 € |
|
10171327 (DIN173-L 13.70X36) |
L | 13,70 | 22,00 | 36,00 | ab 132,49 € |
|
10171328 (DIN173-L 13.80X36) |
L | 13,80 | 22,00 | 36,00 | ab 132,49 € |
|
10171329 (DIN173-L 14.00X36) |
L | 14,00 | 22,00 | 36,00 | ab 132,49 € |
|
10171330 (DIN173-L 14.10X36) |
L | 14,10 | 22,00 | 36,00 | ab 132,49 € |
|
10171331 (DIN173-L 14.20X36) |
L | 14,20 | 22,00 | 36,00 | ab 132,49 € |
|
10171332 (DIN173-L 14.30X36) |
L | 14,30 | 22,00 | 36,00 | ab 132,49 € |
|
10171333 (DIN173-L 14.40X36) |
L | 14,40 | 22,00 | 36,00 | ab 132,49 € |
|
10171334 (DIN173-L 14.50X36) |
L | 14,50 | 22,00 | 36,00 | ab 132,49 € |
|
10171335 (DIN173-L 14.60X36) |
L | 14,60 | 22,00 | 36,00 | ab 132,49 € |
|
10171336 (DIN173-L 14.70X36) |
L | 14,70 | 22,00 | 36,00 | ab 132,49 € |
|
10171337 (DIN173-L 14.80X36) |
L | 14,80 | 22,00 | 36,00 | ab 132,49 € |
|
10171338 (DIN173-L 14.90X36) |
L | 14,90 | 22,00 | 36,00 | ab 132,49 € |
|
10171339 (DIN173-L 15.00X36) |
L | 15,00 | 22,00 | 36,00 | ab 132,49 € |
|
10170463 (DIN173-K 12.10X36) |
K | 12,10 | 22,00 | 36,00 | ab 135,22 € |
|
10170464 (DIN173-K 12.20X36) |
K | 12,20 | 22,00 | 36,00 | ab 135,22 € |
|
10170465 (DIN173-K 12.30X36) |
K | 12,30 | 22,00 | 36,00 | ab 135,22 € |
|
10170466 (DIN173-K 12.40X36) |
K | 12,40 | 22,00 | 36,00 | ab 135,22 € |
|
10170467 (DIN173-K 12.50X36) |
K | 12,50 | 22,00 | 36,00 | ab 135,22 € |
|
10170468 (DIN173-K 12.60X36) |
K | 12,60 | 22,00 | 36,00 | ab 135,22 € |
|
10170469 (DIN173-K 12.70X36) |
K | 12,70 | 22,00 | 36,00 | ab 135,22 € |
|
10170470 (DIN173-K 12.80X36) |
K | 12,80 | 22,00 | 36,00 | ab 135,22 € |
|
10170471 (DIN173-K 12.90X36) |
K | 12,90 | 22,00 | 36,00 | ab 135,22 € |
|
10170472 (DIN173-K 13.00X36) |
K | 13,00 | 22,00 | 36,00 | ab 135,22 € |
|
10170473 (DIN173-K 13.10X36) |
K | 13,10 | 22,00 | 36,00 | ab 135,22 € |
|
10170474 (DIN173-K 13.40X36) |
K | 13,40 | 22,00 | 36,00 | ab 135,22 € |
|
10170475 (DIN173-K 13.50X36) |
K | 13,50 | 22,00 | 36,00 | ab 135,22 € |
|
10170476 (DIN173-K 13.60X36) |
K | 13,60 | 22,00 | 36,00 | ab 135,22 € |
|
10170477 (DIN173-K 13.70X36) |
K | 13,70 | 22,00 | 36,00 | ab 135,22 € |
|
10170478 (DIN173-K 13.80X36) |
K | 13,80 | 22,00 | 36,00 | ab 135,22 € |
|
10170479 (DIN173-K 14.00X36) |
K | 14,00 | 22,00 | 36,00 | ab 135,22 € |
|
10170480 (DIN173-K 14.10X36) |
K | 14,10 | 22,00 | 36,00 | ab 135,22 € |
|
10170481 (DIN173-K 14.20X36) |
K | 14,20 | 22,00 | 36,00 | ab 135,22 € |
|
10170482 (DIN173-K 14.30X36) |
K | 14,30 | 22,00 | 36,00 | ab 135,22 € |
|
10170483 (DIN173-K 14.40X36) |
K | 14,40 | 22,00 | 36,00 | ab 135,22 € |
|
10170484 (DIN173-K 14.50X36) |
K | 14,50 | 22,00 | 36,00 | ab 135,22 € |
|
10170485 (DIN173-K 14.60X36) |
K | 14,60 | 22,00 | 36,00 | ab 135,22 € |
|
10170486 (DIN173-K 14.70X36) |
K | 14,70 | 22,00 | 36,00 | ab 135,22 € |
|
10170487 (DIN173-K 14.80X36) |
K | 14,80 | 22,00 | 36,00 | ab 135,22 € |
|
10170488 (DIN173-K 14.90X36) |
K | 14,90 | 22,00 | 36,00 | ab 135,22 € |
|
10170489 (DIN173-K 15.00X36) |
K | 15,00 | 22,00 | 36,00 | ab 135,22 € |
|
10170695 (DIN173-K 08.10X36) |
K | 8,10 | 15,00 | 36,00 | ab 135,97 € |
|
10170696 (DIN173-K 08.20X36) |
K | 8,20 | 15,00 |
