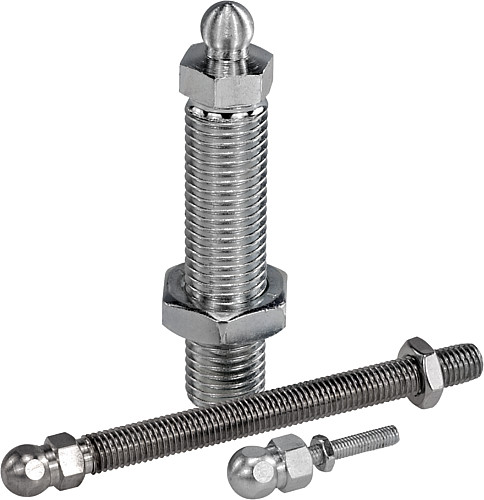

K0421 Gewindespindeln für Gelenkfüße aus Stahl oder Edelstahl

Artikelnummer: 10067439
Hersteller: Kipp
Herstellerartikelnummer: K0421.060151

Artikel ist in 66 Varianten verfügbar. Diese unterscheiden sich in ihren Merkmalen.

Staffelpreise
ab Menge Preis
1 1,58 €
50 1,50 €
100 1,42 €
250 1,34 €
500 1,26 €
1000 1,19 €
1,58 €

zzgl. Mwst. und Versandkosten

Waren- / Anfragekorb

Hinweis: Fügen Sie auch Artikel
dem Warenkorb hinzu, um sich
ein Angebot erstellen zu lassen.


Beschreibung

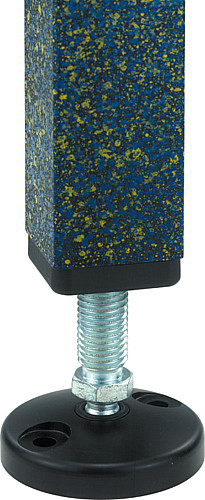

Werkstoff: Stahl oder Edelstahl 1.4301. Ausführung: Stahl blau chromatiert. Edelstahl blank. Bestellbeispiel: K0421.060151 K0421.060151 und K0415.1030 montiert Bestellhinweis: Soll die Gewindespindel und der Gelenkfußteller montiert geliefert werden, bitte die Bestellnummer der Spindel und des Tellers mit dem Zusatz "montiert" angeben. (z.B. K0421.060151 und K0415.1030 montiert.) Hinweis: Gelenkfüße werden aus einer Gewindespindel und einem Teller zusammengestellt. Jede Gewindespindel kann mit jedem Teller kombiniert werden. Die Höhe des gesamten Gelenkfußes berechnet sich aus der Länge der Gewindespindel + Höhe des Sechskants + 22,5 mm. (Gesamthöhe Gelenkfuß = L + L1 + 22,5 mm)

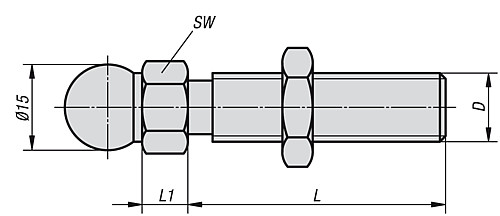

Eigenschaften

Material : Stahl
D : M6
L : 15
L1 : 7,5
SW : 14
Gewicht ca. kg : 0,009
Belastbarkeit max. kN : 2


Artikelvarianten

Variante Material D L L1 SW Gewicht ca. kg Belastbarkeit max. kN Preis
Stahl M6 15 7,5 14 0,009 2
ab 1,19 €
Stahl M6 30 7,5 14 0,011 2
ab 1,19 €
Stahl M8 40 7,5 14 0,036 3,5
ab 1,37 €
Stahl M8 80 7,5 14 0,049 3,5
ab 1,55 €
Stahl M10 45 7,5 14 0,045 4,7
ab 1,43 €
Stahl M10 70 7,5 14 0,055 4,7
ab 1,48 €
Stahl M10 90 7,5 14 0,068 4,7
ab 1,68 €
Stahl M10 125 7,5 14 0,084 4,7
ab 2,03 €
Stahl M10 150 7,5 14 0,092 4,7
ab 2,87 €
Stahl M12 45 7,5 14 0,055 7,7
ab 1,37 €
Stahl M12 66 7,5 14 0,070 7,7
ab 1,55 €
Stahl M12 100 7,5 14 0,094 7,7
ab 1,68 €
Stahl M12 125 7,5 14 0,112 7,7
ab 1,97 €
Stahl M12 150 7,5 14 0,130 7,7
ab 2,10 €
Stahl M14 66 7,5 14 0,085 11,1
ab 2,15 €
Stahl M14 100 7,5 14 0,119 11,1
ab 2,51 €
Stahl M14 125 7,5 14 0,138 11,1
ab 3,11 €
Stahl M14 150 7,5 14 0,166 11,1
ab 4,07 €
Stahl M16 66 7,5 17 0,112 14,5
ab 2,21 €
Stahl M16 100 7,5 17 0,156 14,5
ab 2,39 €
Stahl M16 125 7,5 17 0,190 14,5
ab 2,87 €
Stahl M16 150 7,5 17 0,222 14,5
ab 3,05 €
Stahl M16 200 7,5 17 0,285 14,5
ab 4,55 €
Stahl M20 85 10,5 22 0,208 24,3
ab 3,59 €
Stahl M20 100 10,5 22 0,237 24,3
ab 3,82 €
Stahl M20 125 10,5 22 0,297 24,3
ab 4,18 €
Stahl M20 150 10,5 22 0,341 24,3
ab 4,55 €
Stahl M20 200 10,5 22 0,447 24,3
ab 5,49 €
Stahl M24 85 10,5 24 0,293 36,1
ab 4,29 €
Stahl M24 100 10,5 24 0,336 36,1
ab 4,85 €
Stahl M24 125 10,5 24 0,408 36,1
ab 5,33 €
Stahl M24 150 10,5 24 0,483 36,1
ab 5,71 €
Stahl M24 200 10,5 24 0,633 36,1
ab 6,62 €
Edelstahl M6 15 7,5 14 0,009 2
ab 1,53 €
Edelstahl M6 30 7,5 14 0,011 2
ab 1,53 €
Edelstahl M8 40 7,5 14 0,036 3,5
ab 2,43 €
Edelstahl M8 80 7,5 14 0,049 3,5
ab 3,40 €
Edelstahl M10 45 7,5 14 0,045 4,7
ab 2,48 €
Edelstahl M10 70 7,5 14 0,055 4,7
ab 2,99 €
Edelstahl M10 90 7,5 14 0,068 4,7
ab 3,45 €
Edelstahl M10 125 7,5 14 0,084 4,7
ab 4,62 €
Edelstahl M10 150 7,5 14 0,092 4,7
ab 4,93 €
Edelstahl M12 45 7,5 14 0,055 7,7
ab 2,48 €
Edelstahl M12 66 7,5 14 0,070 7,7
ab 2,99 €
Edelstahl M12 100 7,5 14 0,094 7,7
ab 3,35 €
Edelstahl M12 125 7,5 14 0,112 7,7
ab 4,43 €
Edelstahl M12 150 7,5 14 0,130 7,7
ab 5,60 €
Edelstahl M14 66 7,5 14 0,085 11,1
ab 4,62 €
Edelstahl M14 100 7,5 14 0,119 11,1
ab 5,11 €
Edelstahl M14 125 7,5 14 0,138 11,1
ab 5,43 €
Edelstahl M14 150 7,5 14 0,166 11,1
ab 6,09 €
Edelstahl M16 66 7,5 17 0,112 14,5
ab 4,50 €
Edelstahl M16 100 7,5 17 0,156 14,5
ab 4,80 €
Edelstahl M16 125 7,5 17 0,190 14,5
ab 6,19 €
Edelstahl M16 150 7,5 17 0,222 14,5
ab 7,04 €
Edelstahl M16 200 7,5 17 0,285 14,5
ab 10,71 €
Edelstahl M20 85 10,5 22 0,208 24,3
ab 8,15 €
Edelstahl M20 100 10,5 22 0,237 24,3
ab 7,91 €
Edelstahl M20 125 10,5 22 0,297 24,3
ab 8,27 €
Edelstahl M20 150 10,5 22 0,341 24,3
ab 8,92 €
Edelstahl M20 200 10,5 22 0,447 24,3
ab 9,22 €
Edelstahl M24 85 10,5 24 0,293 36,1
ab 9,98 €
Edelstahl M24 100 10,5 24 0,336 36,1
ab 10,10 €
Edelstahl M24 125 10,5 24 0,408 36,1
ab 10,94 €
Edelstahl M24 150 10,5 24 0,483 36,1
ab 10,94 €
Edelstahl M24 200 10,5 24 0,633 36,1
ab 11,46 €
