Produktnummer:
10136161
Herstellernummer:
28028-219014
Hersteller:
Norelem
Norelem 28028-219014 SECHSKANT VERSCHLUSSSCHRAUBEN, D=19,5, D1=G 1/4, FORM B
Anziehdrehmoment max. Nm:
5
D:
19,5
D1:
G 1/4
Form:
B
Gewicht ca. kg:
0,002
L:
7
L1:
9
SW:
17

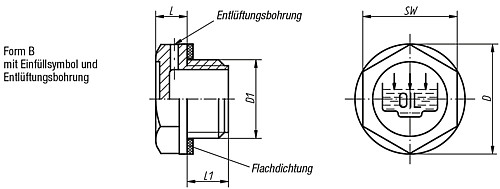

NLM 28028_B Sechskant Verschlussschrauben Form B
Beschreibung
Werkstoff:
Thermoplast, Polyamid 66.
Ausführung:
schwarz, Flachdichtung asbestfrei.
Hinweis:
Temperaturbeständig bei Öl bis 100 °C, bei Wasser bis 70 °C.
Thermoplast, Polyamid 66.
Ausführung:
schwarz, Flachdichtung asbestfrei.
Hinweis:
Temperaturbeständig bei Öl bis 100 °C, bei Wasser bis 70 °C.
Eigenschaften
| Anziehdrehmoment max. Nm: | 5 |
|---|---|
| D: | 19,5 |
| D1: | G 1/4 |
| Form: | B |
| Gewicht ca. kg: | 0,002 |
| L: | 7 |
| L1: | 9 |
| SW: | 17 |
Dokumente
1
| Variante | Form | SW | D1 | L | Gewicht ca. kg | L1 | D | Anziehdrehmoment max. Nm | Preis |
|---|---|---|---|---|---|---|---|---|---|
|
10136161 (28028-219014) |
B | 17 | G 1/4 | 7 | 0,002 | 9 | 19,5 | 5 | ab 0,49 € |
|
10136169 (28028-2191415) |
B | 17 | M14x1,5 | 7 | 0,002 | 9 | 19,5 | 5 | ab 0,49 € |
|
10136162 (28028-222038) |
B | 18 | G 3/8 | 7,5 | 0,004 | 10 | 22 | 8 | ab 0,54 € |
|
10136170 (28028-2211615) |
B | 18 | M16x1,5 | 7,5 | 0,004 | 10 | 21 | 6 | ab 0,56 € |
|
10136171 (28028-2261815) |
B | 21 | M18x1,5 | 7,5 | 0,004 | 10 | 26 | 7 | ab 0,56 € |
|
10136163 (28028-228012) |
B | 24 | G 1/2 | 7,5 | 0,006 | 11 | 28 | 9 | ab 0,63 € |
|
10136172 (28028-2282015) |
B | 24 | M20x1,5 | 8 | 0,006 | 10 | 28 | 8 | ab 0,63 € |
|
10136173 (28028-2282215) |
B | 24 | M22x1,5 | 8 | 0,006 | 11 | 28 | 10 | ab 0,65 € |
|
10136164 (28028-234034) |
B | 30 | G 3/4 | 9 | 0,008 | 11 | 34 | 11 | ab 0,92 € |
|
10136165 (28028-242100) |
B | 35 | G 1 | 10,5 | 0,018 | 12 | 42 | - | ab 1,19 € |
|
10136166 (28028-251114) |
B | 42 | G 1 1/4 | 12 | 0,026 | 13,5 | 51 | - | ab 1,79 € |
|
10136167 (28028-258112) |
B | 50 | G 1 1/2 | 10 | 0,030 | 14,5 | 58 | - | ab 2,25 € |
|
10136168 (28028-274200) |
B | 64 | G 2 | 13,5 | 0,054 | 16 | 74 | - | ab 3,27 € |
