Produktnummer:
10193326
Herstellernummer:
442-22-G3/8-1-BL
Hersteller:
Ganter
Ganter 442-22-G3/8-1-BL VERSCHLUßSCHRAUBE
Außendurchmesser (d1):
22
Entlüftungsbohrung (Kennziffer):
1
Farbe:
-
Farbe (Oberfläche):
BL
Gewinde (d2):
G 3/8
Gewinde (d2_2):
M 16 x 1,5
| Anzahl | *Preis |
|---|---|
| Bis 129 |
3,28 €
|
| Bis 180 |
2,96 €
|
| Bis 232 |
2,63 €
|
| Ab 233 |
2,31 €
|
Produktnummer:
10193326

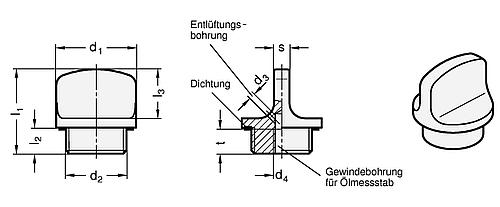

GN 442 Verschlussschrauben bis 200 °C, Aluminium
Beschreibung
Verschussschrauben GN 442 sind mit dem Außendurchmesser d1 auf Einschraublöcher für Rohrverschraubungen DIN 3852
abgestimmt.
Der Dichtring ist in einem radialen und planseitigen Einstich eingebettet. Dadurch ist die Dichtung nicht verlierbar und kann beim Anziehen nicht herausgequetscht werden.
abgestimmt.
Der Dichtring ist in einem radialen und planseitigen Einstich eingebettet. Dadurch ist die Dichtung nicht verlierbar und kann beim Anziehen nicht herausgequetscht werden.
Eigenschaften
| Außendurchmesser (d1): | 22 |
|---|---|
| Entlüftungsbohrung (Kennziffer): | 1 |
| Farbe: | - |
| Farbe (Oberfläche): | BL |
| Gewinde (d2): | G 3/8 |
| Gewinde (d2_2): | M 16 x 1,5 |
Dokumente
1
| Variante | Farbe | Farbe (Oberfläche) | Außendurchmesser (d1) | Gewinde (d2) | Entlüftungsbohrung (Kennziffer) | Gewinde (d2_2) | Preis |
|---|---|---|---|---|---|---|---|
|
10193326 (442-22-G3/8-1-BL) |
- | BL | 22 | G 3/8 | 1 | M 16 x 1,5 | ab 3,28 € |
|
10290611 (442-22-M16X1,5-1-BL) |
BL | - | - | - | - | - | ab 3,28 € |
|
10290613 (442-22-M16X1,5-2-BL) |
BL | - | - | - | - | - | ab 3,83 € |
|
10290615 (442-22-G3/8-2-BL) |
BL | - | - | - | - | - | ab 3,83 € |
|
10193329 (442-22-G3/8-1-SW) |
- | SW | 22 | G 3/8 | 1 | M 16 x 1,5 | ab 3,89 € |
|
10290620 (442-22-M16X1,5-1-SW) |
SW | - | - | - | - | - | ab 3,89 € |
|
10193323 (442-32-G3/4-1-BL) |
- | BL | 32 | G 3/4 | 1 | M 26 x 1,5 | ab 3,97 € |
|
10290625 (442-32-M26X1,5-1-BL) |
BL | - | - | - | - | - | ab 3,97 € |
|
10193328 (442-26-G1/2-1-BL) |
- | BL | 26 | G 1/2 | 1 | M 20 x 1,5 | ab 4,32 € |
|
10290617 (442-26-M20X1,5-1-BL) |
BL | - | - | - | - | - | ab 4,32 € |
|
10290612 (442-22-M16X1,5-2-SW) |
SW | - | - | - | - | - | ab 4,44 € |
|
10290614 (442-22-G3/8-2-SW) |
SW | - | - | - | - | - | ab 4,44 € |
|
10290627 (442-32-M26X1,5-2-BL) |
BL | - | - | - | - | - | ab 4,53 € |
|
10290629 (442-32-G3/4-2-BL) |
BL | - | - | - | - | - | ab 4,53 € |
|
10193322 (442-32-G3/4-1-SW) |
- | SW | 32 | G 3/4 | 1 | M 26 x 1,5 | ab 4,75 € |
|
10290624 (442-32-M26X1,5-1-SW) |
SW | - | - | - | - | - | ab 4,75 € |
|
10290619 (442-26-M20X1,5-2-BL) |
BL | - | - | - | - | - | ab 4,87 € |
|
10290623 (442-26-G1/2-2-BL) |
BL | - | - | - | - | - | ab 4,87 € |
|
10193327 (442-26-G1/2-1-SW) |
- | SW | 26 | G 1/2 | 1 | M 20 x 1,5 | ab 5,03 € |
|
10290616 (442-26-M20X1,5-1-SW) |
SW | - | - | - | - | - | ab 5,03 € |
|
10193325 (442-40-G1-1-BL) |
- | BL | 40 | G 1 | 1 | - | ab 5,19 € |
|
10290626 (442-32-M26X1,5-2-SW) |
SW | - | - | - | - | - | ab 5,30 € |
|
10290628 (442-32-G3/4-2-SW) |
SW | - | - | - | - | - | ab 5,30 € |
|
10290618 (442-26-M20X1,5-2-SW) |
SW | - | - | - | - | - | ab 5,58 € |
|
10290622 (442-26-G1/2-2-SW) |
SW | - | - | - | - | - | ab 5,58 € |
|
10290621 (442-40-G1-2-BL) |
BL | - | - | - | - | - | ab 5,74 € |
|
10193324 (442-40-G1-1-SW) |
- | SW | 40 | G 1 | 1 | - | ab 6,10 € |
|
10290630 (442-40-G1-2-SW) |
SW | - | - | - | - | - | ab 6,65 € |
