Produktnummer:
10229570
Herstellernummer:
86504
Hersteller:
AMF

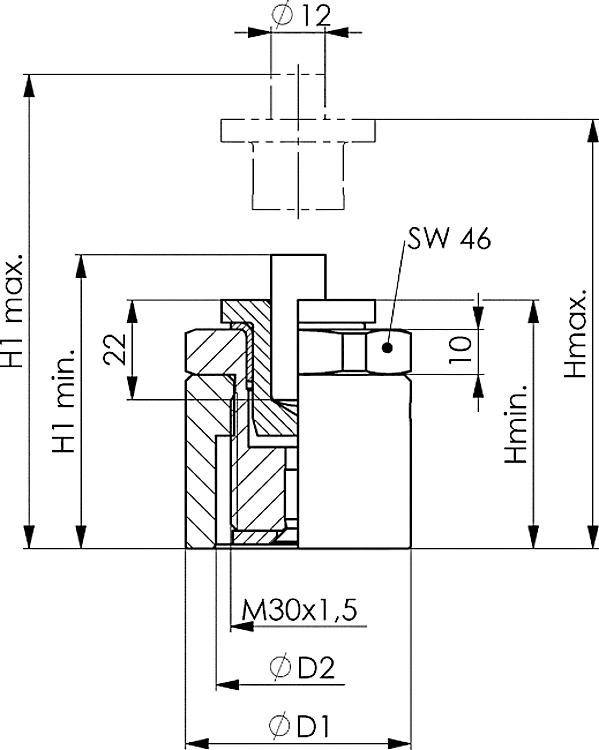

AMF 6415- 75 Höhen-Richtschraubbock, Größe : 75, H min.: 55, H max.: 75, D1: 50, F max.: 30 kN
D1:
50
D2:
36
F max.:
30 kN
Gewicht:
680 g
Größe:
75
H max.:
75
H min.:
55
mit Zylinderstift 12x50 H1min. H1max.:
83-103
mit Zylinderstift 12x80 H1min. H1max.:
113-133
Produktnummer:
10229570
LE 6415 75 Höhen-Richtschraubbock
Beschreibung

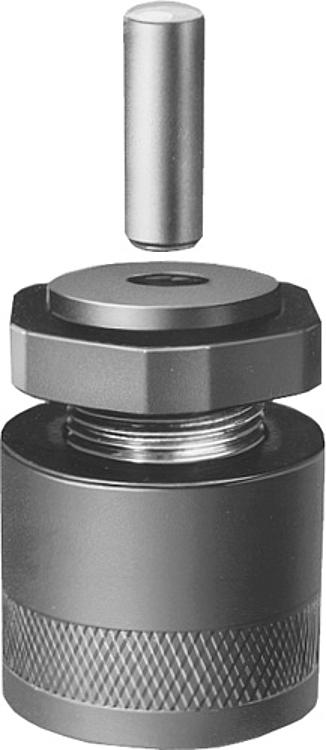

Höhen-Richtschraubbock mit je 1 Zylinderstift DIN 6325 (12x50 und 12x80). Zentrierloch Ø12 mm. Spindel: Metrisches Feingewinde M30x1,5 mit Endsicherung. Gleiteinsatz läuft auf eingepresster Gleitlagerbuchse. Vergütungsstahl, brüniert.
Eigenschaften
| D1: | 50 |
|---|---|
| D2: | 36 |
| F max.: | 30 kN |
| Gewicht: | 680 g |
| Größe: | 75 |
| H max.: | 75 |
| H min.: | 55 |
| mit Zylinderstift 12x50 H1min. H1max.: | 83-103 |
| mit Zylinderstift 12x80 H1min. H1max.: | 113-133 |
| Variante | D1 | D2 | Größe | Gewicht | F max. | mit Zylinderstift 12x50 H1min. H1max. | mit Zylinderstift 12x80 H1min. H1max. | H min. | H max. | Preis |
|---|---|---|---|---|---|---|---|---|---|---|
|
10229570 (86504) |
50 | 36 | 75 | 680 g | 30 kN | 83-103 | 113-133 | 55 | 75 | ab 153,50 € |
|
10229569 (86512) |
50 | 36 | 115 | 880 g | 30 kN | 103-143 | 133-173 | 75 | 115 | ab 161,00 € |
