GN 212 Spannhebel, Stahl
Artikelnummer: 10176785
Hersteller: Ganter
Herstellerartikelnummer: 212-22-M10-E
Artikel ist in 25 Varianten verfügbar. Diese unterscheiden sich in ihren Merkmalen.
Staffelpreise | |
---|---|
ab Menge | Preis |
1 | 10,36 € |
41 | 9,32 € |
57 | 8,29 € |
73 | 7,25 € |
10,36 €
zzgl. Mwst. und Versandkosten
Hinweis: Fügen Sie auch Artikel
dem Warenkorb hinzu, um sich
ein Angebot erstellen zu lassen.
Beschreibung
Spannhebel GN 212 werden sowohl als Spannelement als auch für Schaltvorgänge eingesetzt.
Ausführung:
• Stahl brüniert
• Kugelknöpfe DIN 319 Kunststoff, Duroplast schwarz, glänzend
• Edelstahlausführung auf Anfrage

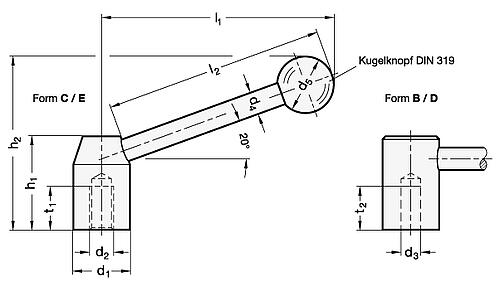

Form:
C Hebel schräg mit Bohrung H7
E Hebel schräg mit Gewinde
B* Hebel gerade mit Bohrung H7
D* Hebel gerade mit Gewinde
Eigenschaften
Form : | E |
Durchmesser (d1) : | 22 |
Griffkoerpermaterial (Werkstoff) : | ST |
Anschlussbohrung (d3) : | - |
Anschlussgewinde (d2) : | M 10 |
Artikelvarianten
Variante | Form | Durchmesser (d1) | Anschlussbohrung (d3) | Anschlussgewinde (d2) | Preis |
---|---|---|---|---|---|
E | 22 | - | M 10 |
ab 7,25 €
|
|
D | 22 | - | M 10 |
ab 7,25 €
|
|
C | 25 | B 12 | - |
ab 7,95 €
|
|
B | 25 | B 12 | - |
ab 7,95 €
|
|
E | 25 | - | M 12 |
ab 7,95 €
|
|
C | 28 | B 12 | - |
ab 8,39 €
|
|
B | 28 | B 12 | - |
ab 8,39 €
|
|
E | 28 | - | M 12 |
ab 8,39 €
|
|
C | 22 | B 10 | - |
ab 7,25 €
|
|
D | 28 | - | M 12 |
ab 8,39 €
|
|
C | 32 | B 16 | - |
ab 9,13 €
|
|
E | 32 | - | M 16 |
ab 9,13 €
|
|
C | 36 | B 16 | - |
ab 10,56 €
|
|
E | 36 | - | M 16 |
ab 10,56 €
|
|
D | 36 | - | M 16 |
ab 10,56 €
|
|
C | 40 | B 20 | - |
ab 13,62 €
|
|
B | 40 | B 20 | - |
ab 13,62 €
|
|
E | 40 | - | M 20 |
ab 13,62 €
|
|
D, Hebel gerade mit Gewinde | - | - | - |
ab 13,62 €
|
|
B, Hebel gerade mit Bohrung H7 | - | - | - |
ab 7,25 €
|
|
D, Hebel gerade mit Gewinde | - | - | - |
ab 7,95 €
|
|
B, Hebel gerade mit Bohrung H7 | - | - | - |
ab 9,13 €
|
|
D, Hebel gerade mit Gewinde | - | - | - |
ab 9,13 €
|
|
B, Hebel gerade mit Bohrung H7 | - | - | - |
ab 10,56 €
|
