Produktnummer:
10177000
Herstellernummer:
223-25-B8
Hersteller:
Ganter
Ganter 223-25-B8 SCHALTERKNEBEL
Anschlussbohrung (d2):
B 8
Keilnut (d2_2):
-
Vierkant (d2_1):
-
| Anzahl | Preis* |
|---|---|
| Bis 36 |
11,36 €
|
| Bis 51 |
10,22 €
|
| Bis 66 |
9,09 €
|
| Ab 67 |
7,95 €
|
Produktnummer:
10177000

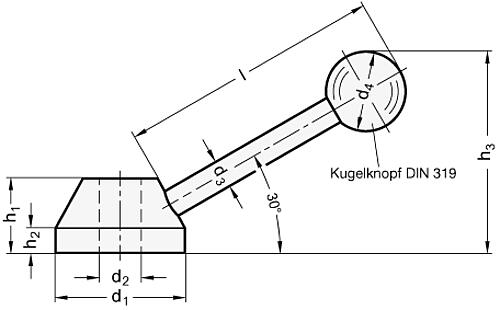

GN 223 Schalterknebel
Beschreibung
Schalterknebel GN 223 können serienmäßig auch geliefert werden mit:
Vierkant DIN 79 V + Bohrungs-Ø
Nabennut DIN 6885 K + Bohrungs-Ø
Ausführung:
• Stahl
brüniert
• Kugelknöpfe DIN 319
Kunststoff, Duroplast
schwarz, glänzend
Vierkant DIN 79 V + Bohrungs-Ø
Nabennut DIN 6885 K + Bohrungs-Ø
Ausführung:
• Stahl
brüniert
• Kugelknöpfe DIN 319
Kunststoff, Duroplast
schwarz, glänzend
Eigenschaften
| Anschlussbohrung (d2): | B 8 |
|---|---|
| Keilnut (d2_2): | - |
| Schalthebeldurchmesser: | 25 |
| Vierkant (d2_1): | - |
| Werkstoff: | ST |
Dokumente
1
| Variante | Anschlussbohrung (d2) | Vierkant (d2_1) | Keilnut (d2_2) | Preis |
|---|---|---|---|---|
|
10177000 (223-25-B8) |
B 8 | - | - | ab 7,50 € |
|
10176996 (223-32-B10) |
B 10 | - | - | ab 7,88 € |
|
10176999 (223-25-V8) |
- | V 8 | - | ab 9,08 € |
|
10177001 (223-25-K8) |
- | - | K 8 | ab 9,08 € |
|
10176991 (223-32-V10) |
- | V 10 | - | ab 9,46 € |
|
10176992 (223-32-K10) |
- | - | K 10 | ab 9,46 € |
|
10176997 (223-40-B12) |
B 12 | - | - | ab 9,72 € |
|
10176993 (223-40-V12) |
- | V 12 | - | ab 11,31 € |
|
10176994 (223-40-K12) |
- | - | K 12 | ab 11,31 € |
|
10176998 (223-52-B16) |
B 16 | - | - | ab 12,90 € |
|
10176990 (223-52-K16) |
- | - | K 16 | ab 14,49 € |
|
10176995 (223-52-V16) |
- | V 16 | - | ab 14,49 € |
