Produktnummer:
10182943
Herstellernummer:
6335.1-80-M16-E
Hersteller:
Ganter

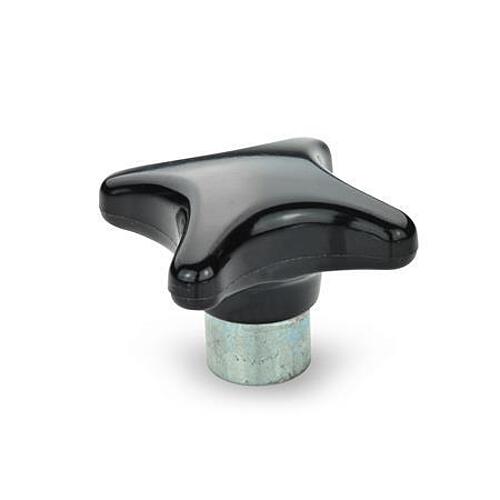

Ganter 6335.1-80-M16-E KREUZGRIFF
Bohrungsdurchmesser (d3):
-
Form:
E
Gewinde (d2):
M 16
Griffdurchmesser (d1):
80
Werkstoff:
KU
| Anzahl | Preis* |
|---|---|
| Bis 67 |
6,22 €
|
| Bis 94 |
5,60 €
|
| Bis 121 |
4,98 €
|
| Ab 122 |
4,35 €
|
Produktnummer:
10182943
GN 6335.1 Kreuzgriffe, Duroplast
Beschreibung

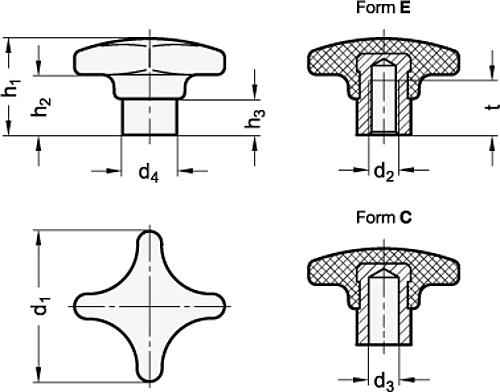

Kreuzgriffe GN 6335.1 mit vorstehender Stahlbuchse (Grundmaße wie DIN 6335) weisen entscheidende Vorteile auf:
Die Auflagefläche steht genau senkrecht zur Bohrung und ist mit vollem Durchmesser aus Stahl. Die vorstehende Stahlbuchse erlaubt eine einwandfreie Querstiftverbindung.
Die Auflagefläche steht genau senkrecht zur Bohrung und ist mit vollem Durchmesser aus Stahl. Die vorstehende Stahlbuchse erlaubt eine einwandfreie Querstiftverbindung.
Eigenschaften
| Bohrungsdurchmesser (d3): | - |
|---|---|
| Form: | E |
| Gewinde (d2): | M 16 |
| Griffdurchmesser (d1): | 80 |
| Werkstoff: | KU |
Dokumente
1
| Variante | Form | Gewinde (d2) | Werkstoff | Griffdurchmesser (d1) | Bohrungsdurchmesser (d3) | Preis |
|---|---|---|---|---|---|---|
|
10182937 (6335.1-40-M8-E) |
E | M 8 | KU | 40 | - | ab 1,04 € |
|
10182941 (6335.1-32-B6-C) |
C | M 6 | KU | 32 | B 6 | ab 1,27 € |
|
10182936 (6335.1-32-M6-E) |
E | M 6 | KU | 32 | - | ab 1,31 € |
|
10182938 (6335.1-40-B6-C) |
C | M 8 | KU | 40 | B 6 | ab 1,45 € |
|
10182939 (6335.1-40-B8-C) |
C | M 8 | KU | 40 | B 8 | ab 1,45 € |
|
10182942 (6335.1-50-B8-C) |
C | M 10 | KU | 50 | B 8 | ab 1,88 € |
|
10182944 (6335.1-50-B10-C) |
C | M 10 | KU | 50 | B 10 | ab 1,88 € |
|
10182940 (6335.1-50-M10-E) |
E | M 10 | KU | 50 | - | ab 1,95 € |
|
10182946 (6335.1-63-B10-C) |
C | M 12 | KU | 63 | B 10 | ab 2,40 € |
|
10182947 (6335.1-63-B12-C) |
C | M 12 | KU | 63 | B 12 | ab 2,40 € |
|
10182945 (6335.1-63-M12-E) |
E | M 12 | KU | 63 | - | ab 2,49 € |
|
10182948 (6335.1-80-B16-C) |
C | M 16 | KU | 80 | B 16 | ab 3,97 € |
|
10182943 (6335.1-80-M16-E) |
E | M 16 | KU | 80 | - | ab 4,11 € |
