Produktnummer:
10212584
Herstellernummer:
22591.0016
Hersteller:
Halder

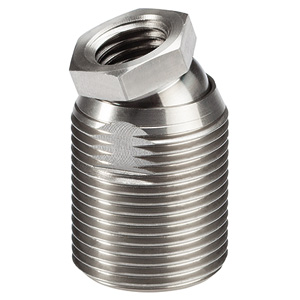

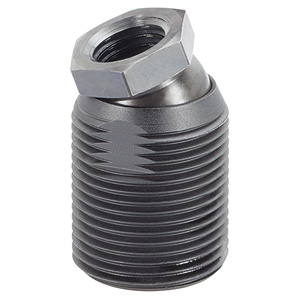

Halder 22591.0016 Gelenkschraube M 16 / M 30 x 2Stahl
Material:
Stahl
d1:
M30 x 2
d2:
M16
| Anzahl | Preis* |
|---|---|
| Bis 13 |
30,75 €
|
| Bis 19 |
27,68 €
|
| Bis 24 |
24,60 €
|
| Ab 25 |
22,66 €
|
Produktnummer:
10212584
EH 22050 Gelenkschrauben
Beschreibung

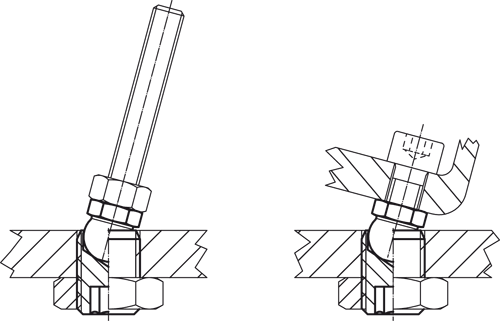

Werkstoff: Hülse: Vergütungs, Stahl vergütet, brüniert, rostfreier Stahl 1.4305 Kugelelement:, Automatenstahl, induktivgehärtet, rostfreier Stahl 1.4305 Hinweis: Als einschraubbares Fuß- und Druckstück verwendbar. Kompakte Ausführung zum einfachen Nivellieren mittels Schlüsselfläche an der Hülse bzw. mittels Innensechskant. Die Gelenkschrauben dürfen ausschließlich auf Druck belastet werden.

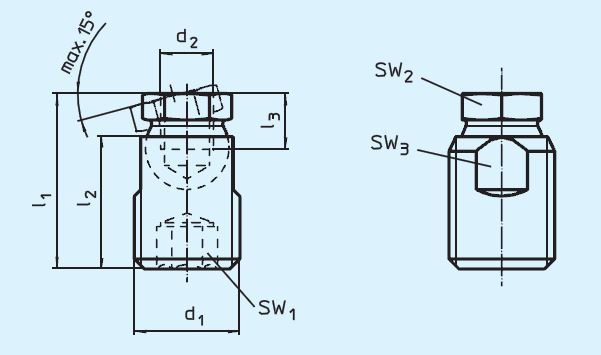

Eigenschaften
| Belastbarkeit bei statischer Belastung kN max.: | 45 |
|---|---|
| Gewicht (g): | 165 |
| Material: | Stahl |
| SW1: | 12 |
| SW2: | 24 |
| SW3: | 27 |
| d1: | M30 x 2 |
| d2: | M16 |
| l1 ±0,5: | 47,4 |
| l2 (mm): | 36 |
| l3 min.: | 13,5 |
Dokumente
1
| Variante | Material | d1 | d2 | Preis |
|---|---|---|---|---|
|
10212580 (22591.0006) |
Stahl | M12 | M6 | ab 10,25 € |
|
10212585 (22591.0206) |
rostfreier Stahl | M12 | M6 | ab 10,85 € |
|
10212581 (22591.0008) |
Stahl | M16 | M8 | ab 12,35 € |
|
10212586 (22591.0208) |
rostfreier Stahl | M16 | M8 | ab 13,35 € |
|
10212582 (22591.0010) |
Stahl | M24 | M10 | ab 15,45 € |
|
10212587 (22591.0210) |
rostfreier Stahl | M24 | M10 | ab 16,40 € |
|
10212583 (22591.0012) |
Stahl | M24 | M12 | ab 20,90 € |
|
10212588 (22591.0212) |
rostfreier Stahl | M24 | M12 | ab 21,75 € |
|
10212584 (22591.0016) |
Stahl | M30 x 2 | M16 | ab 30,75 € |
|
10212589 (22591.0216) |
rostfreier Stahl | M30 x 2 | M16 | ab 37,10 € |
