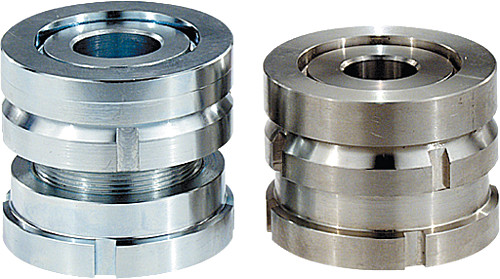

Kipp K0695.0406 KUGEL AUSGLEICHSELEMENT
A:
4°
B:
5
D:
6,6
D1:
M15x1
D2:
25
F kN:
40
H max.:
26
H min.:
22
M:
2
Material:
Stahl
N:
4
für Schraube:
M6
| Anzahl | Preis* |
|---|---|
| Bis 99 |
40,94 €
|
| Bis 249 |
39,71 €
|
| Bis 499 |
38,89 €
|
| Bis 999 |
36,85 €
|
| Ab 1000 |
34,80 €
|
Produktnummer:
10071398
K0695 Kugel Ausgleichselemente
Beschreibung
Werkstoff:
Normalausführung 1.7225, Edelstahlausführung 1.4305.
Ausführung:
Normalausführung galvanisch verzinkt, blau chromatiert. Edelstahlausführung blank.
Bestellbeispiel:
K0695.0406
Hinweis:
Die Kugel-Ausgleichselemente finden dort Verwendung, wo es um die Aufstellung und das Ausrichten von Motoren, Aggregaten, Antriebselementen und Fertigungsstraßen geht. Durch die Kugelausgleichsscheiben kann eine exakte Anlage bei der Montage von schrägen Auflageflächen bis zu einem Neigungswinkel von ca. 4° erfolgen.
Normalausführung 1.7225, Edelstahlausführung 1.4305.
Ausführung:
Normalausführung galvanisch verzinkt, blau chromatiert. Edelstahlausführung blank.
Bestellbeispiel:
K0695.0406
Hinweis:
Die Kugel-Ausgleichselemente finden dort Verwendung, wo es um die Aufstellung und das Ausrichten von Motoren, Aggregaten, Antriebselementen und Fertigungsstraßen geht. Durch die Kugelausgleichsscheiben kann eine exakte Anlage bei der Montage von schrägen Auflageflächen bis zu einem Neigungswinkel von ca. 4° erfolgen.
Eigenschaften
| A: | 4° |
|---|---|
| B: | 5 |
| D: | 6,6 |
| D1: | M15x1 |
| D2: | 25 |
| F kN: | 40 |
| H max.: | 26 |
| H min.: | 22 |
| M: | 2 |
| Material: | Stahl |
| N: | 4 |
| für Schraube: | M6 |
Dokumente
1

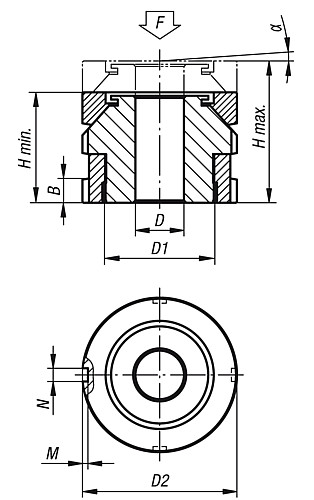

| Variante | Material | D2 | B | D | A | D1 | N | M | F kN | für Schraube | H min. | H max. | Preis |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10071398 (K0695.0406) |
Stahl | 25 | 5 | 6,6 | 4° | M15x1 | 4 | 2 | 40 | M6 | 22 | 26 | ab 40,94 € |
|
10071399 (K0695.0506) |
Stahl | 32 | 6 | 6,6 | 4° | M20x1 | 4 | 2 | 65 | M6 | 26 | 31 | ab 43,42 € |
|
10071400 (K0695.0508) |
Stahl | 32 | 6 | 9 | 4° | M20x1 | 4 | 2 | 65 | M8 | 26 | 31 | ab 43,42 € |
|
10071401 (K0695.0510) |
Stahl | 32 | 6 | 11 | 4° | M20x1 | 4 | 2 | 65 | M10 | 26 | 31 | ab 43,42 € |
|
10071402 (K0695.0710) |
Stahl | 45 | 7 | 11 | 4° | M30x1,5 | 5 | 2 | 120 | M10 | 34 | 41 | ab 48,01 € |
|
10071403 (K0695.0712) |
Stahl | 45 | 7 | 13,5 | 4° | M30x1,5 | 5 | 2 | 120 | M12 | 34 | 41 | ab 48,01 € |
|
10071404 (K0695.0716) |
Stahl | 45 | 7 | 17,5 | 4° | M30x1,5 | 5 | 2 | 120 | M16 | 34 | 41 | ab 48,01 € |
|
10071413 (K0695.04061) |
Edelstahl | 25 | 5 | 6,6 | 4° | M15x1 | 4 | 2 | 27,1 | M6 | 22 | 26 | ab 53,59 € |
|
10071414 (K0695.05061) |
Edelstahl | 32 | 6 | 6,6 | 4° | M20x1 | 4 | 2 | 43,4 | M6 | 26 | 31 | ab 59,31 € |
|
10071415 (K0695.05081) |
Edelstahl | 32 | 6 | 9 | 4° | M20x1 | 4 | 2 | 43,4 | M8 | 26 | 31 | ab 59,31 € |
|
10071416 (K0695.05101) |
Edelstahl | 32 | 6 | 11 | 4° | M20x1 | 4 | 2 | 43,4 | M10 | 26 | 31 | ab 59,31 € |
|
10071405 (K0695.0916) |
Stahl | 58 | 9 | 17,5 | 4° | M40x1,5 | 6 | 2,5 | 210 | M16 | 44 | 53 | ab 63,84 € |
|
10071406 (K0695.0920) |
Stahl | 58 | 9 | 22 | 4° | M40x1,5 | 6 | 2,5 | 210 | M20 | 44 | 53 | ab 63,84 € |
|
10071407 (K0695.0924) |
Stahl | 58 | 9 | 26 | 4° | M40x1,5 | 6 | 2,5 | 210 | M24 | 44 | 53 | ab 63,84 € |
|
10071417 (K0695.07101) |
Edelstahl | 45 | 7 | 11 | 4° | M30x1,5 | 5 | 2 | 84 | M10 | 34 | 41 | ab 74,41 € |
|
10071418 (K0695.07121) |
Edelstahl | 45 | 7 | 13,5 | 4° | M30x1,5 | 5 | 2 | 84 | M12 | 34 | 41 | ab 74,41 € |
|
10071419 (K0695.07161) |
Edelstahl | 45 | 7 | 17,5 | 4° | M30x1,5 | 5 | 2 | 84 | M16 | 34 | 41 | ab 74,41 € |
|
10071420 (K0695.09161) |
Edelstahl | 58 | 9 | 17,5 | 4° | M40x1,5 | 6 | 2,5 | 148 | M16 | 44 | 53 | ab 97,52 € |
|
10071421 (K0695.09201) |
Edelstahl | 58 | 9 | 22 | 4° | M40x1,5 | 6 | 2,5 | 148 | M20 | 44 | 53 | ab 97,52 € |
|
10071422 (K0695.09241) |
Edelstahl | 58 | 9 | 26 | 4° | M40x1,5 | 6 | 2,5 | 148 | M24 | 44 | 53 | ab 97,52 € |
|
10071408 (K0695.1020) |
Stahl | 70 | 11 | 22 | 4° | M50x1,5 | 6 | 2,5 | 330 | M20 | 50 | 60 | ab 98,27 € |
|
10071409 (K0695.1024) |
Stahl | 70 | 11 | 26 | 4° | M50x1,5 | 6 | 2,5 | 330 | M24 | 50 | 60 | ab 98,27 € |
|
10071410 (K0695.1030) |
Stahl | 70 | 11 | 33 | 4° | M50x1,5 | 6 | 2,5 | 330 | M30 | 50 | 60 | ab 98,27 € |
|
10071411 (K0695.1224) |
Stahl | 80 | 11 | 26 | 4° | M60x2 | 7 | 3 | 495 | M24 | 56 | 68 | ab 121,07 € |
|
10071412 (K0695.1230) |
Stahl | 80 | 11 | 33 | 4° | M60x2 | 7 | 3 | 495 | M30 | 56 | 68 | ab 121,07 € |
|
10071423 (K0695.10201) |
Edelstahl | 70 | 11 | 22 | 4° | M50x1,5 | 6 | 2,5 | 225 | M20 | 50 | 60 | ab 144,15 € |
|
10071424 (K0695.10241) |
Edelstahl | 70 | 11 | 26 | 4° | M50x1,5 | 6 | 2,5 | 225 | M24 | 50 | 60 | ab 144,15 € |
|
10071425 (K0695.10301) |
Edelstahl | 70 | 11 | 33 | 4° | M50x1,5 | 6 | 2,5 | 225 | M30 | 50 | 60 | ab 144,15 € |
|
10071426 (K0695.12241) |
Edelstahl | 80 | 11 | 26 | 4° | M60x2 | 7 | 3 | 323 | M24 | 56 | 68 | ab 172,07 € |
|
10071427 (K0695.12301) |
Edelstahl | 80 | 11 | 33 | 4° | M60x2 | 7 | 3 | 323 | M30 | 56 | 68 | ab 172,07 € |
