Produktnummer:
10056528
Herstellernummer:
70229-I50037.TG1601
Hersteller:
LE70229-Leschhorn

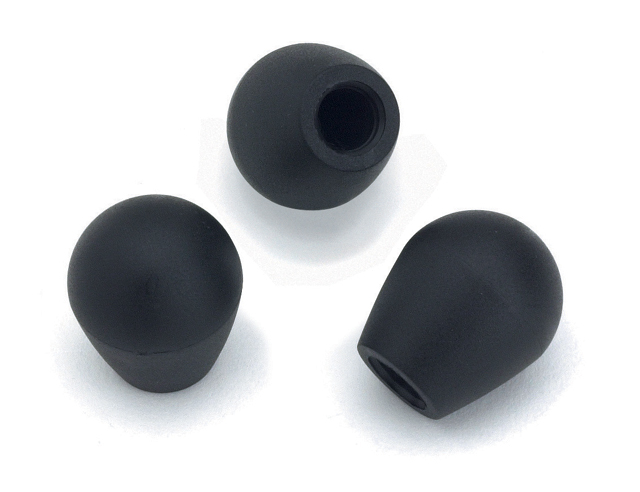

Leschhorn I500 Pilzgriffe D 37; d 24; Bohrung d1 D16; Kunststoff PA, schwarz,
H:
43
Q:
30
d (mm):
24
d1:
D16
| Anzahl | Preis* |
|---|---|
| Bis 340 |
1,23 €
|
| Bis 477 |
1,11 €
|
| Bis 613 |
0,98 €
|
| Ab 614 |
0,86 €
|
Produktnummer:
10056528
LE I500 Pilzgriffe
Beschreibung
LE I500 Pilzgriffe Kunststoff (glasfaserverstärktes PA), Blinde, gepresste in den Kunststoff Öffnung

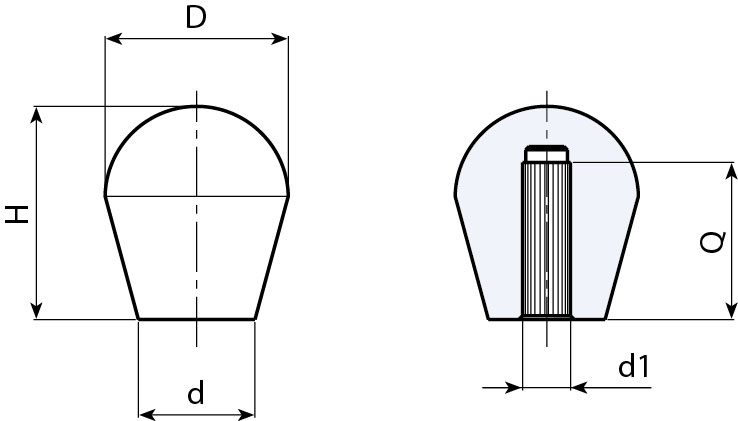

Eigenschaften
| D: | 37 |
|---|---|
| Farbe: | schwarz |
| Gewicht [kg]: | 0,033 |
| H: | 43 |
| Q: | 30 |
| d (mm): | 24 |
| d1: | D16 |
Dokumente
1
| Variante | H | Q | d (mm) | d1 | Preis |
|---|---|---|---|---|---|
|
10056525 (70229-I50030.TG1001) |
32 | 23 | 18 | D10 | ab 1,07 € |
|
10056526 (70229-I50030.TG1201) |
32 | 22 | 18 | D12 | ab 1,07 € |
|
10056527 (70229-I50030.TG1401) |
32 | 20 | 18 | D14 | ab 1,07 € |
|
10056528 (70229-I50037.TG1601) |
43 | 30 | 24 | D16 | ab 1,23 € |
|
10056529 (70229-I50037.TG1801) |
43 | 30 | 24 | D18 | ab 1,23 € |
