Produktnummer:
10134373
Herstellernummer:
27810-060302
Hersteller:
Norelem

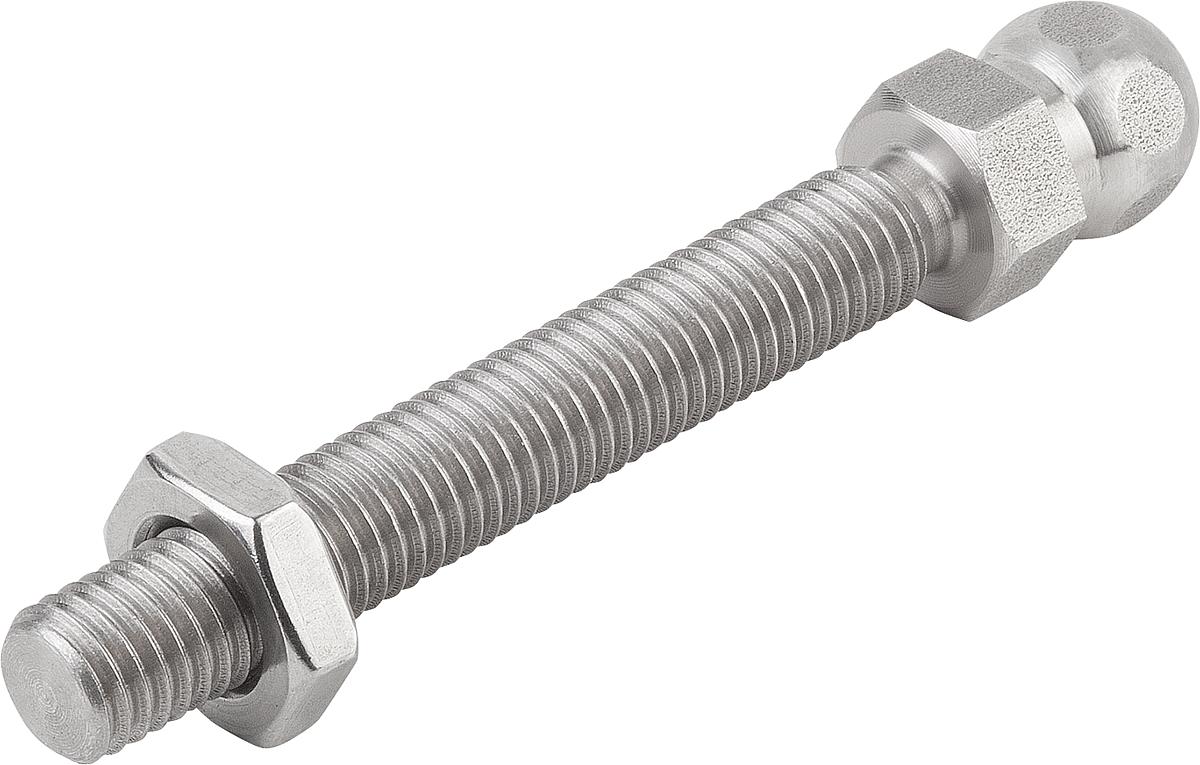

Norelem 27810-060302 GEWINDESPINDEL M6X30, F. GELENKFUSS, EDELSTAHL
D:
M6
L:
30
Material:
Edelstahl
NLM 27810 Gewindespindeln für Gelenkfüße aus Stahl oder Edelstahl
Beschreibung
Werkstoff:
Stahl oder Edelstahl 1.4301.
Ausführung:
Stahl blau chromatiert. Edelstahl blank.
Bestellbeispiel:
nlm 27810-060151
27810-060151 und 27800-1030 montiert
Bestellhinweis:
Soll die Gewindespindel und der Gelenkfußteller montiert geliefert werden, bitte die Bestellnummer der Spindel und des Tellers mit dem Zusatz "montiert" angeben.
(z.B. 27810-060151 und 27800-1030 montiert.)
Hinweis:
Gelenkfüße werden aus einer Gewindespindel und einem Teller zusammengestellt. Jede Gewindespindel kann mit jedem Teller kombiniert werden.

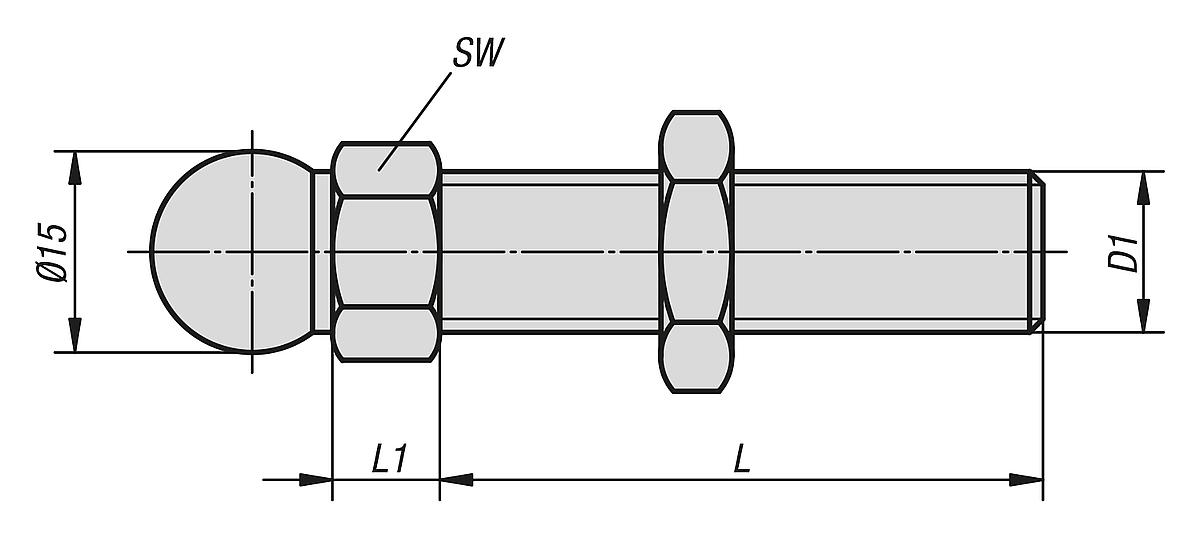

Die Höhe des gesamten Gelenkfußes berechnet sich aus der Länge der Gewindespindel + Höhe des Sechskants + 22,5 mm.
(Gesamthöhe Gelenkfuß = L + L1 + 22,5 mm)
Stahl oder Edelstahl 1.4301.
Ausführung:
Stahl blau chromatiert. Edelstahl blank.
Bestellbeispiel:
nlm 27810-060151
27810-060151 und 27800-1030 montiert
Bestellhinweis:
Soll die Gewindespindel und der Gelenkfußteller montiert geliefert werden, bitte die Bestellnummer der Spindel und des Tellers mit dem Zusatz "montiert" angeben.
(z.B. 27810-060151 und 27800-1030 montiert.)
Hinweis:
Gelenkfüße werden aus einer Gewindespindel und einem Teller zusammengestellt. Jede Gewindespindel kann mit jedem Teller kombiniert werden.
Die Höhe des gesamten Gelenkfußes berechnet sich aus der Länge der Gewindespindel + Höhe des Sechskants + 22,5 mm.
(Gesamthöhe Gelenkfuß = L + L1 + 22,5 mm)
Eigenschaften
| Belastbarkeit max. kN: | 2 |
|---|---|
| D: | M6 |
| Gewicht ca. kg: | 0,011 |
| L: | 30 |
| L1: | 7,5 |
| Material: | Edelstahl |
| SW: | 14 |
Dokumente
1
| Variante | Material | L | D | Preis |
|---|---|---|---|---|
|
10134339 (27810-060151) |
Stahl | 15 | M6 | ab 1,81 € |
|
10134340 (27810-060301) |
Stahl | 30 | M6 | ab 1,81 € |
|
10134341 (27810-080401) |
Stahl | 40 | M8 | ab 2,08 € |
|
10134348 (27810-120451) |
Stahl | 45 | M12 | ab 2,08 € |
|
10134343 (27810-100451) |
Stahl | 45 | M10 | ab 2,17 € |
|
10134372 (27810-060152) |
Edelstahl | 15 | M6 | ab 2,23 € |
|
10134373 (27810-060302) |
Edelstahl | 30 | M6 | ab 2,23 € |
|
10134344 (27810-100701) |
Stahl | 70 | M10 | ab 2,24 € |
|
10134342 (27810-080801) |
Stahl | 80 | M8 | ab 2,34 € |
|
10134349 (27810-120661) |
Stahl | 66 | M12 | ab 2,34 € |
|
10134345 (27810-100901) |
Stahl | 90 | M10 | ab 2,51 € |
|
10134350 (27810-121001) |
Stahl | 100 | M12 | ab 2,51 € |
|
10134351 (27810-121251) |
Stahl | 125 | M12 | ab 2,95 € |
|
10134346 (27810-101251) |
Stahl | 125 | M10 | ab 3,06 € |
|
10134352 (27810-121501) |
Stahl | 150 | M12 | ab 3,13 € |
|
10134353 (27810-140661) |
Stahl | 66 | M14 | ab 3,23 € |
|
10134357 (27810-160661) |
Stahl | 66 | M16 | ab 3,34 € |
|
10134374 (27810-080402) |
Edelstahl | 40 | M8 | ab 3,51 € |
|
10134358 (27810-161001) |
Stahl | 100 | M16 | ab 3,57 € |
|
10134376 (27810-100452) |
Edelstahl | 45 | M10 | ab 3,62 € |
|
10134381 (27810-120452) |
Edelstahl | 45 | M12 | ab 3,62 € |
|
10134354 (27810-141001) |
Stahl | 100 | M14 | ab 3,78 € |
|
10134347 (27810-101501) |
Stahl | 150 | M10 | ab 4,31 € |
|
10134359 (27810-161251) |
Stahl | 125 | M16 | ab 4,31 € |
|
10134377 (27810-100702) |
Edelstahl | 70 | M10 | ab 4,39 € |
|
10134382 (27810-120662) |
Edelstahl | 66 | M12 | ab 4,39 € |
|
10134360 (27810-161501) |
Stahl | 150 | M16 | ab 4,59 € |
|
10134355 (27810-141251) |
Stahl | 125 | M14 | ab 4,68 € |
|
10134383 (27810-121002) |
Edelstahl | 100 | M12 | ab 4,94 € |
|
10134375 (27810-080802) |
Edelstahl | 80 | M8 | ab 5,04 € |
|
10134378 (27810-100902) |
Edelstahl | 90 | M10 | ab 5,11 € |
|
10134362 (27810-200851) |
Stahl | 85 | M20 | ab 5,39 € |
|
10134363 (27810-201001) |
Stahl | 100 | M20 | ab 5,75 € |
|
10134356 (27810-141501) |
Stahl | 150 | M14 | ab 5,92 € |
|
10134364 (27810-201251) |
Stahl | 125 | M20 | ab 6,30 € |
|
10134367 (27810-240851) |
Stahl | 85 | M24 | ab 6,48 € |
|
10134384 (27810-121252) |
Edelstahl | 125 | M12 | ab 6,58 € |
|
10134390 (27810-160662) |
Edelstahl | 66 | M16 | ab 6,65 € |
|
10134361 (27810-162001) |
Stahl | 200 | M16 | ab 6,83 € |
|
10134365 (27810-201501) |
Stahl | 150 | M20 | ab 6,83 € |
|
10134379 (27810-101252) |
Edelstahl | 125 | M10 | ab 6,83 € |
|
10134386 (27810-140662) |
Edelstahl | 66 | M14 | ab 6,83 € |
|
10134368 (27810-241001) |
Stahl | 100 | M24 | ab 7,03 € |
|
10134391 (27810-161002) |
Edelstahl | 100 | M16 | ab 7,12 € |
|
10134380 (27810-101502) |
Edelstahl | 150 | M10 | ab 7,25 € |
|
10134387 (27810-141002) |
Edelstahl | 100 | M14 | ab 7,55 € |
|
10134369 (27810-241251) |
Stahl | 125 | M24 | ab 7,78 € |
|
10134388 (27810-141252) |
Edelstahl | 125 | M14 | ab 8,03 € |
|
10134366 (27810-202001) |
Stahl | 200 | M20 | ab 8,26 € |
|
10134385 (27810-121502) |
Edelstahl | 150 | M12 | ab 8,26 € |
|
10134370 (27810-241501) |
Stahl | 150 | M24 | ab 8,65 € |
|
10134389 (27810-141502) |
Edelstahl | 150 | M14 | ab 8,98 € |
|
10134392 (27810-161252) |
Edelstahl | 125 | M16 | ab 9,17 € |
|
10134371 (27810-242001) |
Stahl | 200 | M24 | ab 9,62 € |
|
10134393 (27810-161502) |
Edelstahl | 150 | M16 | ab 10,43 € |
|
10134396 (27810-201002) |
Edelstahl | 100 | M20 | ab 11,70 € |
|
10134395 (27810-200852) |
Edelstahl | 85 | M20 | ab 12,04 € |
|
10134397 (27810-201252) |
Edelstahl | 125 | M20 | ab 12,23 € |
|
10134398 (27810-201502) |
Edelstahl | 150 | M20 | ab 12,96 € |
|
10134399 (27810-202002) |
Edelstahl | 200 | M20 | ab 13,67 € |
|
10134401 (27810-241002) |
Edelstahl | 100 | M24 | ab 14,72 € |
|
10134400 (27810-240852) |
Edelstahl | 85 | M24 | ab 14,76 € |
|
10134394 (27810-162002) |
Edelstahl | 200 | M16 | ab 15,80 € |
|
10134402 (27810-241252) |
Edelstahl | 125 | M24 | ab 15,99 € |
|
10134403 (27810-241502) |
Edelstahl | 150 | M24 | ab 15,99 € |
|
10134404 (27810-242002) |
Edelstahl | 200 | M24 | ab 16,77 € |
