Produktnummer:
10022037
Herstellernummer:
DB1432-0060-2
Hersteller:
Accuride

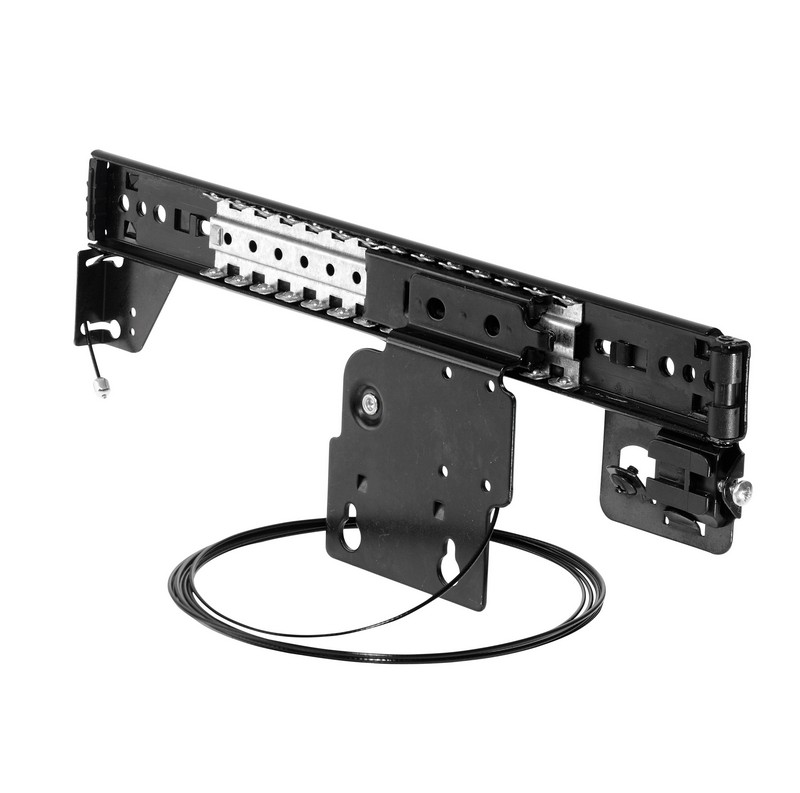

Accuride DB1432-0060-2 Linearführungen, 17,6x22,3, SL 608, TR 496, D 96,8, 34kg, schwarz verzinkt
SL mm:
608
| Anzahl | Preis* |
|---|---|
| Bis 3 |
402,12 €
|
| Bis 7 |
354,00 €
|
| Bis 11 |
341,11 €
|
| Bis 23 |
291,57 €
|
| Ab 24 |
233,45 €
|
Produktnummer:
10022037
Accuride DB1432 Linearführungen, bis 34kg, 17,6x22,3
Beschreibung
Schiene für einschiebbare Türen, Maximales Türgewicht 34kg, Kabelsystem für synchronen Schienenlauf, Maximale Türhöhe 2300mm, Holzstärke 19 - 32mm
Eigenschaften
| A mm: | 604.7 |
|---|---|
| B (mm): | 253.7 |
| C [mm]: | 561.3 |
| DB Material: | schwarz verzinkt |
| D mm: | 96.8 |
| Profil H x B: | 17,6 x 22,3 |
| SL mm: | 608 |
| TR mm: | 496 |
| W kg: | 1,33 |
Dokumente
2
| Variante | SL mm | Preis |
|---|---|---|
|
10022031 (DB1432-0030-2) |
303 | ab 71,86 € |
|
10022032 (DB1432-0035-2) |
354 | ab 72,61 € |
|
10022033 (DB1432-0040-2) |
405 | ab 73,33 € |
|
10022034 (DB1432-0045-2) |
456 | ab 73,72 € |
|
10022035 (DB1432-0050-2) |
506 | ab 74,84 € |
|
10022036 (DB1432-0055-2) |
557 | ab 75,50 € |
|
10022037 (DB1432-0060-2) |
608 | ab 76,25 € |
|
10022038 (DB1432-0065-2) |
659 | ab 77,47 € |
|
10022039 (DB1432-0070-2) |
710 | ab 78,67 € |
