Produktnummer:
10196426
Herstellernummer:
343.1-25-M6-KR
Hersteller:
Ganter
Ganter 343.1-25-M6-KR GELENKFUSS, INNENGEW.,KU KAPPE RUTSCHFEST
Form:
KR
Fußdurchmesser (d1):
25
Gewinde (d2):
M 6
Werkstoff:
ST
| Anzahl | Preis* |
|---|---|
| Bis 81 |
5,17 €
|
| Bis 113 |
4,65 €
|
| Bis 145 |
4,14 €
|
| Ab 146 |
3,62 €
|
Produktnummer:
10196426

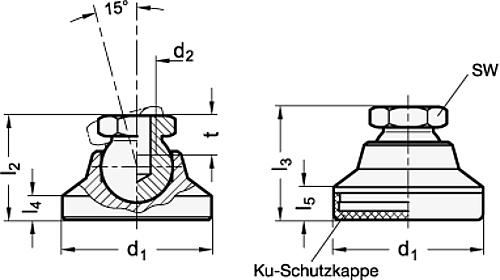

GN 343.1 Gelenkfüße, Innengewinde
Beschreibung
Die statische Belastbarkiet der Gelenkfüße GN 343.1 ist begrenzt durch eine zulässige Belastbarkeit der Gelenkkugel / Schraube (Festigkeitsklasse 5.8). Dabei gehen die in der Tabelle angegebenen Werte (nur für Form OS/KS) von einer reinen Druckbelastung senkrecht zum Gelenkfuß aus. Die in der Praxis häufig auftretenden zusätzlichen Biege- und Knickbeanspruchungen führen zu einer Minderung der Belastbarkeit der Schraube und müssen entsprechend berücksichtigt werden.
Gelenkfüße GN 343.1 sind nicht demontierbar.
Gelenkfüße GN 343.1 sind nicht demontierbar.
Eigenschaften
| Form: | KR |
|---|---|
| Fußdurchmesser (d1): | 25 |
| Gewinde (d2): | M 6 |
| Werkstoff: | ST |
Dokumente
2
| Variante | Gewinde (d2) | Werkstoff | Form | Fußdurchmesser (d1) | Preis |
|---|---|---|---|---|---|
|
10196419 (343.1-25-M8-OS) |
M 8 | ST | OS | 25 | ab 2,63 € |
|
10196424 (343.1-25-M6-OS) |
M 6 | ST | OS | 25 | ab 2,63 € |
|
10196401 (343.1-32-M10-OS) |
M 10 | ST | OS | 32 | ab 3,12 € |
|
10196398 (343.1-32-M8-OS) |
M 8 | ST | OS | 32 | ab 3,21 € |
|
10196397 (343.1-25-M8-KR) |
M 8 | ST | KR | 25 | ab 3,41 € |
|
10196426 (343.1-25-M6-KR) |
M 6 | ST | KR | 25 | ab 3,41 € |
|
10196396 (343.1-25-M8-KS) |
M 8 | ST | KS | 25 | ab 3,47 € |
|
10196425 (343.1-25-M6-KS) |
M 6 | ST | KS | 25 | ab 3,47 € |
|
10196404 (343.1-40-M10-OS) |
M 10 | ST | OS | 40 | ab 3,85 € |
|
10196400 (343.1-32-M8-KR) |
M 8 | ST | KR | 32 | ab 3,87 € |
|
10196407 (343.1-40-M12-OS) |
M 12 | ST | OS | 40 | ab 3,95 € |
|
10196399 (343.1-32-M8-KS) |
M 8 | ST | KS | 32 | ab 3,99 € |
|
10196403 (343.1-32-M10-KR) |
M 10 | ST | KR | 32 | ab 3,99 € |
|
10196421 (343.1-25-M6-KRE) |
M 6 | ST | KRE | 25 | ab 4,05 € |
|
10196428 (343.1-25-M8-KRE) |
M 8 | ST | KRE | 25 | ab 4,05 € |
|
10196402 (343.1-32-M10-KS) |
M 10 | ST | KS | 32 | ab 4,07 € |
|
10196427 (343.1-25-M8-KSE) |
M 8 | ST | KSE | 25 | ab 4,36 € |
|
10196445 (343.1-25-M6-KSE) |
M 6 | ST | KSE | 25 | ab 4,36 € |
|
10196430 (343.1-32-M8-KRE) |
M 8 | ST | KRE | 32 | ab 4,59 € |
|
10196432 (343.1-32-M10-KRE) |
M 10 | ST | KRE | 32 | ab 4,63 € |
|
10196406 (343.1-40-M10-KR) |
M 10 | ST | KR | 40 | ab 4,78 € |
|
10196429 (343.1-32-M8-KSE) |
M 8 | ST | KSE | 32 | ab 4,82 € |
|
10196405 (343.1-40-M10-KS) |
M 10 | ST | KS | 40 | ab 4,83 € |
|
10196431 (343.1-32-M10-KSE) |
M 10 | ST | KSE | 32 | ab 5,04 € |
|
10196408 (343.1-40-M12-KS) |
M 12 | ST | KS | 40 | ab 5,26 € |
|
10196409 (343.1-40-M12-KR) |
M 12 | ST | KR | 40 | ab 5,26 € |
|
10196434 (343.1-40-M10-KRE) |
M 10 | ST | KRE | 40 | ab 5,41 € |
|
10196413 (343.1-50-M12-OS) |
M 12 | ST | OS | 50 | ab 5,45 € |
|
10196410 (343.1-50-M10-OS) |
M 10 | ST | OS | 50 | ab 5,46 € |
|
10196415 (343.1-50-M12-KR) |
M 12 | ST | KR | 50 | ab 5,59 € |
|
10196433 (343.1-40-M10-KSE) |
M 10 | ST | KSE | 40 | ab 5,72 € |
|
10196436 (343.1-40-M12-KRE) |
M 12 | ST | KRE | 40 | ab 6,08 € |
|
10196412 (343.1-50-M10-KR) |
M 10 | ST | KR | 50 | ab 6,11 € |
|
10196435 (343.1-40-M12-KSE) |
M 12 | ST | KSE | 40 | ab 6,13 € |
|
10196411 (343.1-50-M10-KS) |
M 10 | ST | KS | 50 | ab 6,24 € |
|
10196414 (343.1-50-M12-KS) |
M 12 | ST | KS | 50 | ab 6,24 € |
|
10196440 (343.1-50-M12-KRE) |
M 12 | ST | KRE | 50 | ab 6,34 € |
|
10196438 (343.1-50-M10-KRE) |
M 10 | ST | KRE | 50 | ab 7,05 € |
|
10196437 (343.1-50-M10-KSE) |
M 10 | ST | KSE | 50 | ab 7,52 € |
|
10196439 (343.1-50-M12-KSE) |
M 12 | ST | KSE | 50 | ab 7,54 € |
|
10196416 (343.1-60-M12-OS) |
M 12 | ST | OS | 60 | ab 8,98 € |
|
10196420 (343.1-60-M16-OS) |
M 16 | ST | OS | 60 | ab 9,11 € |
|
10196417 (343.1-60-M12-KS) |
M 12 | ST | KS | 60 | ab 9,51 € |
|
10196418 (343.1-60-M12-KR) |
M 12 | ST | KR | 60 | ab 9,64 € |
|
10196422 (343.1-60-M16-KS) |
M 16 | ST | KS | 60 | ab 9,97 € |
|
10196423 (343.1-60-M16-KR) |
M 16 | ST | KR | 60 | ab 10,27 € |
|
10196442 (343.1-60-M12-KRE) |
M 12 | ST | KRE | 60 | ab 10,42 € |
|
10196444 (343.1-60-M16-KRE) |
M 16 | ST | KRE | 60 | ab 10,83 € |
|
10196441 (343.1-60-M12-KSE) |
M 12 | ST | KSE | 60 | ab 10,91 € |
|
10196443 (343.1-60-M16-KSE) |
M 16 | ST | KSE | 60 | ab 11,37 € |
