Produktnummer:
10173920
Herstellernummer:
528-ESD-117-8,5-SW
Hersteller:
Ganter

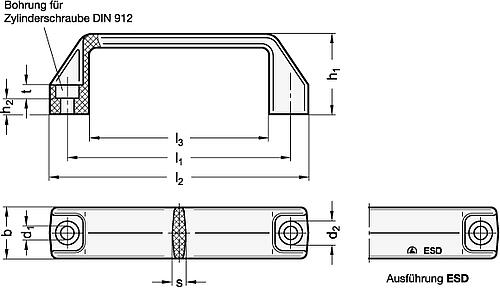

Ganter 528-ESD-117-8,5-SW ELESA BÜGELGRIFF
Bohrung (d1_1):
8,5
Farbe:
SW - schwarz, RAL 9005, matt
Länge (l1):
117
Werkstoff:
ESD - Kunststoff
| Anzahl | Preis* |
|---|---|
| Bis 52 |
7,96 €
|
| Bis 73 |
7,16 €
|
| Bis 94 |
6,37 €
|
| Ab 95 |
5,87 €
|
Produktnummer:
10173920
GN 528 Bügelgriffe, Kunststoff
Beschreibung
Bügelgriffe LE70001 GN 528 werden in verschiedenen Kunststoffvarianten angeboten.
Bügelgriffe in der Ausführung PP (Polypropylen) haben zwar etwas ungünstigere mechanische und thermische Eigenschaften als PA (Polyamid), sind jedoch preiswerter und genügen in vielen Fällen den Anforderungen.
Bügelgriffe in der Ausführung ESD sind aus einem leitfähigen Kunststoff, der eine elektrostatische Aufladung verhindert. Der Aufdruck ESD auf der Griffoberfläche definiert die besonderen antistatischen Eigenschaften gemäß ICE 61340-5-1.
Original ELESA-Design, realisiert in Metallausführung mit Genehmigung von ELESA s.p.a.
Bügelgriffe in der Ausführung PP (Polypropylen) haben zwar etwas ungünstigere mechanische und thermische Eigenschaften als PA (Polyamid), sind jedoch preiswerter und genügen in vielen Fällen den Anforderungen.
Bügelgriffe in der Ausführung ESD sind aus einem leitfähigen Kunststoff, der eine elektrostatische Aufladung verhindert. Der Aufdruck ESD auf der Griffoberfläche definiert die besonderen antistatischen Eigenschaften gemäß ICE 61340-5-1.
Original ELESA-Design, realisiert in Metallausführung mit Genehmigung von ELESA s.p.a.
Eigenschaften
| Bohrung (d1_1): | 8,5 |
|---|---|
| Farbe: | SW - schwarz, RAL 9005, matt |
| Länge (l1): | 117 |
| Werkstoff: | ESD - Kunststoff |
Dokumente
1
| Variante | Länge (l1) | Farbe | Bohrung (d1_1) | Werkstoff | Preis |
|---|---|---|---|---|---|
|
10173916 (528-PP-117-6,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 6,5 | PP - Kunststoff | ab 1,37 € |
|
10173918 (528-PP-117-8,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 1,37 € |
|
10173924 (528-PP-94-6,5-SW) |
94 | SW - schwarz, RAL 9005, matt | 6,5 | PP - Kunststoff | ab 1,47 € |
|
10173913 (528-PA-94-6,5-SW) |
94 | SW - schwarz, RAL 9005, matt | 6,5 | PA - Kunststoff | ab 1,56 € |
|
10173914 (528-PA-94-6,5-OR) |
94 | OR - orange, RAL 2004, matt | 6,5 | PA - Kunststoff | ab 1,65 € |
|
10173915 (528-PA-94-6,5-GR) |
94 | GR - grau, RAL 7031, matt | 6,5 | PA - Kunststoff | ab 1,65 € |
|
10260695 (528-PA-94-6,5-RT) |
94 | RT - rot, RAL 3000, matt | 6,5 | PA - Kunststoff | ab 1,65 € |
|
10173940 (528-PP-122-8,5-SW) |
122 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 1,76 € |
|
10173917 (528-PA-117-6,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 6,5 | PA - Kunststoff | ab 1,80 € |
|
10173921 (528-PA-117-8,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 1,80 € |
|
10173922 (528-PA-117-8,5-OR) |
117 | OR - orange, RAL 2004, matt | 8,5 | PA - Kunststoff | ab 1,90 € |
|
10173923 (528-PA-117-8,5-GR) |
117 | GR - grau, RAL 7031, matt | 8,5 | PA - Kunststoff | ab 1,90 € |
|
10260697 (528-PA-117-8,5-RT) |
117 | RT - rot, RAL 3000, matt | 8,5 | PA - Kunststoff | ab 1,90 € |
|
10173926 (528-PA-122-8,5-SW) |
122 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 2,23 € |
|
10173925 (528-PP-132-8,5-SW) |
132 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 2,32 € |
|
10173941 (528-SV-94-6,5-SW) |
94 | SW - schwarz, RAL 9005, matt | 6,5 | SV - Kunststoff | ab 2,32 € |
|
10260699 (528-PP-140-8,5-SW) |
140 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 2,46 € |
|
10173928 (528-PA-132-8,5-SW) |
132 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 2,60 € |
|
10260702 (528-PP-160-8,5-SW) |
160 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 2,64 € |
|
10173929 (528-PA-132-8,5-OR) |
132 | OR - orange, RAL 2004, matt | 8,5 | PA - Kunststoff | ab 2,67 € |
|
10173930 (528-PA-132-8,5-GR) |
132 | GR - grau, RAL 7031, matt | 8,5 | PA - Kunststoff | ab 2,67 € |
|
10260698 (528-PA-132-8,5-RT) |
132 | RT - rot, RAL 3000, matt | 8,5 | PA - Kunststoff | ab 2,67 € |
|
10219126 (528-PA-140-8,5-SW) |
140 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 2,69 € |
|
10173931 (528-PP-179-8,5-SW) |
179 | SW - schwarz, RAL 9005, matt | 8,5 | PP - Kunststoff | ab 2,77 € |
|
10260700 (528-PA-140-8,5-OR) |
140 | OR - orange, RAL 2004, matt | 8,5 | PA - Kunststoff | ab 2,82 € |
|
10260701 (528-PA-140-8,5-GR) |
140 | GR - grau, RAL 7031, matt | 8,5 | PA - Kunststoff | ab 2,82 € |
|
10214527 (528-PA-160-8,5-SW) |
160 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 2,91 € |
|
10260696 (528-SV-117-6,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 6,5 | SV - Kunststoff | ab 2,99 € |
|
10173919 (528-SV-117-8,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 8,5 | SV - Kunststoff | ab 3,01 € |
|
10260703 (528-PA-160-8,5-OR) |
160 | OR - orange, RAL 2004, matt | 8,5 | PA - Kunststoff | ab 3,05 € |
|
10260704 (528-PA-160-8,5-GR) |
160 | GR - grau, RAL 7031, matt | 8,5 | PA - Kunststoff | ab 3,05 € |
|
10173933 (528-PA-179-8,5-SW) |
179 | SW - schwarz, RAL 9005, matt | 8,5 | PA - Kunststoff | ab 3,09 € |
|
10173934 (528-PA-179-8,5-OR) |
179 | OR - orange, RAL 2004, matt | 8,5 | PA - Kunststoff | ab 3,25 € |
|
10173935 (528-PA-179-8,5-GR) |
179 | GR - grau, RAL 7031, matt | 8,5 | PA - Kunststoff | ab 3,25 € |
|
10260694 (528-PA-179-8,5-RT) |
179 | RT - rot, RAL 3000, matt | 8,5 | PA - Kunststoff | ab 3,25 € |
|
10173927 (528-SV-132-8,5-SW) |
132 | SW - schwarz, RAL 9005, matt | 8,5 | SV - Kunststoff | ab 4,10 € |
|
10173942 (528-ESD-94-6,5-SW) |
94 | SW - schwarz, RAL 9005, matt | 6,5 | ESD - Kunststoff | ab 4,70 € |
|
10173932 (528-SV-179-8,5-SW) |
179 | SW - schwarz, RAL 9005, matt | 8,5 | SV - Kunststoff | ab 5,48 € |
|
10173920 (528-ESD-117-8,5-SW) |
117 | SW - schwarz, RAL 9005, matt | 8,5 | ESD - Kunststoff | ab 5,57 € |
|
10173936 (528-PP-235-10,5-SW) |
235 | SW - schwarz, RAL 9005, matt | 10,5 | PP - Kunststoff | ab 5,67 € |
|
10173937 (528-PA-235-10,5-SW) |
235 | SW - schwarz, RAL 9005, matt | 10,5 | PA - Kunststoff | ab 6,69 € |
|
10173938 (528-PA-235-10,5-OR) |
235 | OR - orange, RAL 2004, matt | 10,5 | PA - Kunststoff | ab 6,83 € |
|
10173939 (528-PA-235-10,5-GR) |
235 | GR - grau, RAL 7031, matt | 10,5 | PA - Kunststoff | ab 6,83 € |
