Produktnummer:
10210066
Herstellernummer:
24390.0521
Hersteller:
Halder

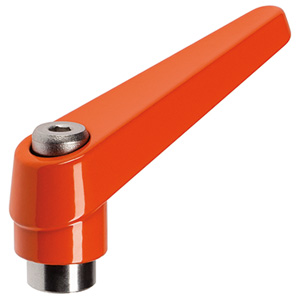

Halder 24390.0521 Verstellbare Klemmhebel, Innenteile aus rostfreiem Stahl mit Innengewinde Ø 25 x M 12, orange
Farbe:
orange
d1:
25
d2:
M12
| Anzahl | Preis* |
|---|---|
| Bis 27 |
15,20 €
|
| Bis 38 |
13,68 €
|
| Bis 49 |
12,16 €
|
| Ab 50 |
11,20 €
|
Produktnummer:
10210066
EH 24390 Verstellbare Klemmhebel Innenteile aus rostfreiem Stahl mit Innengewinde
Beschreibung
Werkstoff: Hebel: Zink-Druckguss, orange ähnlich RAL 2004, Zink-Druckguss, schwarz ähnlich RAL 9005 Innenteile: rostfreier Stahl 1.4305 Gewindeteil: rostfreier Stahl 1.4305 Hinweis: Verstellbare Klemmhebel mit rostfreien Innenteilen. Vielseitige Anwendungs- und Einsatzmöglichkeiten, z.B. in der Medizintechnik, chemischen Industrie u.a.. Durch Anheben des Hebels wird die Verzahnung freigegeben. Der Griff wird über die Verzahnung positioniert. Nach dem Loslassen rastet die Verzahnung ein. Das Gewindeteil kann ausgetauscht werden.
Eigenschaften

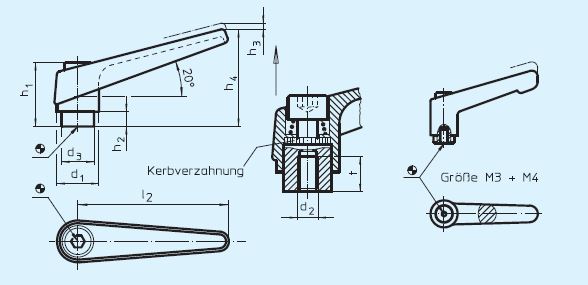

| Farbe: | orange |
|---|---|
| Gewicht (g): | 171 |
| d1: | 25 |
| d2: | M12 |
| d3: | 19 |
| h1: | 43 |
| h2: | 11 |
| h3: | 4 |
| h4: | 63 |
| l2 (mm): | 89 |
| t > =: | 17 |
Dokumente
1
| Variante | d1 | Farbe | d2 | Preis |
|---|---|---|---|---|
|
10210050 (24390.0032) |
13 | orange | M3 | ab 7,75 € |
|
10210051 (24390.0034) |
13 | schwarz | M3 | ab 7,75 € |
|
10210052 (24390.0036) |
13 | orange | M4 | ab 7,75 € |
|
10210053 (24390.0038) |
13 | schwarz | M4 | ab 7,75 € |
|
10210054 (24390.0111) |
14 | orange | M5 | ab 8,05 € |
|
10210055 (24390.0114) |
14 | schwarz | M5 | ab 8,05 € |
|
10210056 (24390.0121) |
14 | orange | M6 | ab 8,05 € |
|
10210057 (24390.0124) |
14 | schwarz | M6 | ab 8,05 € |
|
10210058 (24390.0321) |
18 | orange | M8 | ab 9,90 € |
|
10210059 (24390.0324) |
18 | schwarz | M8 | ab 9,90 € |
|
10210060 (24390.0411) |
22 | orange | M8 | ab 12,20 € |
|
10210061 (24390.0414) |
22 | schwarz | M8 | ab 12,20 € |
|
10210062 (24390.0421) |
22 | orange | M10 | ab 12,20 € |
|
10210063 (24390.0424) |
22 | schwarz | M10 | ab 12,20 € |
|
10210064 (24390.0511) |
25 | orange | M10 | ab 15,20 € |
|
10210065 (24390.0514) |
25 | schwarz | M10 | ab 15,20 € |
|
10210066 (24390.0521) |
25 | orange | M12 | ab 15,20 € |
|
10210067 (24390.0524) |
25 | schwarz | M12 | ab 15,20 € |
|
10210068 (24390.0611) |
30 | orange | M12 | ab 20,35 € |
|
10210069 (24390.0614) |
30 | schwarz | M12 | ab 20,35 € |
|
10210070 (24390.0621) |
30 | orange | M16 | ab 20,50 € |
|
10210071 (24390.0624) |
30 | schwarz | M16 | ab 20,50 € |
