Produktnummer:
10323083
Herstellernummer:
24450.0316
Hersteller:
Halder

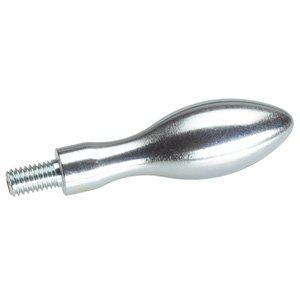

Halder 24450.0316 Fester Ballengriff DIN 39 Ø 16 mit Gewindezapfen, Form E
Form:
E
d1:
16
| Anzahl | Preis* |
|---|---|
| Bis 53 |
7,90 €
|
| Bis 74 |
7,11 €
|
| Bis 95 |
6,32 €
|
| Ab 96 |
5,82 €
|
Produktnummer:
10323083
EH 24450 Feste Ballengriffe DIN 39
Beschreibung
Werkstoff: Stahl, gedreht, galvanisch verzinkt, passiviert

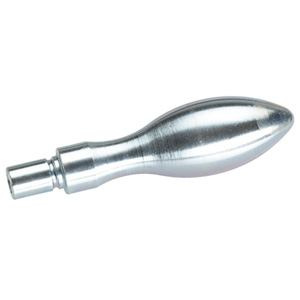

Form D: mit glattem Zapfen
Form E: mit Gewindezapfen
Form D: mit glattem Zapfen
Form E: mit Gewindezapfen

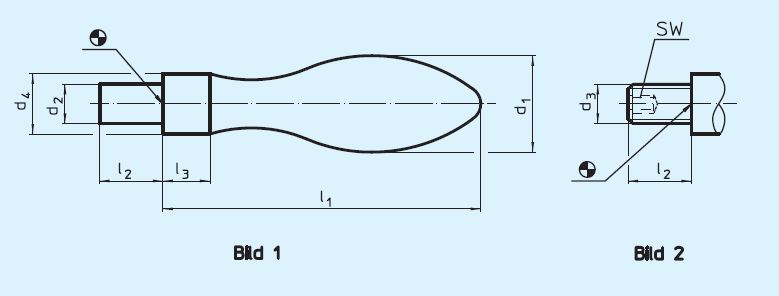

Eigenschaften
| Form: | E |
|---|---|
| Gewicht (g): | 45 |
| SW: | - |
| d1: | 16 |
| d2 h8: | - |
| d3: | M6 |
| d4 h13: | 10 |
| l1 ~: | 50 |
| l2 (mm): | 11 |
| l3: | 7 |
Dokumente
1
| Variante | d1 | Form | Preis |
|---|---|---|---|
|
10208751 (24450.0016) |
16 | D | ab 4,99 € |
|
10208756 (24450.0116) |
16 | E | ab 5,10 € |
|
10208752 (24450.0020) |
20 | D | ab 6,70 € |
|
10208757 (24450.0120) |
20 | E | ab 6,85 € |
|
10323083 (24450.0316) |
16 | E | ab 7,90 € |
|
10208758 (24450.0125) |
25 | E | ab 8,45 € |
|
10208753 (24450.0025) |
25 | D | ab 9,40 € |
|
10208759 (24450.0132) |
32 | E | ab 13,50 € |
|
10208754 (24450.0032) |
32 | D | ab 13,80 € |
|
10208755 (24450.0036) |
36 | D | ab 18,65 € |
|
10208760 (24450.0136) |
36 | E | ab 19,60 € |
