Produktnummer:
10208820
Herstellernummer:
24480.0308
Hersteller:
Halder

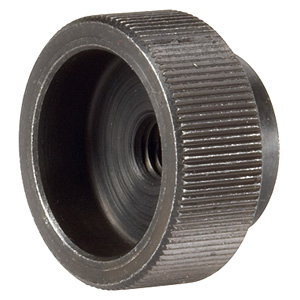

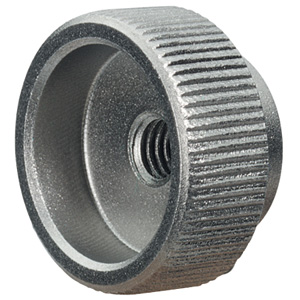

Halder 24480.0308 Rändelmutter, DIN 6303 M 8 mit Stiftloch, Form B, rostfreier Stahl
Ausführung:
mit Stiftloch
Form:
B
Material:
rostfreier Stahl
d1:
M8
| Anzahl | Preis* |
|---|---|
| Bis 68 |
6,15 €
|
| Bis 95 |
5,54 €
|
| Bis 122 |
4,92 €
|
| Ab 123 |
4,53 €
|
Produktnummer:
10208820
EH 24480 Rändelmuttern DIN 6303
Beschreibung
Werkstoff:, Automatenstahl, brüniert rostfreier Stahl 1.4305 Hinweis: Bei der Form B muss die Bohrung nach dem Durchbohren innerhalb des Toleranzfeldes H7 liegen.
Eigenschaften

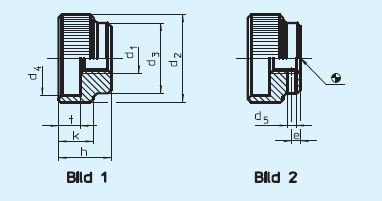

| Ausführung: | mit Stiftloch |
|---|---|
| Form: | B |
| Gewicht (g): | 45 |
| Material: | rostfreier Stahl |
| Passender Zylinderstift DIN 7: | 2,0 m 6 x 20 |
| d1: | M8 |
| d2: | 30 |
| d3: | 20 |
| d4: | 24 |
| d5 vorgebohrt: | 1,9 |
| e: | 3 |
| h: | 17 |
| k: | 12 |
| t: | 7 |
Dokumente
1
| Variante | Form | Material | d1 | Ausführung | Preis |
|---|---|---|---|---|---|
|
10208803 (24480.0005) |
A | Stahl | M5 | ohne Stiftloch | ab 1,26 € |
|
10208804 (24480.0006) |
A | Stahl | M6 | ohne Stiftloch | ab 1,40 € |
|
10208808 (24480.0105) |
B | Stahl | M5 | mit Stiftloch | ab 1,53 € |
|
10208809 (24480.0106) |
B | Stahl | M6 | mit Stiftloch | ab 1,83 € |
|
10208805 (24480.0008) |
A | Stahl | M8 | ohne Stiftloch | ab 1,96 € |
|
10208810 (24480.0108) |
B | Stahl | M8 | mit Stiftloch | ab 2,42 € |
|
10208806 (24480.0010) |
A | Stahl | M10 | ohne Stiftloch | ab 3,03 € |
|
10208813 (24480.0205) |
A | rostfreier Stahl | M5 | ohne Stiftloch | ab 3,13 € |
|
10208811 (24480.0110) |
B | Stahl | M10 | mit Stiftloch | ab 3,48 € |
|
10208814 (24480.0206) |
A | rostfreier Stahl | M6 | ohne Stiftloch | ab 3,68 € |
|
10208807 (24480.0012) |
A | Stahl | M12 | ohne Stiftloch | ab 3,97 € |
|
10208818 (24480.0305) |
B | rostfreier Stahl | M5 | mit Stiftloch | ab 4,00 € |
|
10208819 (24480.0306) |
B | rostfreier Stahl | M6 | mit Stiftloch | ab 4,69 € |
|
10208812 (24480.0112) |
B | Stahl | M12 | mit Stiftloch | ab 4,71 € |
|
10208815 (24480.0208) |
A | rostfreier Stahl | M8 | ohne Stiftloch | ab 5,50 € |
|
10208820 (24480.0308) |
B | rostfreier Stahl | M8 | mit Stiftloch | ab 6,15 € |
|
10208816 (24480.0210) |
A | rostfreier Stahl | M10 | ohne Stiftloch | ab 7,40 € |
|
10208821 (24480.0310) |
B | rostfreier Stahl | M10 | mit Stiftloch | ab 8,35 € |
|
10208817 (24480.0212) |
A | rostfreier Stahl | M12 | ohne Stiftloch | ab 9,15 € |
|
10208822 (24480.0312) |
B | rostfreier Stahl | M12 | mit Stiftloch | ab 11,75 € |
