Produktnummer:
10209337
Herstellernummer:
24650.0463
Hersteller:
Halder

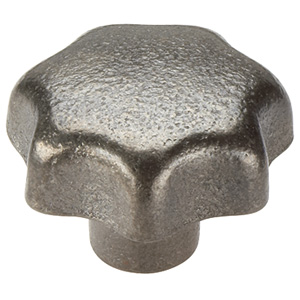

Halder 24650.0463 Sterngriff DIN 6336 Grauguss Ø 63 mit Gewindesackloch, Form E
Ausführung:
mit Gewindesackloch
Form:
E
d1:
63
| Anzahl | Preis* |
|---|---|
| Bis 82 |
5,10 €
|
| Bis 115 |
4,59 €
|
| Bis 147 |
4,08 €
|
| Ab 148 |
3,76 €
|
Produktnummer:
10209337
EH 24650 Sterngriffe DIN 6336 Grauguss
Beschreibung
Werkstoff: Grauguss GG 20, blank Hinweis: Sandgestrahlt oder gerommelt. Sonderausführungen mit anderer Bohrung oder oberflächenveredelt werden auf Bestellung gefertigt.

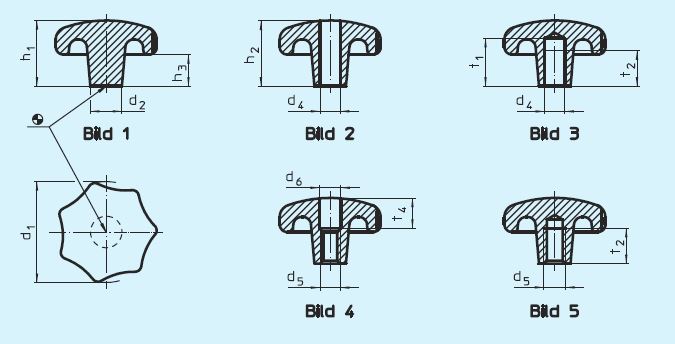

Eigenschaften
| Ausführung: | mit Gewindesackloch |
|---|---|
| Form: | E |
| Gewicht g: | 235 |
| d1: | 63 |
| d2: | 20 |
| d4 H7: | - |
| d5: | M12 |
| d6: | - |
| h1: | - |
| h2: | 40 |
| h3: | - |
| t1: | - |
| t2: | 22 |
| t4: | - |
Dokumente
1
| Variante | Form | d1 | Ausführung | Preis |
|---|---|---|---|---|
|
10209314 (24650.0032) |
A | 32 | Rohteil | ab 1,28 € |
|
10209315 (24650.0040) |
A | 40 | Rohteil | ab 1,71 € |
|
10209319 (24650.0132) |
B | 32 | mit glatter Bohrung durchgehend | ab 2,41 € |
|
10209324 (24650.0232) |
C | 32 | mit glattem Sackloch | ab 2,41 € |
|
10209334 (24650.0432) |
E | 32 | mit Gewindesackloch | ab 2,41 € |
|
10209329 (24650.0332) |
D | 32 | mit Gewinde aufgebohrt | ab 2,52 € |
|
10209335 (24650.0440) |
E | 40 | mit Gewindesackloch | ab 2,70 € |
|
10209325 (24650.0240) |
C | 40 | mit glattem Sackloch | ab 2,78 € |
|
10209320 (24650.0140) |
B | 40 | mit glatter Bohrung durchgehend | ab 2,88 € |
|
10209330 (24650.0340) |
D | 40 | mit Gewinde aufgebohrt | ab 2,93 € |
|
10209316 (24650.0050) |
A | 50 | Rohteil | ab 3,26 € |
|
10209317 (24650.0063) |
A | 63 | Rohteil | ab 3,56 € |
|
10209326 (24650.0250) |
C | 50 | mit glattem Sackloch | ab 4,57 € |
|
10209331 (24650.0350) |
D | 50 | mit Gewinde aufgebohrt | ab 4,74 € |
|
10209336 (24650.0450) |
E | 50 | mit Gewindesackloch | ab 4,74 € |
|
10209321 (24650.0150) |
B | 50 | mit glatter Bohrung durchgehend | ab 5,05 € |
|
10209327 (24650.0263) |
C | 63 | mit glattem Sackloch | ab 5,10 € |
|
10209332 (24650.0363) |
D | 63 | mit Gewinde aufgebohrt | ab 5,10 € |
|
10209337 (24650.0463) |
E | 63 | mit Gewindesackloch | ab 5,10 € |
|
10209322 (24650.0163) |
B | 63 | mit glatter Bohrung durchgehend | ab 5,45 € |
|
10209318 (24650.0080) |
A | 80 | Rohteil | ab 7,35 € |
|
10209328 (24650.0280) |
C | 80 | mit glattem Sackloch | ab 9,60 € |
|
10209338 (24650.0480) |
E | 80 | mit Gewindesackloch | ab 9,60 € |
|
10209333 (24650.0380) |
D | 80 | mit Gewinde aufgebohrt | ab 9,75 € |
|
10209323 (24650.0180) |
B | 80 | mit glatter Bohrung durchgehend | ab 10,10 € |
