Produktnummer:
10096424
Herstellernummer:
K0406.102802
Hersteller:
Kipp

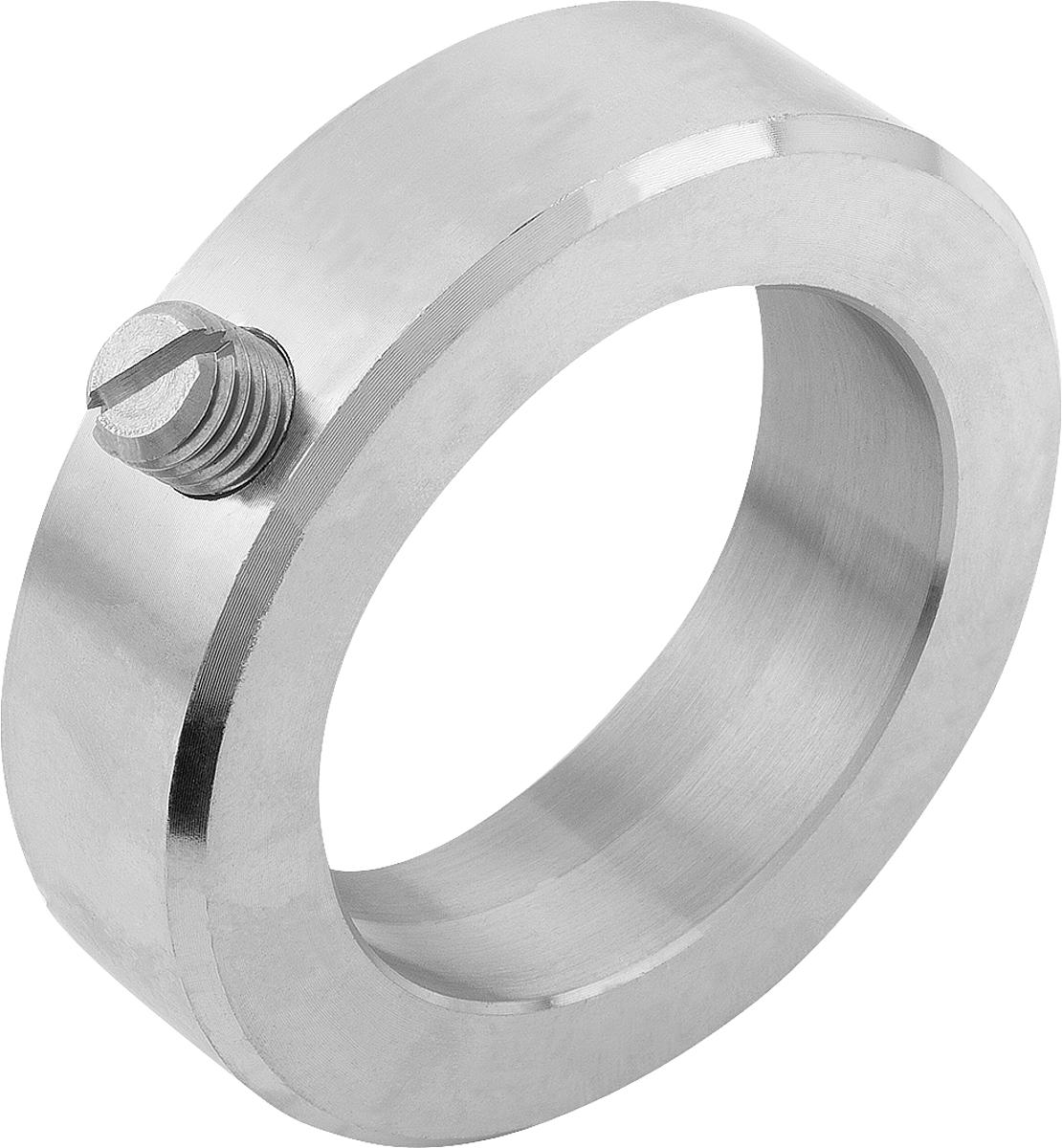

Kipp K0406.102802 STELLRING DIN 705 FORM A EDELSTAHL, D1=28
B:
16
D1:
28
D2:
45
D3 Gewindestift:
M8x12
Form:
A
Gewicht ca. kg:
0,122
| Anzahl | Preis* |
|---|---|
| Bis 49 |
9,68 €
|
| Bis 99 |
9,20 €
|
| Bis 249 |
8,71 €
|
| Bis 499 |
8,23 €
|
| Bis 999 |
7,74 €
|
| Ab 1000 |
7,26 €
|
Produktnummer:
10096424

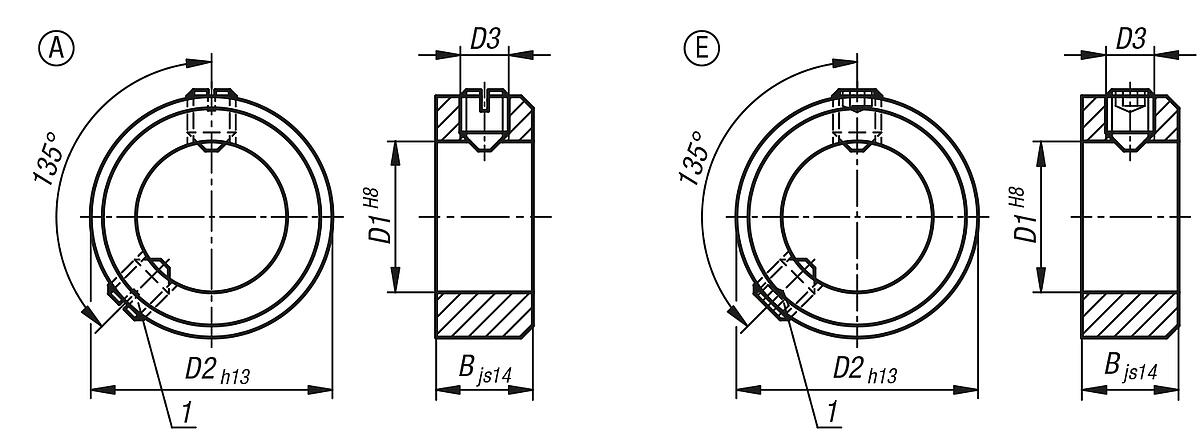

DIN 705 Edelstahl Stellringe
Beschreibung
Werkstoff, Ausführung: Edelstahl 1.4305, blank. K0406 Stellringe
Eigenschaften
| B: | 16 |
|---|---|
| D1: | 28 |
| D2: | 45 |
| D3 Gewindestift: | M8x12 |
| Form: | A |
| Gewicht ca. kg: | 0,122 |
Dokumente
1
| Variante | B | D1 | D2 | D3 Gewindestift | Form | Gewicht ca. kg | Preis |
|---|---|---|---|---|---|---|---|
|
10096451 (K0406.300302) |
5 | 3 | 7 | M2x3 | E | 0,001 | ab 1,18 € |
|
10096452 (K0406.300402) |
5 | 4 | 8 | M2,5x3 | E | 0,001 | ab 1,18 € |
|
10096453 (K0406.300502) |
6 | 5 | 10 | M3x4 | E | 0,003 | ab 1,18 € |
|
10096405 (K0406.100302) |
5 | 3 | 7 | M2x3 | A | 0,001 | ab 1,22 € |
|
10096406 (K0406.100402) |
5 | 4 | 8 | M2,5x3 | A | 0,001 | ab 1,22 € |
|
10096407 (K0406.100502) |
6 | 5 | 10 | M3x4 | A | 0,003 | ab 1,22 € |
|
10096454 (K0406.300602) |
8 | 6 | 12 | M4x5 | E | 0,005 | ab 1,26 € |
|
10096455 (K0406.300702) |
8 | 7 | 12 | M4x5 | E | 0,005 | ab 1,26 € |
|
10096408 (K0406.100602) |
8 | 6 | 12 | M4x5 | A | 0,005 | ab 1,33 € |
|
10096409 (K0406.100702) |
8 | 7 | 12 | M4x5 | A | 0,005 | ab 1,33 € |
|
10096456 (K0406.300802) |
8 | 8 | 16 | M4x6 | E | 0,009 | ab 1,50 € |
|
10096410 (K0406.100802) |
8 | 8 | 16 | M4x6 | A | 0,009 | ab 1,61 € |
|
10096457 (K0406.300902) |
10 | 9 | 18 | M5x8 | E | 0,015 | ab 1,70 € |
|
10096411 (K0406.100902) |
10 | 9 | 18 | M5x8 | A | 0,015 | ab 1,77 € |
|
10096458 (K0406.301002) |
10 | 10 | 20 | M5x8 | E | 0,018 | ab 1,82 € |
|
10096459 (K0406.301102) |
10 | 11 | 20 | M5x8 | E | 0,017 | ab 1,87 € |
|
10096412 (K0406.101002) |
10 | 10 | 20 | M5x8 | A | 0,018 | ab 1,92 € |
|
10096413 (K0406.101102) |
10 | 11 | 20 | M5x8 | A | 0,017 | ab 1,92 € |
|
10096414 (K0406.101202) |
12 | 12 | 22 | M6x8 | A | 0,025 | ab 2,40 € |
|
10096460 (K0406.301202) |
12 | 12 | 22 | M6x8 | E | 0,025 | ab 2,40 € |
|
10096415 (K0406.101402) |
12 | 14 | 25 | M6x8 | A | 0,032 | ab 2,72 € |
|
10096416 (K0406.101502) |
12 | 15 | 25 | M6x8 | A | 0,030 | ab 2,72 € |
|
10096461 (K0406.301402) |
12 | 14 | 25 | M6x8 | E | 0,032 | ab 2,72 € |
|
10096462 (K0406.301502) |
12 | 15 | 25 | M6x8 | E | 0,030 | ab 2,72 € |
|
10096463 (K0406.301602) |
12 | 16 | 28 | M6x8 | E | 0,039 | ab 3,83 € |
|
10096417 (K0406.101602) |
12 | 16 | 28 | M6x8 | A | 0,039 | ab 3,93 € |
|
10096464 (K0406.301802) |
14 | 18 | 32 | M6x8 | E | 0,060 | ab 4,72 € |
|
10096465 (K0406.302002) |
14 | 20 | 32 | M6x8 | E | 0,054 | ab 4,72 € |
|
10096418 (K0406.101802) |
14 | 18 | 32 | M6x8 | A | 0,060 | ab 5,04 € |
|
10096419 (K0406.102002) |
14 | 20 | 32 | M6x8 | A | 0,054 | ab 5,04 € |
|
10096467 (K0406.302402) |
16 | 24 | 40 | M8x12 | E | 0,101 | ab 7,82 € |
|
10096468 (K0406.302502) |
16 | 25 | 40 | M8x10 | E | 0,096 | ab 7,82 € |
|
10096469 (K0406.302602) |
16 | 26 | 40 | M8x10 | E | 0,091 | ab 7,82 € |
|
10096421 (K0406.102402) |
16 | 24 | 40 | M8x12 | A | 0,101 | ab 8,27 € |
|
10096422 (K0406.102502) |
16 | 25 | 40 | M8x10 | A | 0,096 | ab 8,27 € |
|
10096423 (K0406.102602) |
16 | 26 | 40 | M8x10 | A | 0,091 | ab 8,27 € |
|
10096470 (K0406.302802) |
16 | 28 | 45 | M8x12 | E | 0,122 | ab 9,18 € |
|
10096471 (K0406.303002) |
16 | 30 | 45 | M8x10 | E | 0,111 | ab 9,18 € |
|
10096424 (K0406.102802) |
16 | 28 | 45 | M8x12 | A | 0,122 | ab 9,68 € |
|
10096425 (K0406.103002) |
16 | 30 | 45 | M8x10 | A | 0,111 | ab 9,68 € |
|
10096472 (K0406.303202) |
16 | 32 | 50 | M8x12 | E | 0,146 | ab 11,65 € |
|
10096426 (K0406.103202) |
16 | 32 | 50 | M8x12 | A | 0,146 | ab 12,22 € |
|
10096474 (K0406.303502) |
16 | 35 | 56 | M8x12 | E | 0,189 | ab 12,34 € |
|
10096428 (K0406.103502) |
16 | 35 | 56 | M8x12 | A | 0,189 | ab 12,58 € |
|
10096475 (K0406.303602) |
16 | 36 | 56 | M8x12 | E | 0,182 | ab 13,87 € |
|
10096476 (K0406.303802) |
16 | 38 | 56 | M8x12 | E | 0,167 | ab 14,81 € |
|
10096429 (K0406.103602) |
16 | 36 | 56 | M8x12 | A | 0,182 | ab 15,35 € |
|
10096430 (K0406.103802) |
16 | 38 | 56 | M8x12 | A | 0,167 | ab 16,08 € |
|
10096477 (K0406.304002) |
18 | 40 | 63 | M10x16 | E | 0,263 | ab 19,40 € |
|
10096478 (K0406.304202) |
18 | 42 | 63 | M10x16 | E | 0,245 | ab 19,40 € |
|
10096431 (K0406.104002) |
18 | 40 | 63 | M10x16 | A | 0,263 | ab 20,23 € |
|
10096432 (K0406.104202) |
18 | 42 | 63 | M10x16 | A | 0,245 | ab 20,23 € |
|
10096479 (K0406.304502) |
18 | 45 | 70 | M10x16 | E | 0,319 | ab 22,58 € |
|
10096480 (K0406.304802) |
18 | 48 | 70 | M10x16 | E | 0,288 | ab 22,58 € |
|
10096433 (K0406.104502) |
18 | 45 | 70 | M10x16 | A | 0,319 | ab 23,96 € |
|
10096434 (K0406.104802) |
18 | 48 | 70 | M10x16 | A | 0,288 | ab 23,96 € |
|
10096481 (K0406.305002) |
18 | 50 | 80 | M10x16 | E | 0,433 | ab 24,08 € |
|
10096482 (K0406.305202) |
18 | 52 | 80 | M10x16 | E | 0,410 | ab 24,08 € |
|
10096483 (K0406.305502) |
18 | 55 | 80 | M10x16 | E | 0,375 | ab 24,08 € |
|
10096484 (K0406.305602) |
18 | 56 | 80 | M10x16 | E | 0,362 | ab 24,08 € |
|
10096435 (K0406.105002) |
18 | 50 | 80 | M10x16 | A | 0,433 | ab 29,79 € |
|
10096436 (K0406.105202) |
18 | 52 | 80 | M10x16 | A | 0,410 | ab 30,62 € |
|
10096437 (K0406.105502) |
18 | 55 | 80 | M10x16 | A | 0,375 | ab 30,62 € |
|
10096438 (K0406.105602) |
18 | 56 | 80 | M10x16 | A | 0,362 | ab 30,62 € |
|
10096485 (K0406.305802) |
20 | 58 | 90 | M10x16 | E | 0,584 | ab 37,03 € |
|
10096486 (K0406.306002) |
20 | 60 | 90 | M10x16 | E | 0,555 | ab 37,03 € |
|
10096487 (K0406.306302) |
20 | 63 | 90 | M10x16 | E | 0,509 | ab 37,03 € |
|
10096439 (K0406.105802) |
20 | 58 | 90 | M10x16 | A | 0,584 | ab 43,57 € |
|
10096440 (K0406.106002) |
20 | 60 | 90 | M10x16 | A | 0,555 | ab 43,57 € |
|
10096441 (K0406.106302) |
20 | 63 | 90 | M10x16 | A | 0,509 | ab 43,57 € |
|
10096488 (K0406.306502) |
20 | 65 | 100 | M10x20 | E | 0,712 | ab 48,99 € |
|
10096489 (K0406.306802) |
20 | 68 | 100 | M10x20 | E | 0,663 | ab 48,99 € |
|
10096490 (K0406.307002) |
20 | 70 | 100 | M10x20 | E | 0,629 | ab 48,99 € |
|
10096442 (K0406.106502) |
20 | 65 | 100 | M10x20 | A | 0,712 | ab 57,52 € |
|
10096443 (K0406.106802) |
20 | 68 | 100 | M10x20 | A | 0,663 | ab 57,52 € |
|
10096444 (K0406.107002) |
20 | 70 | 100 | M10x20 | A | 0,629 | ab 57,52 € |
|
10096491 (K0406.307202) |
22 | 72 | 110 | M12x20 | E | 0,938 | ab 65,73 € |
|
10096492 (K0406.307502) |
22 | 75 | 110 | M12x20 | E | 0,878 | ab 65,73 € |
|
10096493 (K0406.308002) |
22 | 80 | 110 | M12x20 | E | 0,773 | ab 65,73 € |
|
10096445 (K0406.107202) |
22 | 72 | 110 | M12x20 | A | 0,938 | ab 77,94 € |
|
10096446 (K0406.107502) |
22 | 75 | 110 | M12x20 | A | 0,878 | ab 77,94 € |
|
10096447 (K0406.108002) |
22 | 80 | 110 | M12x20 | A | 0,773 | ab 77,94 € |
|
10096494 (K0406.308502) |
22 | 85 | 125 | M12x25 | E | 1,139 | ab 85,56 € |
|
10096495 (K0406.309002) |
22 | 90 | 125 | M12x20 | E | 1,021 | ab 85,56 € |
|
10096448 (K0406.108502) |
22 | 85 | 125 | M12x25 | A | 1,139 | ab 100,44 € |
|
10096449 (K0406.109002) |
22 | 90 | 125 | M12x20 | A | 1,021 | ab 100,44 € |
|
10096496 (K0406.310002) |
25 | 100 | 140 | M12x25 | E | 1,480 | ab 101,21 € |
|
10096450 (K0406.110002) |
25 | 100 | 140 | M12x25 | A | 1,480 | ab 119,31 € |
|
10096420 (K0406.102202) |
14 | 22 | 36 | M6x10 | A | 0,070 | Auf Anfrage |
|
10096427 (K0406.103402) |
16 | 34 | 50 | M8x12 | A | 0,133 | Auf Anfrage |
|
10096466 (K0406.302202) |
14 | 22 | 36 | M6x10 | E | 0,070 | Auf Anfrage |
|
10096473 (K0406.303402) |
16 | 34 | 50 | M8x12 | E | 0,133 | Auf Anfrage |
