Produktnummer:
10091258
Herstellernummer:
K0479.518
Hersteller:
Kipp

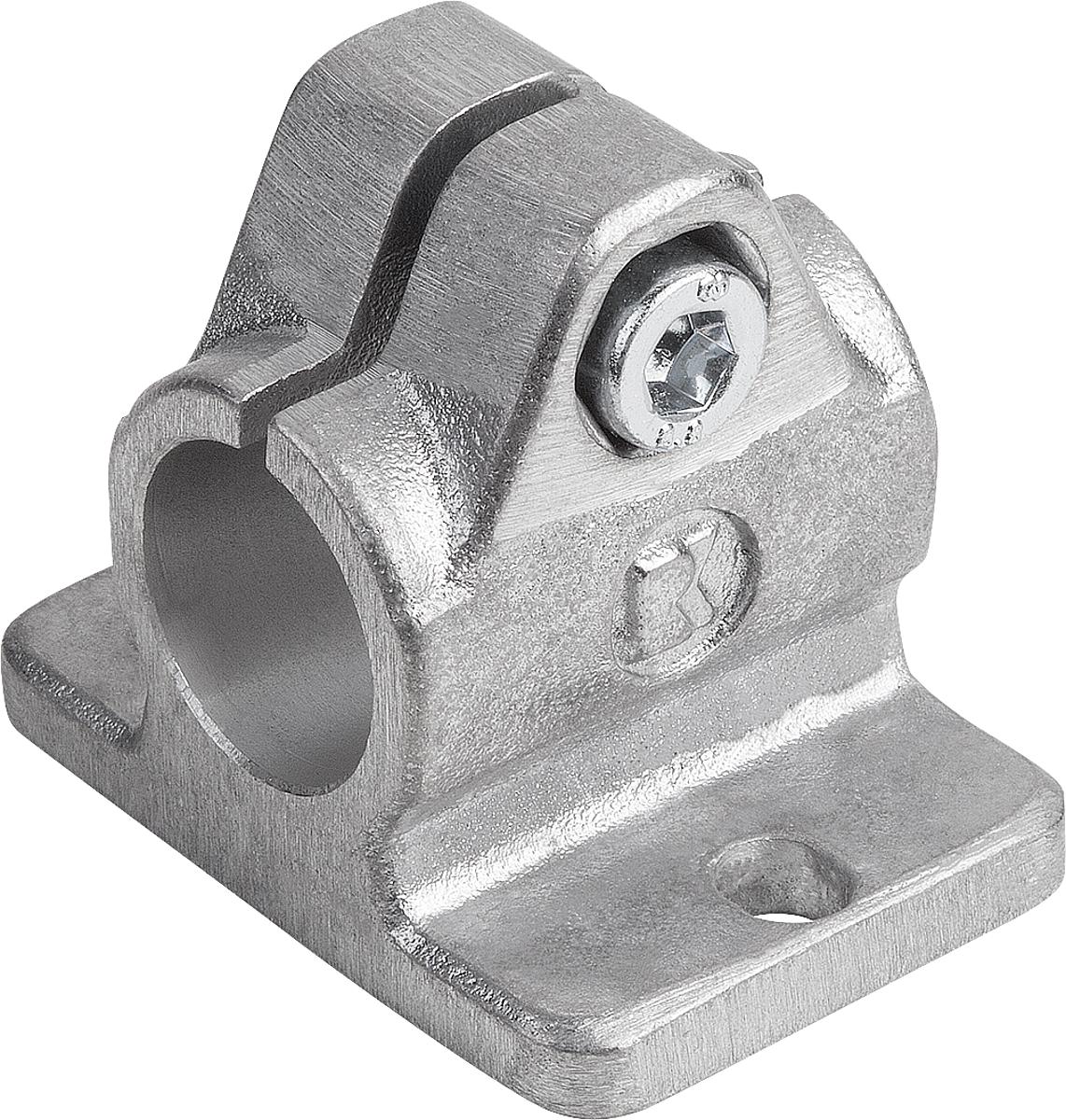

Kipp K0479.518 FLANSCHKLEMMSTÜCK ALUMINIUMGUSS, A=18,1
A:
18,1
B:
5,5 (2x)
C:
18
D:
26
E:
32
F:
31
G:
35
Gewicht ca. kg:
0,056
H:
-
K:
32,5
L:
41
M:
50
N:
5
O:
-
P:
23
R:
-
S:
M6x20
U:
40
| Anzahl | Preis* |
|---|---|
| Bis 99 |
12,79 €
|
| Bis 249 |
12,41 €
|
| Bis 499 |
12,15 €
|
| Bis 999 |
11,51 €
|
| Ab 1000 |
10,87 €
|
Produktnummer:
10091258
K0479 Flanschklemmstücke, Aluminium
Beschreibung
Werkstoff, Ausführung:
Aluminiumguss, gleitgeschliffen.
Zylinderschraube DIN 7984 und Sechskantmutter DIN 985, Stahl verzinkt.
Bestellbeispiel:
K0479.518
Hinweis:
* Langloch.
Auf Anfrage:
Klemmhebel zur Befestigung und weitere Durchmesser.
Zubehör:
- Rund- und Vierkantrohre K0493
Aluminiumguss, gleitgeschliffen.
Zylinderschraube DIN 7984 und Sechskantmutter DIN 985, Stahl verzinkt.
Bestellbeispiel:
K0479.518
Hinweis:
* Langloch.
Auf Anfrage:
Klemmhebel zur Befestigung und weitere Durchmesser.
Zubehör:
- Rund- und Vierkantrohre K0493

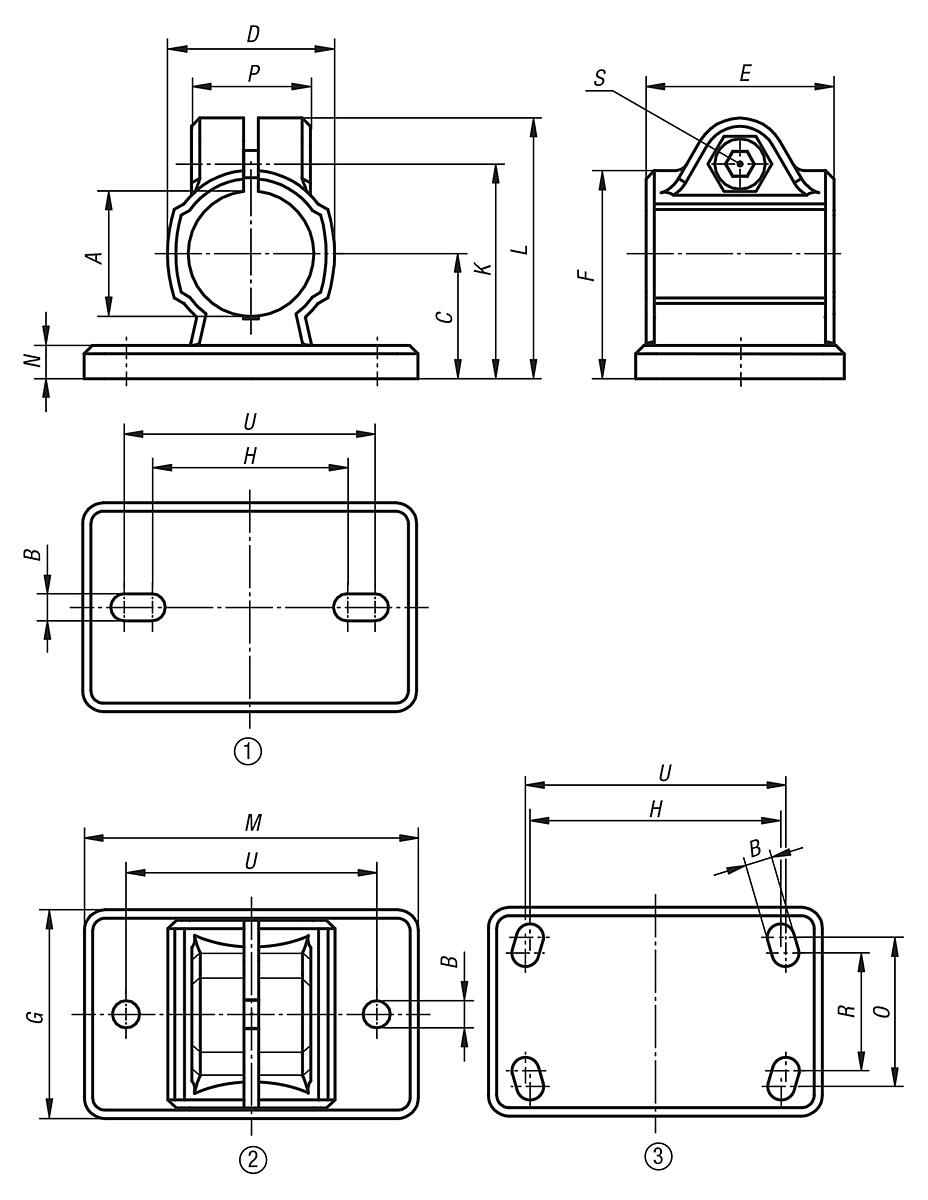

Eigenschaften
| A: | 18,1 |
|---|---|
| B: | 5,5 (2x) |
| C: | 18 |
| D: | 26 |
| E: | 32 |
| F: | 31 |
| G: | 35 |
| Gewicht ca. kg: | 0,056 |
| H: | - |
| K: | 32,5 |
| L: | 41 |
| M: | 50 |
| N: | 5 |
| O: | - |
| P: | 23 |
| R: | - |
| S: | M6x20 |
| U: | 40 |
Dokumente
1
| Variante | H | D | C | Gewicht ca. kg | L | N | A | P | S | E | O | G | M | B | F | K | R | U | Preis |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10091254 (K0479.512) |
38 | 26 | 18 | 0,059 | 41 | 5 | 12,1 | 23 | M6x20 | 32 | - | 35 | 50 | 5,5* (2x) | 31 | 32,5 | - | 40 | ab 12,79 € |
|
10091255 (K0479.514) |
- | 26 | 18 | 0,063 | 41 | 5 | 14,1 | 23 | M6x20 | 32 | - | 35 | 50 | 5,5 (2x) | 31 | 32,5 | - | 40 | ab 12,79 € |
|
10091256 (K0479.515) |
- | 26 | 18 | 0,062 | 41 | 5 | 15,1 | 23 | M6x20 | 32 | - | 35 | 50 | 5,5 (2x) | 31 | 32,5 | - | 40 | ab 12,79 € |
|
10091257 (K0479.516) |
38 | 26 | 18 | 0,060 | 41 | 5 | 16,1 | 23 | M6x20 | 32 | - | 35 | 50 | 5,5* (2x) | 31 | 32,5 | - | 40 | ab 12,79 € |
|
10091258 (K0479.518) |
- | 26 | 18 | 0,056 | 41 | 5 | 18,1 | 23 | M6x20 | 32 | - | 35 | 50 | 5,5 (2x) | 31 | 32,5 | - | 40 | ab 12,79 € |
|
10091259 (K0479.520) |
53 | 40 | 30 | 0,197 | 63 | 7 | 20,1 | 33 | M8x25 | 40 | - | 55 | 78 | 6,5* (2x) | 50 | 53 | - | 60 | ab 13,65 € |
|
10091260 (K0479.525) |
53 | 40 | 30 | 0,180 | 63 | 7 | 25,1 | 33 | M8x25 | 40 | - | 55 | 78 | 6,5* (2x) | 50 | 53 | - | 60 | ab 13,65 € |
|
10091261 (K0479.530) |
53 | 40 | 30 | 0,159 | 63 | 7 | 30,1 | 33 | M8x25 | 40 | - | 55 | 78 | 6,5* (2x) | 50 | 53 | - | 60 | ab 13,65 € |
|
10091262 (K0479.540) |
80 | 56 | 42 | 0,397 | 87 | 10 | 40,17 | 40 | M10x30 | 60 | 60 | 80 | 105 | 8,5* (4x) | 70 | 74 | 52 | 82 | ab 23,01 € |
|
10091263 (K0479.550) |
98 | 66 | 50 | 0,628 | 98 | 14 | 50,17 | 45 | M10x35 | 65 | 62 | 90 | 128 | 10,5* (4x) | 83 | 85 | 60 | 100 | ab 23,52 € |
