Produktnummer:
10078461
Herstellernummer:
K0734.19161
Hersteller:
Kipp

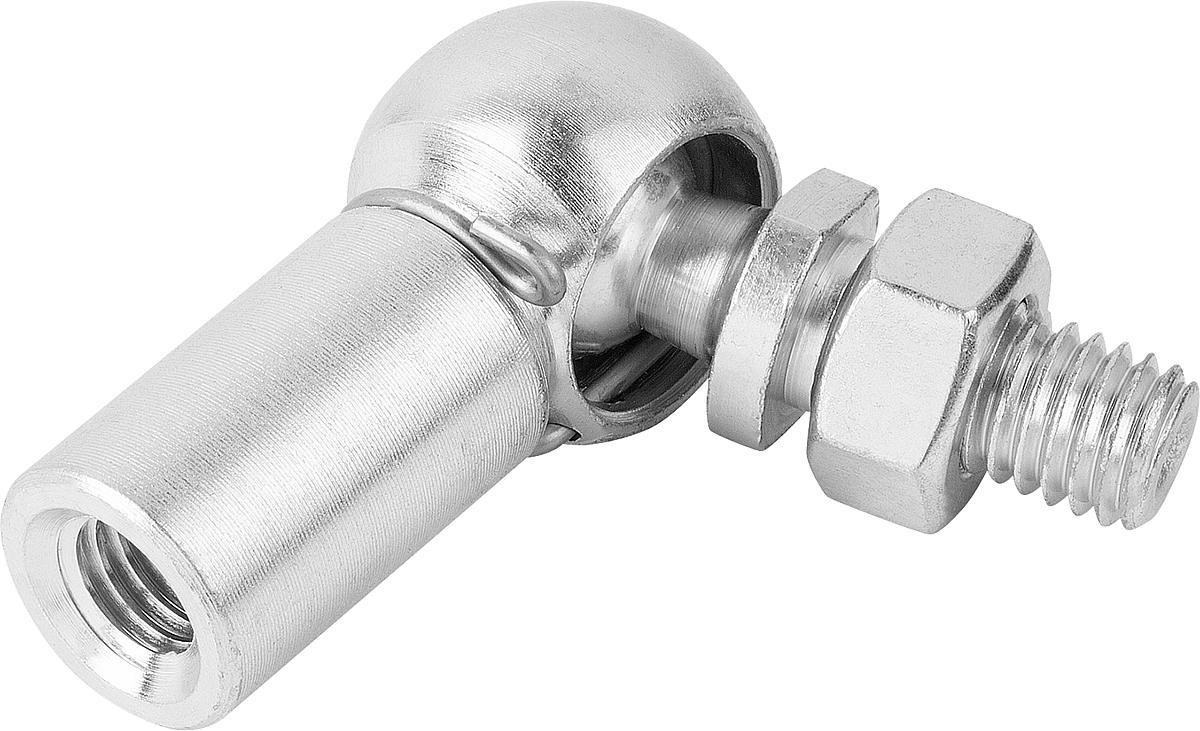

Kipp K0734.19161 WINKELGELENK FORM CS, D1=19, D2=M16
D4:
M16
Form:
CS
Material:
Stahl
| Anzahl | Preis* |
|---|---|
| Bis 99 |
10,22 €
|
| Bis 249 |
9,91 €
|
| Bis 499 |
9,71 €
|
| Bis 999 |
9,40 €
|
| Ab 1000 |
9,20 €
|
Produktnummer:
10078461
K0734_CS Winkelgelenke DIN 71802 Form CS
Beschreibung
Werkstoff:
Stahl oder Edelstahl 1.4305.
Ausführung:
verzinkt und chromatiert. Edelstahlausführung blank.
Hinweis:
Linksgewinde.
Stahl oder Edelstahl 1.4305.
Ausführung:
verzinkt und chromatiert. Edelstahlausführung blank.
Hinweis:
Linksgewinde.

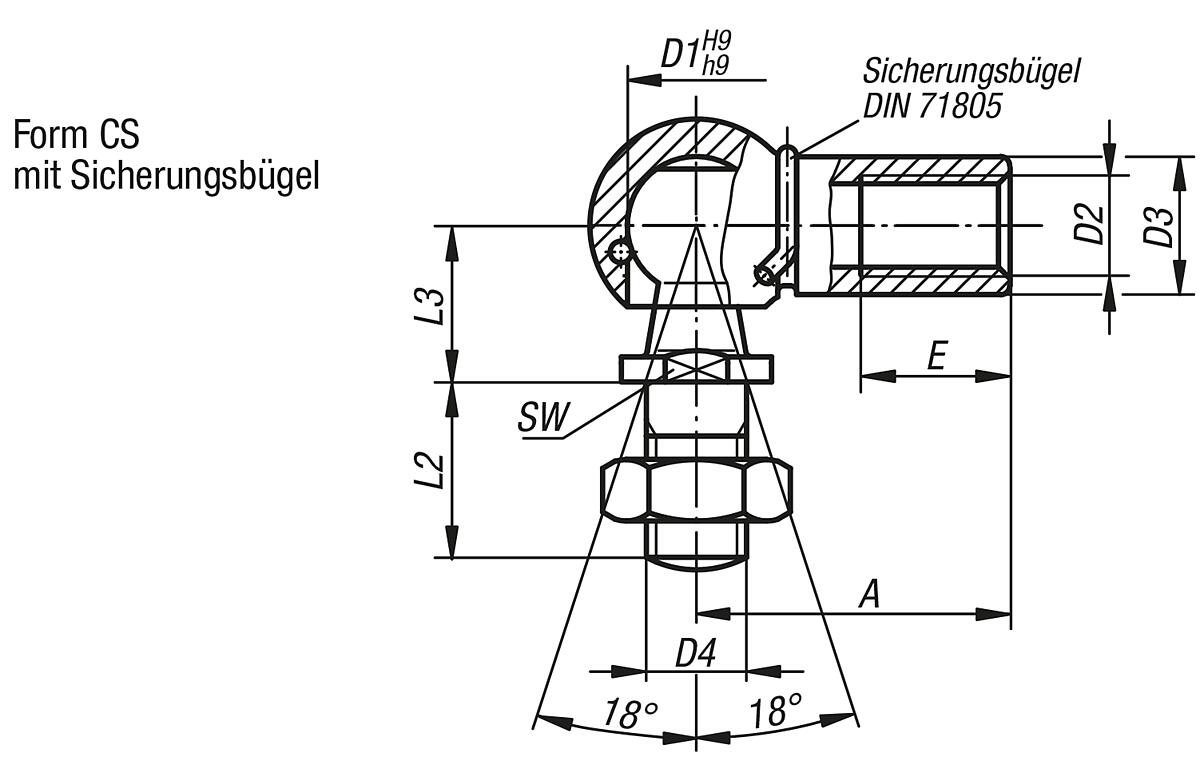

Eigenschaften
| A: | 45 |
|---|---|
| D1: | 19 |
| D2: | M16 |
| D3: | 22 |
| D4: | M16 |
| E: | 21,5 |
| Form: | CS |
| Gewicht ca. g: | 220,9 |
| L2: | 27 |
| L3: | 20 |
| Material: | Stahl |
| SW: | 16 |
| Zubehör: | 27655-19161, 27656-1918, 27656-1916, 27660-19 |
Dokumente
1
| Variante | D4 | Form | Material | Preis |
|---|---|---|---|---|
|
10078455 (K0734.08051) |
M5 | CS | Stahl | ab 1,61 € |
|
10078456 (K0734.10061) |
M6 | CS | Stahl | ab 1,80 € |
|
10078457 (K0734.13081) |
M8 | CS | Stahl | ab 2,38 € |
|
10078458 (K0734.16101) |
M10 | CS | Stahl | ab 3,49 € |
|
10078459 (K0734.16121) |
M12 | CS | Stahl | ab 4,03 € |
|
10230330 (K0734.161211) |
M12 | CS | Stahl | ab 4,74 € |
|
10078460 (K0734.19141) |
M14x1,5 | CS | Stahl | ab 7,75 € |
|
10078461 (K0734.19161) |
M16 | CS | Stahl | ab 10,22 € |
|
10078462 (K0734.08052) |
M5 | CS | Edelstahl | ab 11,23 € |
|
10078463 (K0734.10062) |
M6 | CS | Edelstahl | ab 12,58 € |
|
10078464 (K0734.13082) |
M8 | CS | Edelstahl | ab 13,30 € |
|
10078465 (K0734.16102) |
M10 | CS | Edelstahl | ab 23,85 € |
|
10078466 (K0734.16122) |
M12 | CS | Edelstahl | ab 25,29 € |
