Produktnummer:
10034898
Herstellernummer:
70229-W501140.SM1601B
Hersteller:
LE70229-Leschhorn

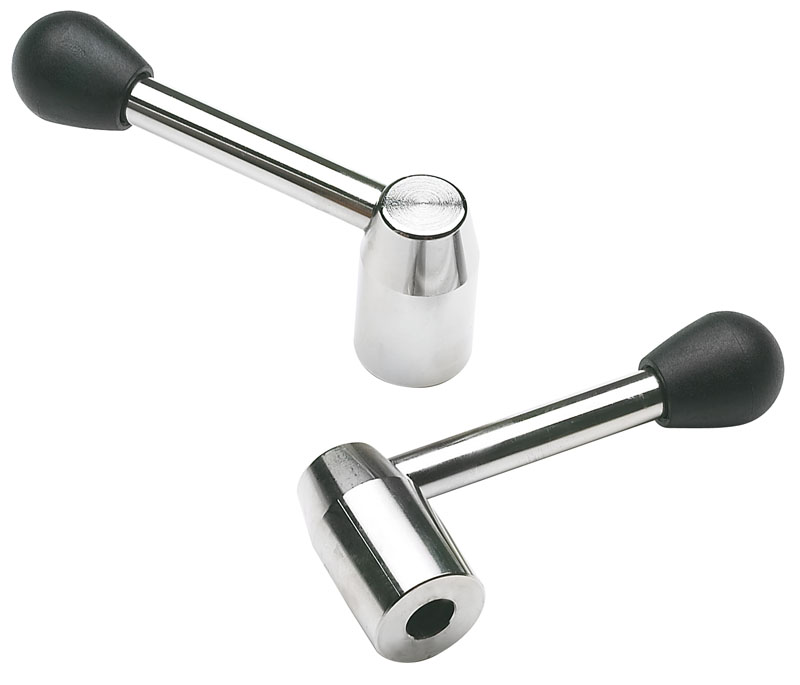

Leschhorn W501 verstellbare Spannhebel d 36; R 140; H 58; d1 M16; B- Schwarzoxyd
Farbe:
B - Schwarzoxyd
Gewicht [kg]:
0,513

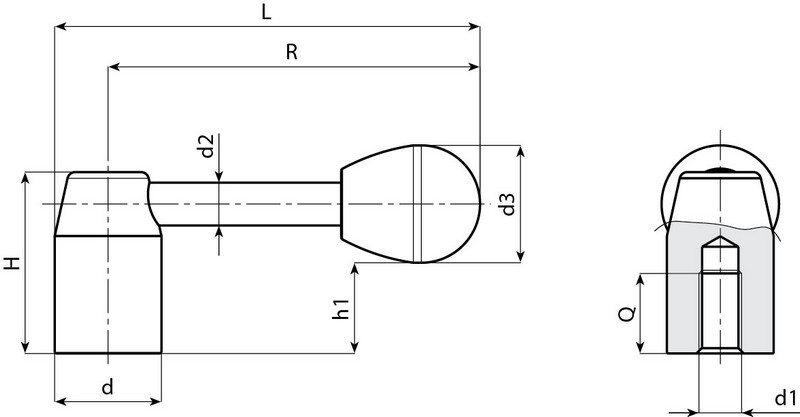

H:
58
Ht:
103
L:
159
Q:
27
R:
140
d (mm):
36
d1:
M16
d2:
14
d3:
32
h1:
31
Produktanfrage
LE W501 verstellbare Spannhebel, Stahl
Beschreibung
LE W501 verstellbare Spannhebel Stahl der Festigkeitsklasse 5.8. mit geringer Rauhtiefe gedreht, Handgriff aus verstärktem PA, Gewindesackloch mit Toleranz 6G
Eigenschaften
| Farbe: | B - Schwarzoxyd |
|---|---|
| Gewicht [kg]: | 0,513 |
| H: | 58 |
| Ht: | 103 |
| L: | 159 |
| Q: | 27 |
| R: | 140 |
| d (mm): | 36 |
| d1: | M16 |
| d2: | 14 |
| d3: | 32 |
| h1: | 31 |
Dokumente
1
| Variante | Farbe | Gewicht [kg] | H | Ht | L | Q | R | d (mm) | d1 | d2 | d3 | h1 | Preis |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10034912 (70229-W501110.SM1201H) |
H - Vernickelt | 0,280 | 48 | 84 | 124 | 23 | 110 | 28 | M12 | 12 | 28 | 25 | ab 24,67 € |
|
10034894 (70229-W501125.SM1601H) |
H - Vernickelt | 0,340 | 52 | 94 | 141 | 25 | 125 | 32 | M16 | 12 | 32 | 27 | ab 27,70 € |
|
10034897 (70229-W501140.SM1601H) |
H - Vernickelt | 0,513 | 58 | 103 | 159 | 27 | 140 | 36 | M16 | 14 | 32 | 31 | ab 34,10 € |
|
10034900 (70229-W501150.SM2001H) |
H - Vernickelt | 0,687 | 64 | 113 | 170 | 29 | 150 | 40 | M20 | 16 | 37 | 34 | ab 40,23 € |
|
10034895 (70229-W501125.SM1601B) |
B - Schwarzoxyd | 0,340 | 52 | 94 | 141 | 25 | 125 | 32 | M16 | 12 | 32 | 27 | Auf Anfrage |
|
10034896 (70229-W501125.SM1601Z) |
Z - Verzinkt | 0,340 | 52 | 94 | 141 | 25 | 125 | 32 | M16 | 12 | 32 | 27 | Auf Anfrage |
|
10034898 (70229-W501140.SM1601B) |
B - Schwarzoxyd | 0,513 | 58 | 103 | 159 | 27 | 140 | 36 | M16 | 14 | 32 | 31 | Auf Anfrage |
|
10034899 (70229-W501140.SM1601Z) |
Z - Verzinkt | 0,513 | 58 | 103 | 159 | 27 | 140 | 36 | M16 | 14 | 32 | 31 | Auf Anfrage |
|
10034901 (70229-W501150.SM2001B) |
B - Schwarzoxyd | 0,687 | 64 | 113 | 170 | 29 | 150 | 40 | M20 | 16 | 37 | 34 | Auf Anfrage |
|
10034902 (70229-W501150.SM2001Z) |
Z - Verzinkt | 0,687 | 64 | 113 | 170 | 29 | 150 | 40 | M20 | 16 | 37 | 34 | Auf Anfrage |
|
10034903 (W501070.SM0801H) |
H - Vernickelt | 0,089 | 34 | 57 | 80 | 17 | 70 | 20 | M8 | 8 | 22 | 17 | Auf Anfrage |
|
10034904 (W501070.SM0801B) |
B - Schwarzoxyd | 0,089 | 34 | 57 | 80 | 17 | 70 | 20 | M8 | 8 | 22 | 17 | Auf Anfrage |
|
10034905 (W501070.SM0801Z) |
Z - Verzinkt | 0,089 | 34 | 57 | 80 | 17 | 70 | 20 | M8 | 8 | 22 | 17 | Auf Anfrage |
|
10034906 (70229-W501080.SM1001H) |
H - Vernickelt | 0,111 | 38 | 64 | 91 | 19 | 80 | 22 | M10 | 8 | 22 | 20 | Auf Anfrage |
|
10034907 (70229-W501080.SM1001B) |
B - Schwarzoxyd | 0,111 | 38 | 64 | 91 | 19 | 80 | 22 | M10 | 8 | 22 | 20 | Auf Anfrage |
|
10034908 (70229-W501080.SM1001Z) |
Z - Verzinkt | 0,111 | 38 | 64 | 91 | 19 | 80 | 22 | M10 | 8 | 22 | 20 | Auf Anfrage |
|
10034909 (W501095.SM1201H) |
H - Vernickelt | 0,160 | 42 | 75 | 107 | 21 | 95 | 24 | M12 | 10 | 28 | 21 | Auf Anfrage |
|
10034910 (W501095.SM1201B) |
B - Schwarzoxyd | 0,160 | 42 | 75 | 107 | 21 | 95 | 24 | M12 | 10 | 28 | 21 | Auf Anfrage |
|
10034911 (W501095.SM1201Z) |
Z - Verzinkt | 0,160 | 42 | 75 | 107 | 21 | 95 | 24 | M12 | 10 | 28 | 21 | Auf Anfrage |
|
10034913 (70229-W501110.SM1201B) |
B - Schwarzoxyd | 0,280 | 48 | 84 | 124 | 23 | 110 | 28 | M12 | 12 | 28 | 25 | Auf Anfrage |
|
10034914 (70229-W501110.SM1201Z) |
Z - Verzinkt | 0,280 | 48 | 84 | 124 | 23 | 110 | 28 | M12 | 12 | 28 | 25 | Auf Anfrage |
