Produktnummer:
10021574
Herstellernummer:
5002014
Hersteller:
Mahr Motion

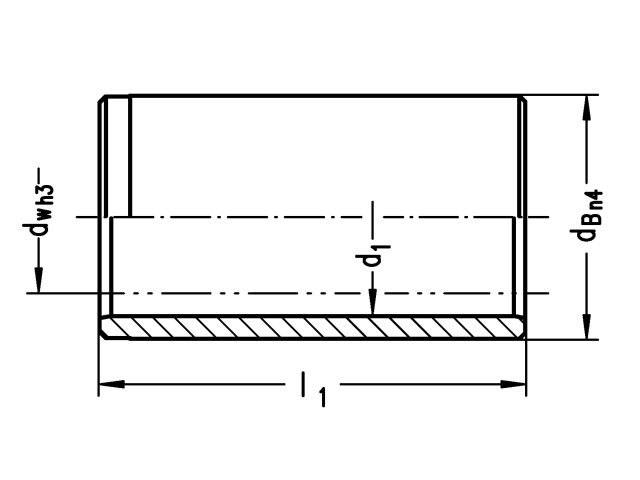

Mahr Motion 5002014 N550 dw = 15; dB = 25; l1 = 33; d1 = 21, Führungsbuchse
d1:
21
dB:
25
dw:
15
l1:
33

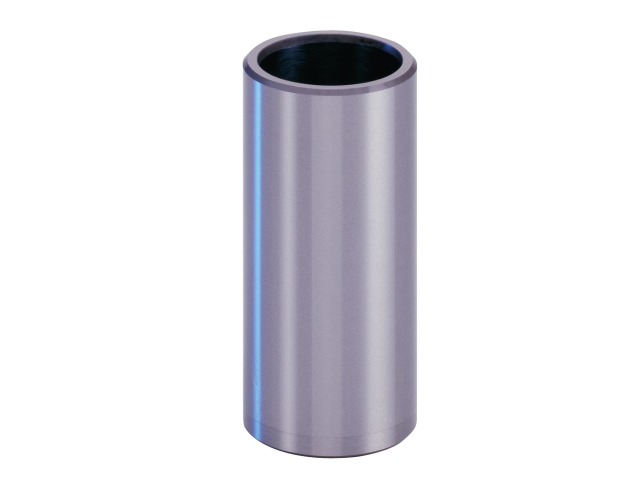

Mahr Typ N550, Führungsbuchsen offen
Beschreibung
LE70035 Werkstoff:
• Wälzlagerstahl 100 Cr 6 (1.2067 bzw. 1.3505)
• sorgfältig wärmebehandelt, Härte HRC 60–64/HV 720–815
• Wälzlagerstahl 100 Cr 6 (1.2067 bzw. 1.3505)
• sorgfältig wärmebehandelt, Härte HRC 60–64/HV 720–815
Eigenschaften
| d1: | 21 |
|---|---|
| dB: | 25 |
| dw: | 15 |
| l1: | 33 |
Dokumente
1
| Variante | dw | d1 | dB | l1 | Preis |
|---|---|---|---|---|---|
|
10021553 (5002002) |
4 | 7 | 10 | 12 | ab 33,94 € |
|
10220457 (5002066) |
4 | 6 | 8 | 15 | ab 36,31 € |
|
10021556 (5002004) |
6 | 10 | 14 | 16 | ab 38,25 € |
|
10021554 (5002003) |
4 | 7 | 10 | 20 | ab 40,19 € |
|
10249388 (5002069) |
6 | 8 | 11 | 20 | ab 41,13 € |
|
10021560 (5002006) |
8 | 13 | 18 | 20 | ab 44,50 € |
|
10021557 (5002005) |
6 | 10 | 14 | 25 | ab 47,56 € |
|
10021564 (5002008) |
10 | 15 | 20 | 25 | ab 48,50 € |
|
10021568 (5002010) |
12 | 17 | 22 | 25 | ab 49,50 € |
|
10220458 (5002067) |
4 | 6 | 8 | 25 | ab 50,88 € |
|
10021576 (5002016) |
16 | 22 | 28 | 25 | ab 53,00 € |
|
10021555 (5002068) |
4 | 7 | 10 | 30 | ab 58,31 € |
|
10021561 (5002007) |
8 | 13 | 18 | 30 | ab 58,31 € |
|
10021572 (5002012) |
14 | 20 | 25 | 33 | ab 59,19 € |
|
10021577 (5002017) |
16 | 22 | 28 | 33 | ab 59,19 € |
|
10021565 (5002009) |
10 | 15 | 20 | 36 | ab 61,06 € |
|
10021583 (5002020) |
18 | 24 | 32 | 33 | ab 62,25 € |
|
10021586 (5002023) |
19 | 25 | 32 | 33 | ab 62,25 € |
|
10021589 (5002026) |
20 | 26 | 32 | 33 | ab 62,25 € |
|
10021574 (5002014) |
15 | 21 | 25 | 33 | ab 63,63 € |
|
10021569 (5002011) |
12 | 17 | 22 | 36 | ab 64,50 € |
|
10021581 (5002082) |
18 | 24 | 30 | 42 | ab 65,38 € |
|
10021590 (5002027) |
20 | 26 | 32 | 42 | ab 65,38 € |
|
10021558 (5002071) |
6 | 10 | 14 | 40 | ab 66,00 € |
|
10021573 (5002013) |
14 | 20 | 25 | 45 | ab 70,75 € |
|
10021575 (5002015) |
15 | 21 | 25 | 45 | ab 70,75 € |
|
10021578 (5002018) |
16 | 22 | 28 | 45 | ab 70,75 € |
|
10021562 (5002073) |
8 | 13 | 18 | 40 | ab 71,75 € |
|
10021584 (5002021) |
18 | 24 | 32 | 56 | ab 76,88 € |
|
10021587 (5002024) |
19 | 25 | 32 | 56 | ab 76,88 € |
|
10021591 (5002028) |
20 | 26 | 32 | 56 | ab 76,88 € |
|
10021566 (5002075) |
10 | 15 | 20 | 50 | ab 80,38 € |
|
10021594 (5002030) |
24 | 30 | 38 | 45 | ab 81,13 € |
|
10021598 (5002034) |
25 | 31 | 38 | 45 | ab 81,13 € |
|
10021582 (5002083) |
18 | 24 | 30 | 56 | ab 81,25 € |
|
10021570 (5002077) |
12 | 17 | 22 | 50 | ab 82,25 € |
|
10021585 (5002022) |
18 | 24 | 32 | 64 | ab 84,38 € |
|
10021588 (5002025) |
19 | 25 | 32 | 64 | ab 84,38 € |
|
10021592 (5002029) |
20 | 26 | 32 | 64 | ab 84,38 € |
|
10021579 (5002019) |
16 | 22 | 28 | 60 | ab 88,75 € |
|
10021559 (5002072) |
6 | 10 | 14 | 60 | ab 94,88 € |
|
10021603 (5002038) |
30 | 38 | 48 | 50 | ab 94,88 € |
|
10021606 (5002041) |
32 | 40 | 48 | 50 | ab 94,88 € |
|
10021595 (5002031) |
24 | 30 | 38 | 63 | ab 97,00 € |
|
10021599 (5002035) |
25 | 31 | 38 | 63 | ab 97,00 € |
|
10021563 (5002074) |
8 | 13 | 18 | 65 | ab 105,25 € |
|
10021596 (5002032) |
24 | 30 | 38 | 70 | ab 105,25 € |
|
10021600 (5002036) |
25 | 31 | 38 | 70 | ab 105,25 € |
|
10021607 (5002042) |
32 | 40 | 48 | 63 | ab 109,00 € |
|
10021567 (5002076) |
10 | 15 | 20 | 70 | ab 113,50 € |
|
10021571 (5002078) |
12 | 17 | 22 | 75 | ab 117,38 € |
|
10021597 (5002033) |
24 | 30 | 38 | 79 | ab 119,88 € |
|
10021601 (5002037) |
25 | 31 | 38 | 79 | ab 119,88 € |
|
10021604 (5002039) |
30 | 38 | 48 | 75 | ab 125,00 € |
|
10021608 (5002043) |
32 | 40 | 48 | 75 | ab 125,00 € |
|
10021611 (5002045) |
40 | 48 | 60 | 63 | ab 136,13 € |
|
10021580 (5002081) |
16 | 22 | 28 | 92 | ab 142,13 € |
|
10021612 (5002046) |
40 | 48 | 60 | 80 | ab 149,00 € |
|
10021617 (5002051) |
42 | 50 | 60 | 80 | ab 149,00 € |
|
10021605 (5002040) |
30 | 38 | 48 | 90 | ab 151,63 € |
|
10021609 (5002044) |
32 | 40 | 48 | 90 | ab 151,63 € |
|
10021613 (5002047) |
40 | 48 | 60 | 90 | ab 159,00 € |
|
10021614 (5002048) |
40 | 48 | 60 | 96 | ab 165,00 € |
|
10021618 (5002053) |
42 | 50 | 60 | 96 | ab 165,00 € |
|
10021593 (5002088) |
20 | 26 | 32 | 112 | ab 166,00 € |
|
10021619 (5002054) |
50 | 60 | 72 | 80 | ab 187,38 € |
|
10021621 (5002057) |
52 | 62 | 72 | 80 | ab 187,38 € |
|
10021615 (5002049) |
40 | 48 | 60 | 120 | ab 204,38 € |
|
10021620 (5002055) |
50 | 60 | 72 | 100 | ab 208,50 € |
|
10021622 (5002058) |
52 | 62 | 72 | 100 | ab 208,50 € |
|
10021602 (5002089) |
25 | 31 | 38 | 132 | ab 243,75 € |
|
10021616 (5002091) |
40 | 48 | 60 | 172 | ab 291,13 € |
|
10021610 (5002090) |
32 | 40 | 48 | 145 | ab 305,75 € |
|
10021623 (5002060) |
63 | 73 | 90 | 125 | ab 371,88 € |
|
10021624 (5002062) |
80 | 92 | 120 | 140 | ab 585,88 € |
|
10021625 (5002063) |
100 | 112 | 140 | 160 | ab 783,63 € |
|
10230416 (dw = 32; dB = 48; l1 = 148; d1 = 40) |
32 | 40 | 48 | 148 | Auf Anfrage |
|
10296064 (dw = 32; dB = 48n4; l1 = 28; d1 = 40) |
32 | 40 | 48 | 148 | Auf Anfrage |
|
10296731 (dw = 32; dB = 48; l1 = 154; d1 = 40) |
32 | 40 | 48 | 154 | Auf Anfrage |
