Produktnummer:
10115494
Hersteller:
Norelem

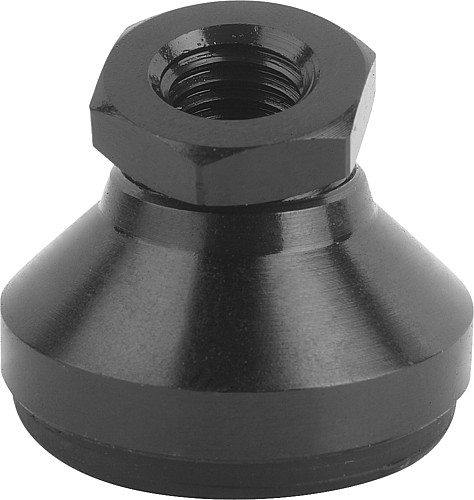

Norelem 07144-410 GELENKTELLER FORM G, D1=M10, D2=32
Belastbarkeit max. kN (nur bei statischer Belastung):
12
D1:
M10
D2:
32
Form:
G
H1:
22
H2:
5
SW:
17
T:
10

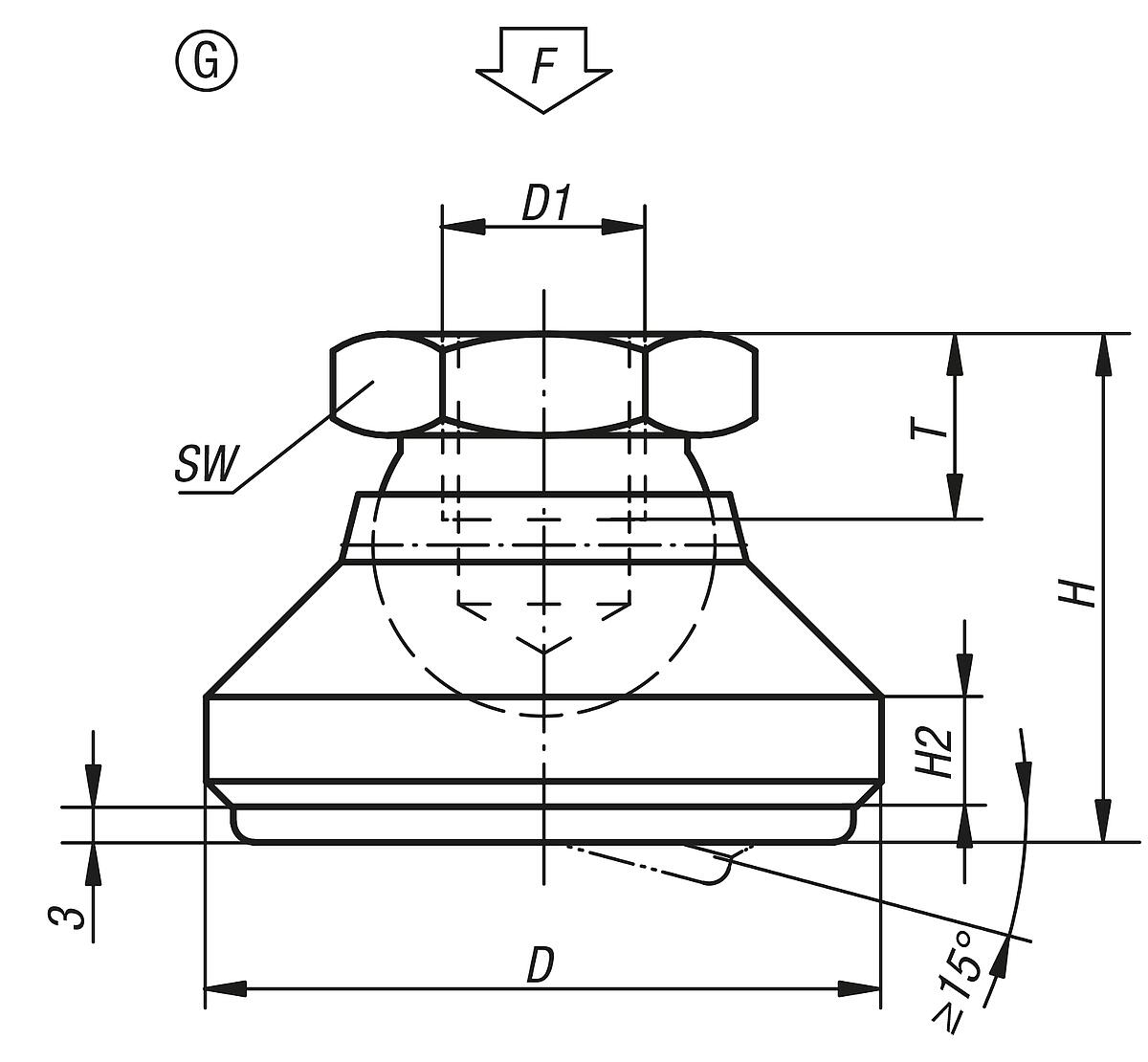

NLM 07144_G Gelenkteller Form G
Beschreibung
Werkstoff, Ausführung:

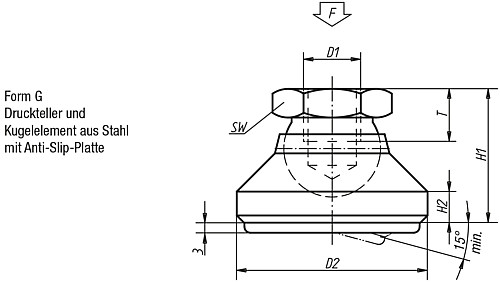

Form G: Druckteller Vergütungsstahl, Kugelelement Automatenstahl einsatzgehärtet, brüniert.
Anti-Slip-Platte thermoplastisches Elastomer.
Hinweis:
Die Anti-Slip-Platte absorbiert Vibrationen und verhindert ein Verrutschen des Gelenktellers.
Form G: Druckteller Vergütungsstahl, Kugelelement Automatenstahl einsatzgehärtet, brüniert.
Anti-Slip-Platte thermoplastisches Elastomer.
Hinweis:
Die Anti-Slip-Platte absorbiert Vibrationen und verhindert ein Verrutschen des Gelenktellers.
Eigenschaften
| Belastbarkeit max. kN (nur bei statischer Belastung): | 12 |
|---|---|
| D1: | M10 |
| D2: | 32 |
| Form: | G |
| H1: | 22 |
| H2: | 5 |
| SW: | 17 |
| T: | 10 |
Dokumente
1
| Variante | SW | D1 | T | D2 | H1 | H2 | Form | Belastbarkeit max. kN (nur bei statischer Belastung) | Preis |
|---|---|---|---|---|---|---|---|---|---|
|
10115495 (07144-412) |
19 | M12 | 12 | 40 | 26 | 6 | G | 17 | ab 18,81 € |
|
10115494 (07144-410) |
17 | M10 | 10 | 32 | 22 | 5 | G | 12 | ab 24,35 € |
|
10115496 (07144-416) |
24 | M16 | 14 | 50 | 32 | 7 | G | 20 | ab 28,18 € |
|
10115497 (07144-420) |
30 | M20 | 18 | 60 | 42 | 8 | G | 24 | ab 33,59 € |
