Produktnummer:
10134062
Herstellernummer:
27632-161
Hersteller:
Norelem

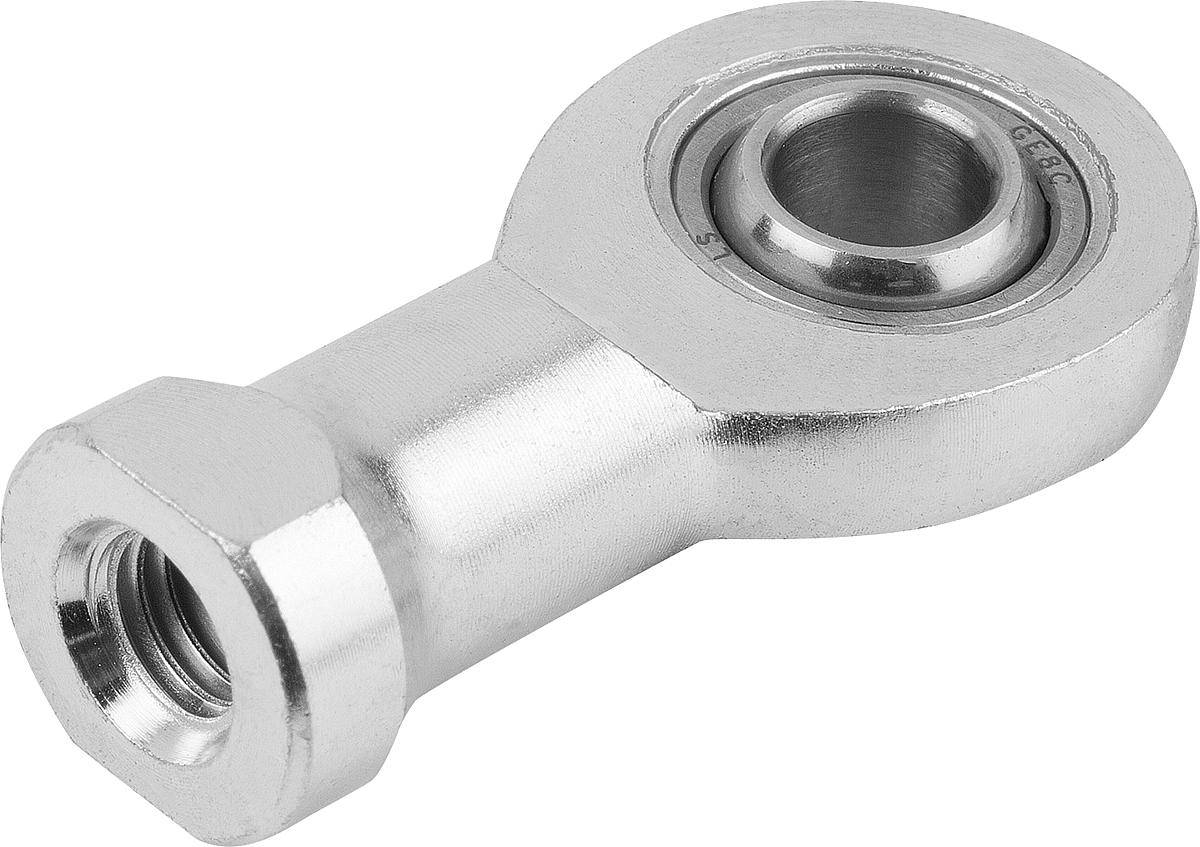

Norelem 27632-161 GELENKKOPF M. GLEITLAGERUNG LINKS, D=17H7
A:
67
Ausführung:
Linksgewinde
B:
46
B1:
10
D1:
M16
Tragzahlen dynamisch kN:
22
Tragzahlen statisch kN:
45
Produktnummer:
10134062
NLM 27632 Gelenkköpfe mit Gleitlagerung Innengewinde, schmale Ausführung
Beschreibung
Werkstoff:
Gehäuse Größe (D) 6-10 Automatenstahl gedreht, ab Größe (D) 12 Vergütungsstahl geschmiedet. Gelenkkugel Wälzlagerstahl gehärtet, geschliffen, poliert und hartverchromt. Lagerschale Wälzlagerstahl mit eingeklebtem PTFE-Gewebe.
Ausführung:
verzinkt.
Bestellbeispiel:
nlm 27632-12
Hinweis:
Die Gleitlagerung der Gelenkköpfe ist wartungsfrei.
Die Anschlussmaße entsprechen DIN 648 Formreihe E.
Gehäuse Größe (D) 6-10 Automatenstahl gedreht, ab Größe (D) 12 Vergütungsstahl geschmiedet. Gelenkkugel Wälzlagerstahl gehärtet, geschliffen, poliert und hartverchromt. Lagerschale Wälzlagerstahl mit eingeklebtem PTFE-Gewebe.
Ausführung:
verzinkt.
Bestellbeispiel:
nlm 27632-12
Hinweis:
Die Gleitlagerung der Gelenkköpfe ist wartungsfrei.
Die Anschlussmaße entsprechen DIN 648 Formreihe E.

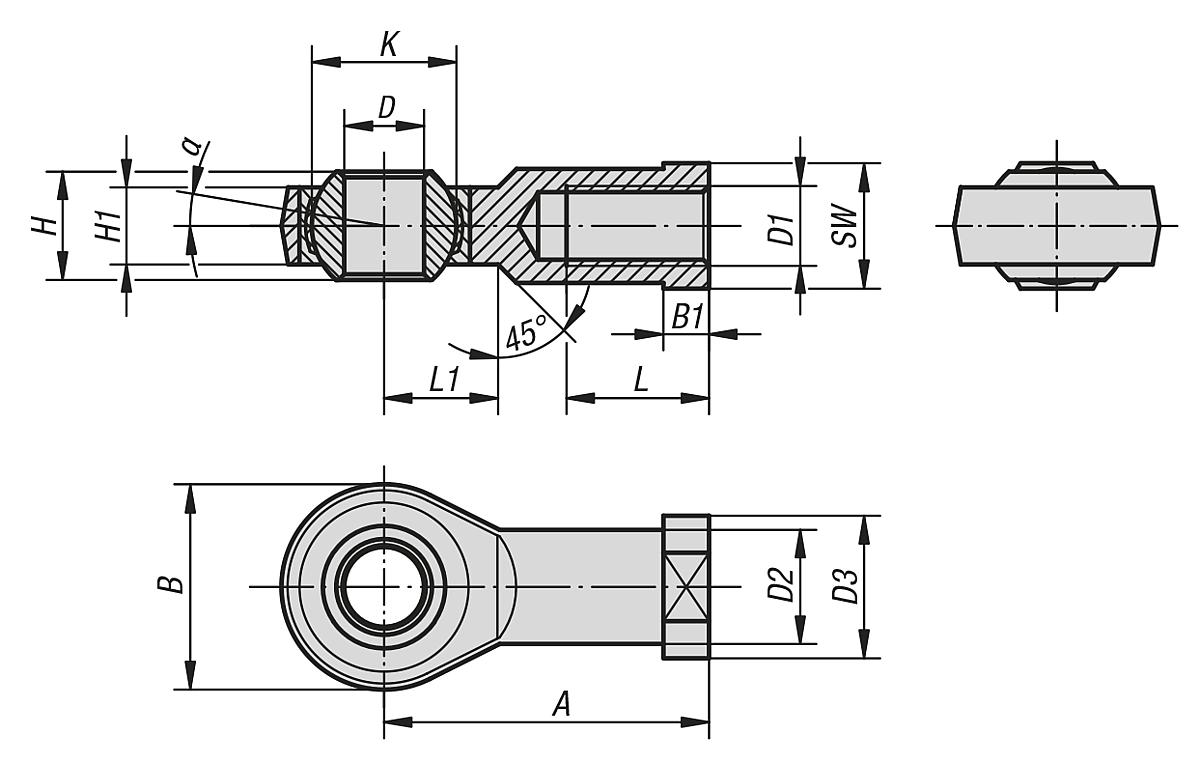

Eigenschaften
| A: | 67 |
|---|---|
| Ausführung: | Linksgewinde |
| B: | 46 |
| B1: | 10 |
| D: | 17 -0,008 |
| D1: | M16 |
| D2: | 24 |
| D3: | 30 |
| Gewicht ca. kg: | 0,280 |
| H: | 14 |
| H1: | 11 |
| K: | 25 |
| L: | 33 |
| L1: | 20 |
| SW: | 27 |
| Sortierung: | 7 |
| Tragzahlen dynamisch kN: | 22 |
| Tragzahlen statisch kN: | 45 |
| a: | - |
Dokumente
1
| Variante | A | B | D1 | Ausführung | B1 | Tragzahlen dynamisch kN | Tragzahlen statisch kN | Preis |
|---|---|---|---|---|---|---|---|---|
|
10134048 (27632-06) |
30 | 20 | M6 | Rechtsgewinde | 5 | 3,6 | 8,2 | ab 15,53 € |
|
10134056 (27632-061) |
30 | 20 | M6 | Linksgewinde | 5 | 3,6 | 8,2 | ab 15,53 € |
|
10134049 (27632-08) |
36 | 24 | M8 | Rechtsgewinde | 5 | 5,8 | 12,9 | ab 16,92 € |
|
10134057 (27632-081) |
36 | 24 | M8 | Linksgewinde | 5 | 5,8 | 12,9 | ab 16,92 € |
|
10134050 (27632-10) |
28 | M10 | Rechtsgewinde | 6,5 | 8,6 | 17,6 | ab 19,67 € | |
|
10134051 (27632-10125) |
28 | M10x1,25 | Rechtsgewinde | 6,5 | 8,6 | 17,6 | ab 19,67 € | |
|
10134058 (27632-101) |
28 | M10 | Linksgewinde | 6,5 | 8,6 | 17,6 | ab 19,67 € | |
|
10134059 (27632-101251) |
28 | M10x1,25 | Linksgewinde | 6,5 | 8,6 | 17,6 | ab 19,67 € | |
|
10134052 (27632-12) |
50 | 34 | M12 | Rechtsgewinde | 6,5 | 11,4 | 24,5 | ab 23,23 € |
|
10134053 (27632-12125) |
50 | 34 | M12x1,25 | Rechtsgewinde | 6,5 | 11,4 | 24,5 | ab 23,23 € |
|
10134060 (27632-121) |
50 | 34 | M12 | Linksgewinde | 6,5 | 11,4 | 24,5 | ab 23,23 € |
|
10134061 (27632-121251) |
50 | 34 | M12x1,25 | Linksgewinde | 6,5 | 11,4 | 24,5 | ab 23,23 € |
|
10134054 (27632-16) |
67 | 46 | M16 | Rechtsgewinde | 10 | 22 | 45 | ab 36,26 € |
|
10134062 (27632-161) |
67 | 46 | M16 | Linksgewinde | 10 | 22 | 45 | ab 36,26 € |
|
10134055 (27632-20) |
53 | M20x1,5 | Rechtsgewinde | 10 | 31,5 | 60 | ab 43,66 € | |
|
10134063 (27632-201) |
53 | M20x1,5 | Linksgewinde | 10 | 31,5 | 60 | ab 43,66 € |
