Produktnummer:
10136157
Herstellernummer:
28028-1211615
Hersteller:
Norelem

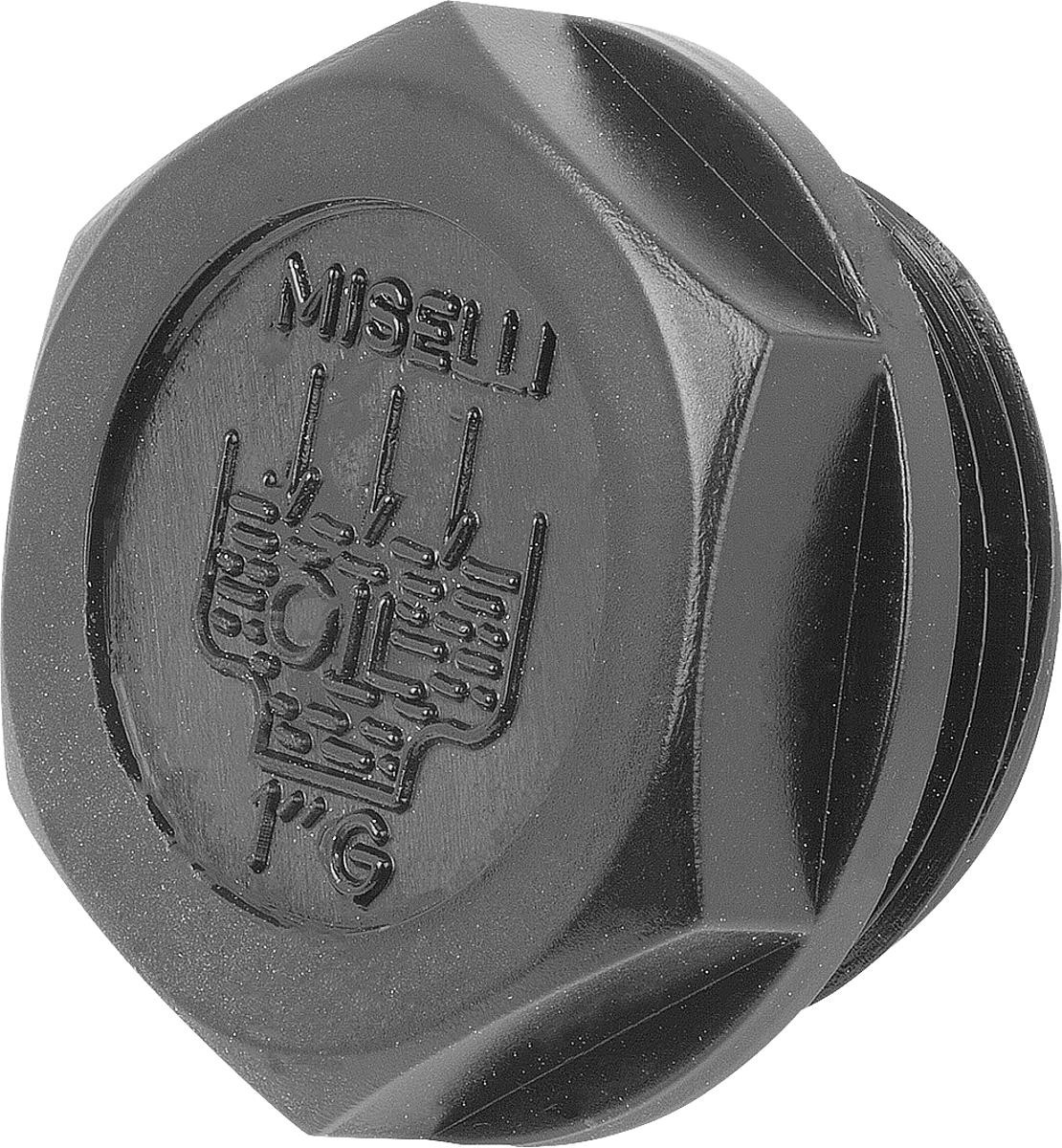

Norelem 28028-1211615 SECHSKANT VERSCHLUSSSCHRAUBEN, D=21, D1=M16X1,5, FORM A
Anziehdrehmoment max. Nm:
6
D:
21
D1:
M16x1,5
Form:
A
Gewicht ca. kg:
0,004
L:
7,5
L1:
10
SW:
18
Produktnummer:
10136157

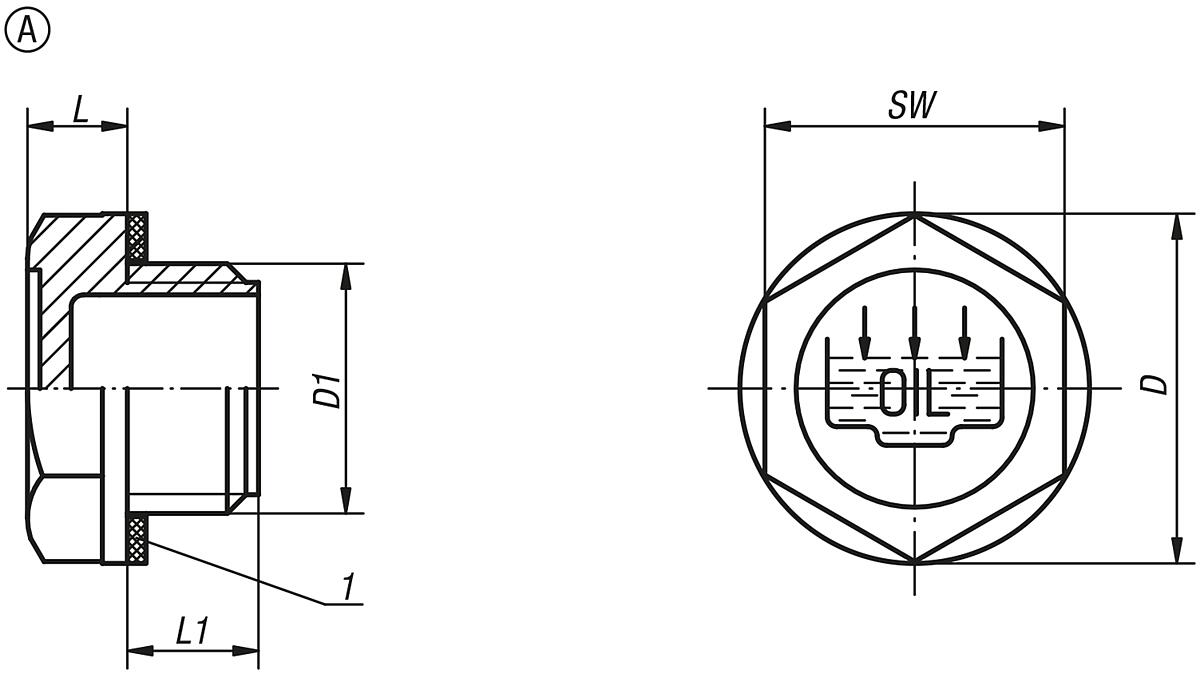

NLM 28028_A Sechskant Verschlussschrauben Form A
Beschreibung
Werkstoff:
Thermoplast, Polyamid 66.
Ausführung:
schwarz, Flachdichtung asbestfrei.
Hinweis:
Temperaturbeständig bei Öl bis 100 °C, bei Wasser bis 70 °C.
Thermoplast, Polyamid 66.
Ausführung:
schwarz, Flachdichtung asbestfrei.
Hinweis:
Temperaturbeständig bei Öl bis 100 °C, bei Wasser bis 70 °C.
Eigenschaften
| Anziehdrehmoment max. Nm: | 6 |
|---|---|
| D: | 21 |
| D1: | M16x1,5 |
| Form: | A |
| Gewicht ca. kg: | 0,004 |
| L: | 7,5 |
| L1: | 10 |
| SW: | 18 |
Dokumente
1
| Variante | Form | SW | D1 | L | Gewicht ca. kg | L1 | D | Anziehdrehmoment max. Nm | Preis |
|---|---|---|---|---|---|---|---|---|---|
|
10136148 (28028-119014) |
A | 17 | G 1/4 | 7 | 0,002 | 9 | 19,5 | 5 | ab 0,43 € |
|
10136156 (28028-1191415) |
A | 17 | M14x1,5 | 7 | 0,002 | 9 | 19,5 | 5 | ab 0,43 € |
|
10136149 (28028-122038) |
A | 18 | G 3/8 | 7,5 | 0,004 | 10 | 22 | 8 | ab 0,50 € |
|
10136157 (28028-1211615) |
A | 18 | M16x1,5 | 7,5 | 0,004 | 10 | 21 | 6 | ab 0,50 € |
|
10136158 (28028-1261815) |
A | 21 | M18x1,5 | 7,5 | 0,004 | 10 | 26 | 7 | ab 0,54 € |
|
10136150 (28028-128012) |
A | 24 | G 1/2 | 7,5 | 0,006 | 11 | 28 | 9 | ab 0,61 € |
|
10136159 (28028-1282015) |
A | 24 | M20x1,5 | 8 | 0,006 | 10 | 28 | 8 | ab 0,61 € |
|
10136160 (28028-1282215) |
A | 24 | M22x1,5 | 8 | 0,006 | 11 | 28 | 10 | ab 0,61 € |
|
10136151 (28028-134034) |
A | 30 | G 3/4 | 9 | 0,008 | 11 | 34 | 11 | ab 0,83 € |
|
10136152 (28028-142100) |
A | 35 | G 1 | 10,5 | 0,018 | 12 | 42 | - | ab 1,16 € |
|
10136153 (28028-151114) |
A | 42 | G 1 1/4 | 12 | 0,026 | 13,5 | 51 | - | ab 1,70 € |
|
10136154 (28028-158112) |
A | 50 | G 1 1/2 | 10 | 0,030 | 14,5 | 58 | - | ab 1,89 € |
|
10136155 (28028-174200) |
A | 64 | G 2 | 13,5 | 0,054 | 16 | 74 | - | ab 3,19 € |
